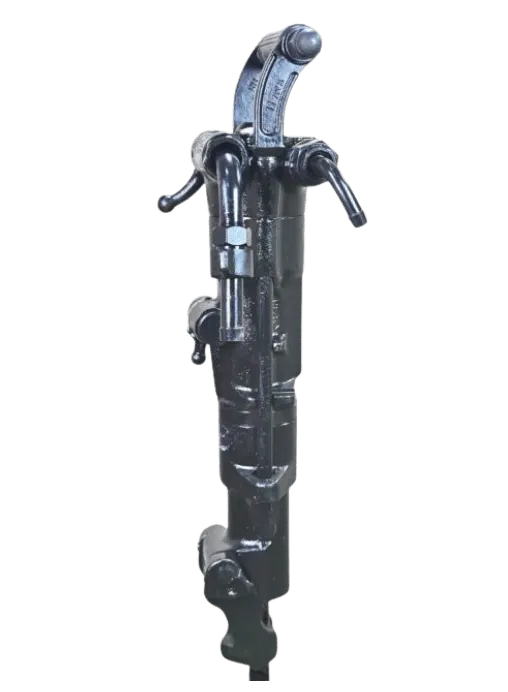

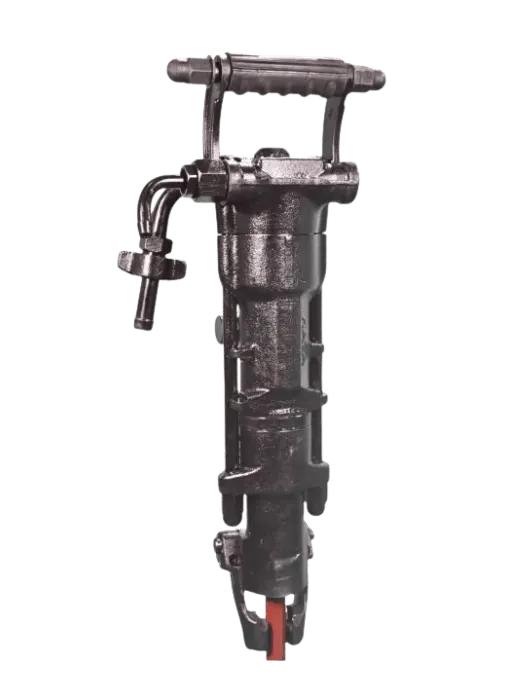

RMT 656W Jackleg Drill

Jackleg Drill RMT 656W - Underground Rock Drill

RMT rock drills are a combination of high performance and reliability. It has low spare parts consumption, so maintenance cost is at a minimum. Though simple to operate, they are robust, and even with low air consumption, they offer a high impact. Along with their pusher legs, they have proven to be a cost-saving drilling unit without compromising on production.

Model #	RMT 656W
Weight	22 kg	48.5 lb
Length	630 mm	24.8”
Hole range	27 - 41 mm	1" 1.63"
Hole depth	6 meters	19.6 ft
Air pressure	6 bar	87 psi
Air consump	48 l/s	102 cfm
Blows per minute	2040
Piston dia	65 mm	2.56"
Piston stroke	60 mm	2.36”
Air inlet	19 mm	¾" BSP
Shank size - 8311 0303 45	22 x 108 mm	⅞" x 4¼"
Manufacturer	RMT
