Spare Parts for RMT 656W Jackleg Drill

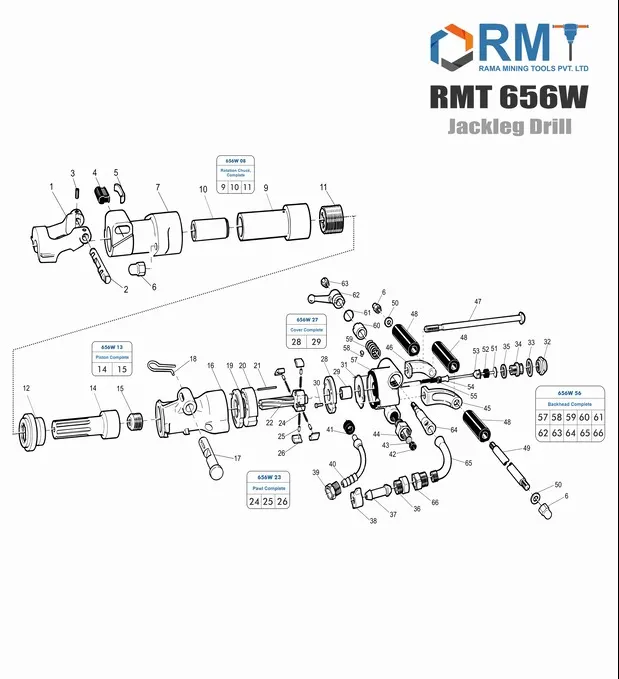

RMT 656W Jackleg Drill
RMT 656W Jackleg Drill
Drill Steel Retainer 22 mm
RMT Part #
656W 01
Ref Part #
3121 0851 00
Drill Steel Retainer 22 mm
Retainer Pin
RMT Part #
656W 02
Ref Part #
3121 0852 00
Retainer Pin
Tension Pin
RMT Part #
656W 03
Ref Part #
0108 3392 00
Tension Pin
Rubber Buffer
RMT Part #
656W 04
Ref Part #
3121 0030 00
Rubber Buffer
Buffer Plate
RMT Part #
656W 05
Ref Part #
3121 0029 00
Buffer Plate
Side Bolt Nut
RMT Part #
656W 06
Ref Part #
3121 0292 00
Side Bolt Nut
Fronthead
RMT Part #
656W 07
Ref Part #
3121 0342 00
Fronthead
Rotation Chuck, Comp. 9-11
RMT Part #
656W 08
Ref Part #
3121 0769 80
Rotation Chuck, Comp. 9-11
Rotation Chuck
RMT Part #
656W 09
Ref Part #
-
Rotation Chuck
Rotation Chuck Bushing
RMT Part #
656W 10
Ref Part #
3121 0023 00
Rotation Chuck Bushing
Chuck Nut
RMT Part #
656W 11
Ref Part #
3115 1221 00
Chuck Nut
Intermediate Part
RMT Part #
656W 12
Ref Part #
3121 0339 00
Intermediate Part
Piston, Complete - 14,15
RMT Part #
656W 13
Ref Part #
3100 8474 80
Piston, Complete - 14,15
Piston
RMT Part #
656W 14
Ref Part #
-
Piston
Rifle Nut
RMT Part #
656W 15
Ref Part #
3100 9299 05
Rifle Nut
Cylinder
RMT Part #
656W 16
Ref Part #
3121 0337 00
Cylinder
Outlet Valve
RMT Part #
656W 17
Ref Part #
3115 1778 00
Outlet Valve
Throttle Lever
RMT Part #
656W 18
Ref Part #
3115 1779 00
Throttle Lever
Guide Disc
RMT Part #
656W 19
Ref Part #
3106 8683 00
Guide Disc
Ratchet Box
RMT Part #
656W20
Ref Part #
3106 8682 00
Ratchet Box
Guide Pin
RMT Part #
656W 21
Ref Part #
0108 1336 00
Guide Pin
Rifle Bar
RMT Part #
656W 22
Ref Part #
3101 3154 00
Rifle Bar
Pawl, Complete (24-26)
RMT Part #
656W 23
Ref Part #
3115 9200 90
Pawl, Complete (24-26)
Pressure Spring
RMT Part #
656W 24
Ref Part #
3100 9140 02
Pressure Spring
Pawl Pin
RMT Part #
656W 25
Ref Part #
3100 9641 01
Pawl Pin
Pawl
RMT Part #
656W 26
Ref Part #
3101 3159 00
Pawl
Cover, Complete (28,29)
RMT Part #
656W 27
Ref Part #
3106 8680 80
Cover, Complete (28,29)
Cover
RMT Part #
656W 28
Ref Part #
--
Cover
Bushing
RMT Part #
656W 29
Ref Part #
3100 9894 01
Bushing
Guide Pin
RMT Part #
656W 30
Ref Part #
3100 9665 00
Guide Pin
Main Valve
RMT Part #
656W 31
Ref Part #
3106 8681 00
Main Valve
Protecting Nut
RMT Part #
656W 32
Ref Part #
3100 9643 01
Protecting Nut
Seal Washer
RMT Part #
656W 33
Ref Part #
3101 4146 00
Seal Washer
Adapter
RMT Part #
656W 34
Ref Part #
3100 9623 01
Adapter
Seal Washer
RMT Part #
656W 35
Ref Part #
3000 9341 02
Seal Washer
Hexagon Nipple
RMT Part #
656W 36
Ref Part #
9000 0350 00
Hexagon Nipple
Hose Nipple, Air
RMT Part #
656W 37
Ref Part #
9000 0325 00
Hose Nipple, Air
Wing Nut
RMT Part #
656W 38
Ref Part #
9000 0338 00
Wing Nut
Adapter
RMT Part #
656W 39
Ref Part #
3100 9652 00
Adapter
Hose Nipple - Water
RMT Part #
656W 40
Ref Part #
3100 9654 00
Hose Nipple - Water
Rubber Packing
RMT Part #
656W 41
Ref Part #
3100 9653 00
Rubber Packing
Packing
RMT Part #
656W 42
Ref Part #
3121 0012 00
Packing
Strainer
RMT Part #
656W 43
Ref Part #
3121 0011 00
Strainer
Adapter
RMT Part #
656W 44
Ref Part #
3121 0010 00
Adapter
Handle Bracket - Left
RMT Part #
656W 45
Ref Part #
3121 0344 00
Handle Bracket - Left
Handle Bracket - Right
RMT Part #
656W 46
Ref Part #
3121 0345 00
Handle Bracket - Right
Side Bolt
RMT Part #
656W 47
Ref Part #
3121 0343 00
Side Bolt
Handle Grip
RMT Part #
656W 48
Ref Part #
3101 1372 00
Handle Grip
Stud
RMT Part #
656W 49
Ref Part #
3121 0360 00
Stud
Washer
RMT Part #
656W 50
Ref Part #
3000 0119 01
Washer
Water Flushing Tube
RMT Part #
656W 51
Ref Part #
3121 0588 00
Water Flushing Tube
Rubber Packing
RMT Part #
656W 52
Ref Part #
3100 9646 00
Rubber Packing
Guide Ring
RMT Part #
656W 53
Ref Part #
3121 0776 00
Guide Ring
Air Flushing Tube
RMT Part #
656W 54
Ref Part #
3115 0028 00
Air Flushing Tube
Rubber Packing
RMT Part #
656W 55
Ref Part #
3000 0121 00
Rubber Packing
Backhead, Complete (57-66)
RMT Part #
656W 56
Ref Part #
3115 0568 80
Backhead, Complete (57-66)
Backhead
RMT Part #
656W 57
Ref Part #
--
Backhead
Pin
RMT Part #
656W 58
Ref Part #
3121 0329 00
Pin
Spring
RMT Part #
656W 59
Ref Part #
3121 5000 51
Spring
Pawl Washer
RMT Part #
656W 60
Ref Part #
3121 2128 00
Pawl Washer
O Ring
RMT Part #
656W 61
Ref Part #
0663 2128 00
O Ring
Conical Lever
RMT Part #
656W 62
Ref Part #
3115 0573 00
Conical Lever
Conical Nut
RMT Part #
656W 63
Ref Part #
3006 8734 00
Conical Nut
Throttle Valve
RMT Part #
656W 64
Ref Part #
3121 0331 00
Throttle Valve
Elbow
RMT Part #
656W 65
Ref Part #
3101 1371 00
Elbow
Adapter
RMT Part #
656W 66
Ref Part #
3101 1370 00
Adapter
