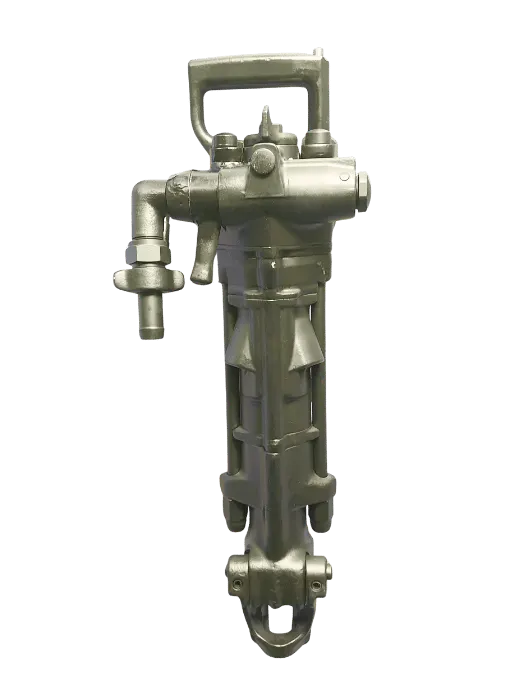

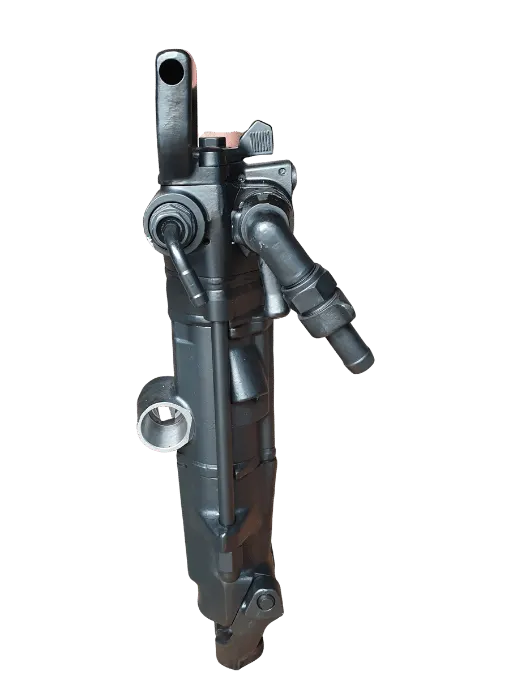

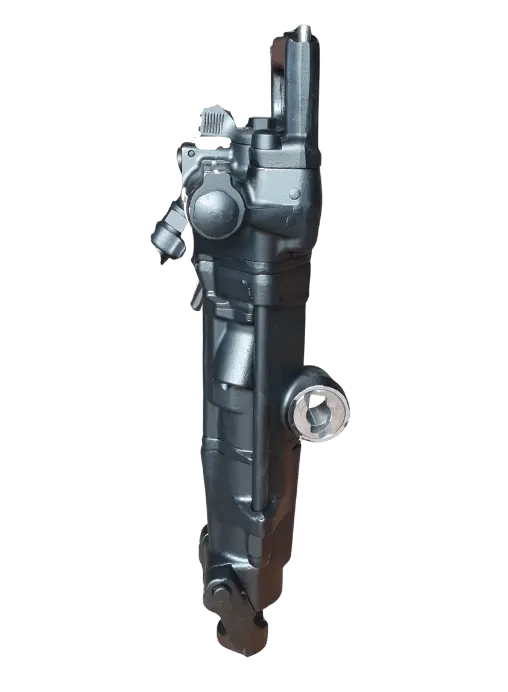

RMT 16W - Jackleg Drill

This tool has been discontinued, you can switch to its alternative—the RMT 3/30 JLD.
RMT rock drills are a combination of high performance and reliability. It has low spare parts consumption so maintenance cost is at its minimum. Though simple to operate, they are robust and even with low air consumption, they offer a high impact. Along with their pusher legs, they are proved to be a cost-saving drilling unit without compromising on production.

Model #	RMT 16W
Weight	28.5 kg	63 lb
Length	710 mm	28"
Hole range	27 - 41 mm	1 " - 1.63 "
Air pressure	6 bar	87 psi
Air consumption	69 l/s	146 cfm
Blows per minute	2340
Piston dia	70 mm	2¾"
Piston stroke	55 mm	2.17"
Air Inlet	25 mm	1" BSP
Shank size - 8311 0401 10	22 x 108 mm	⅞" x 4¼"
Reference #	8311 0401 10
Manufacturer	RMT
