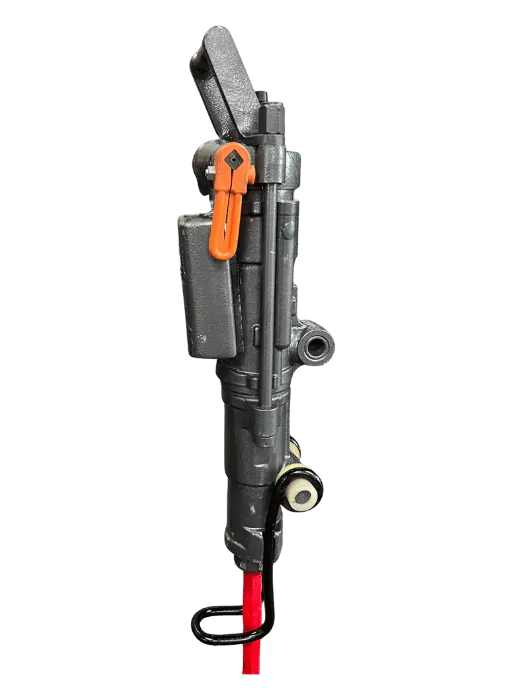

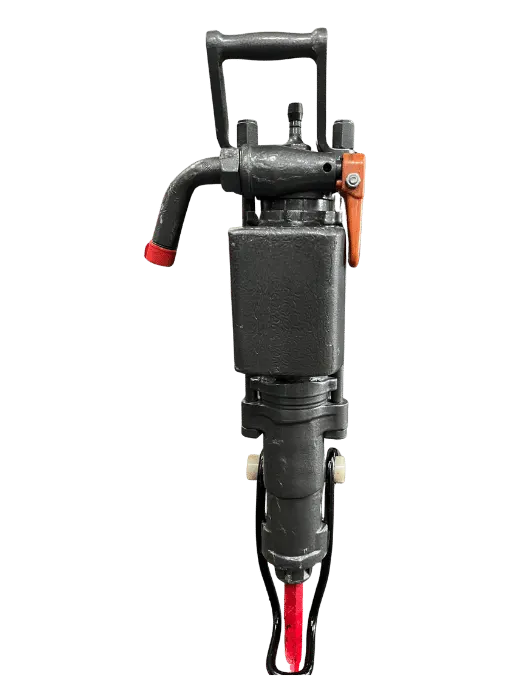

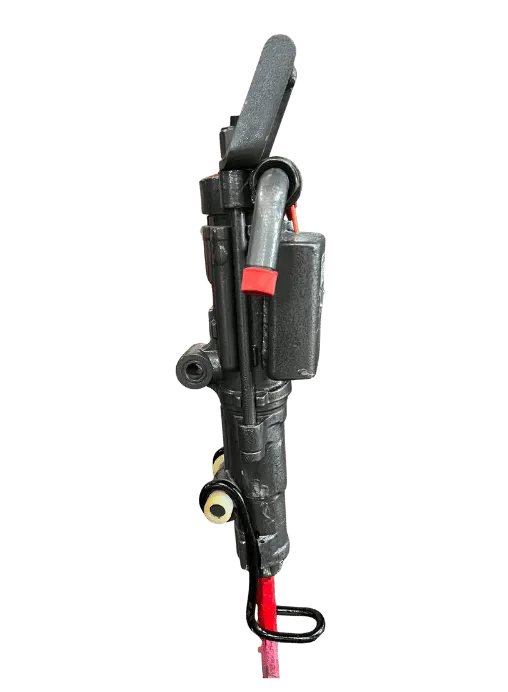

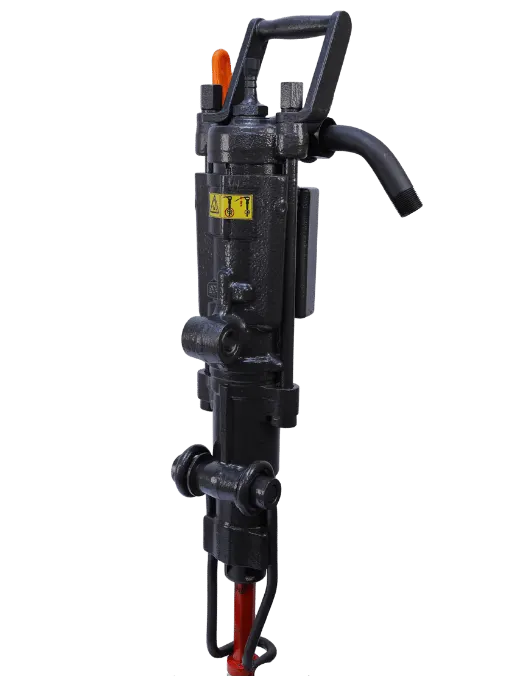

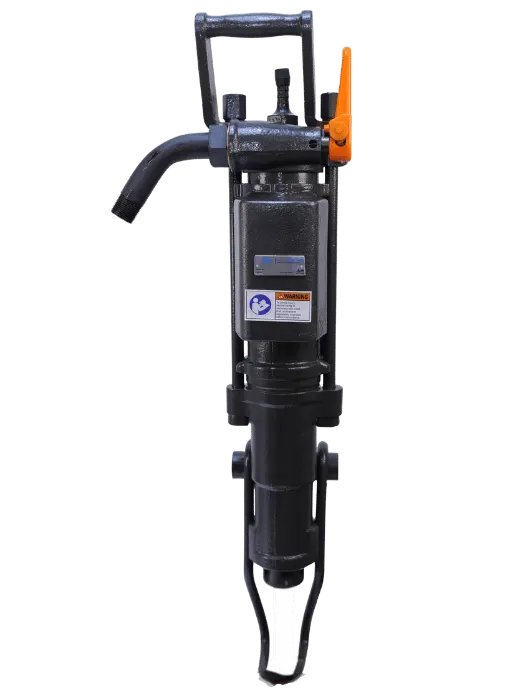

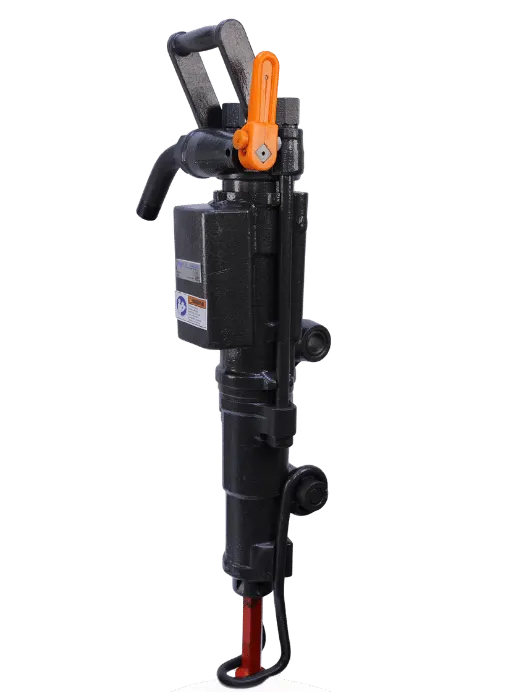

RMT S215 - Jackleg Drill

The S215 drill weighs 22.6 kg and delivers 2175 blows per minute. The mechanical drilling rate (penetration rate) of the SECO S215 typically ranges between 250 mm/min and 450 mm/min (approx. 10 to 18 inches per minute) under standard operational conditions.

Features of the RMT S215 Jackleg Drill

The RMT S215 is built to be simple, strong, and smart. Here's what makes it special:

• Lightweight Design: Weighing only 23 kg, it's easy to carry and control, even for long work hours.
• Perfect Shank Size: It uses a 22 x 108 mm shank, which means it fits perfectly with standard drill rods used in mining and construction worldwide.
• Air-Powered Performance: It runs on compressed air, so there's no need for electricity or fuel. This makes it safe to use in underground mines.
• Low Maintenance: The S215 is designed with fewer moving parts in comparison to the standard jackleg drills available in the market. Thus, it ensures less downtime of the machine.
• Comfortable to Use: The handle and body are shaped so your hands don't get tired easily, and you can also give enough force whenever required. The jackleg carries the complete weight of the drill; thus, you just have to guide the drill and give a bit of force whenever required.

This drill is perfect for making blast holes in mines, tunnels, and construction sites. It's also great for drilling in narrow spaces where big drilling machines cannot fit.

Why Select the RMT S215 Jackleg Drill?

When operating in low-height underground mining conditions, choosing the RMT S215 Jackleg Drill ensures an optimal balance between operator safety and aggressive penetration rate. Mine operators and procurement teams select the RMT S215 for several critical reasons:

1. Engineered for Narrow-Vein Precision
   • Compact and Lightweight: The drill weighs only 22.6 kg and its length is 730 mm, making it convenient for the drill operators to use and move the drill in narrow spaces in underground mines and tunnels.
   • Reduced Operator Fatigue: The lightweight build combined with an ergonomic pusher-leg setup dramatically reduces physical strain during extended shifts, boosting overall tonnage production per man-hour.
2. High Penetration Performance
   • Aggressive Percussion: Delivers a rapid impact rate of 2,175 blows per minute to effortlessly penetrate and make a hole even in very hard rocks.
   • Saves Compressed Air: It uses very little air to deliver maximum drilling power. This keeps your main air compressor from getting overloaded and allows you to use other pneumatic tools with the same compressor.
3. Rugged Durability & Low Total Cost of Ownership (TCO)
   • Premium Metallurgy: Built using high-wear alloy steels that resist corrosion and face-abrasion from wet underground drilling environments. This ensures that your tool gets a longer life span and requires less maintenance.
4. Seamless Global Parts Compatibility
   • 100% Interchangeable: Manufactured to strict standard dimensions, all core internal parts effortlessly interchange with existing standard SECO S215 configurations. Thus, with RMT S215, you don’t have to rely on RMT to supply the spares. You can use spares of any model of S215 available in your local market.
   • Standard Tooling Hookups: Uses standard 22 x 108 mm (⅞" x 4¼") hex shanks alongside standard ¾" BSP air and ½" BSP water connections.

Final Thoughts

The RMT S215 Jackleg Drill is a trusted friend for miners, builders, and engineers. It's light, strong, and easy to use. If you want a drill that makes tough jobs feel easy, the SECO S215 is the best option to select.

With Rama Mining Tools, you get the option and flexibility to select from a wide range of Jackleg Drills. If you are looking for other SECO range jackleg drills, you can check out the RMT 250 Jackleg Drill, which is equivalent to the Boart Loagyear Seco 250.

The range of aftermarket jackleg drills from RMT gives you the flexibility to select cost-effective drills which are 100% equivalent to the original models. The spare parts are also 100% interchangeable with the original.

If you want to buy original model, RMT offers you the Atlas Copco BBC 16W (8311 0401 10) and RH 6564W (8311 0302 02) Jaclgeg Drill.

Unsure which model fits your mine layout?
