Spare Parts for RMT S215 - Jackleg Drill

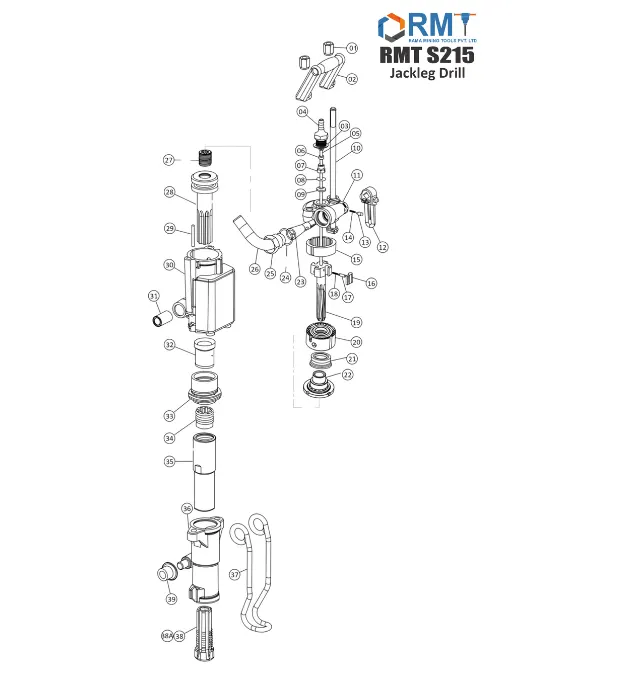

RMT S215 - Jackleg Drill
RMT S215 - Jackleg Drill
Side Rod Nut
RMT Part#
S215 01
Ref Part#
D2130
Side Rod Nut

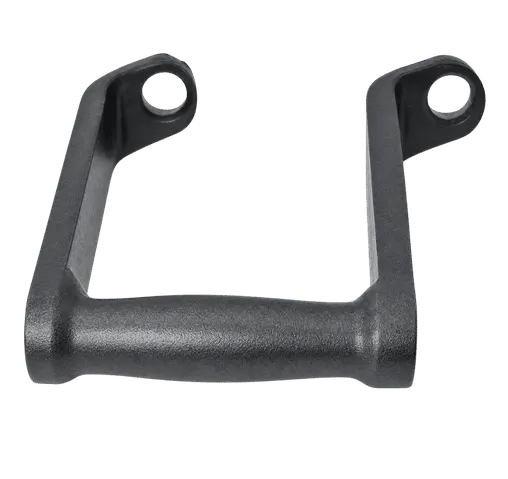

Spade Handle
RMT Part#
S215 02
Ref Part#
B2154-2
Spade Handle
Copper Washer
RMT Part#
S215 03
Ref Part#
-
Copper Washer

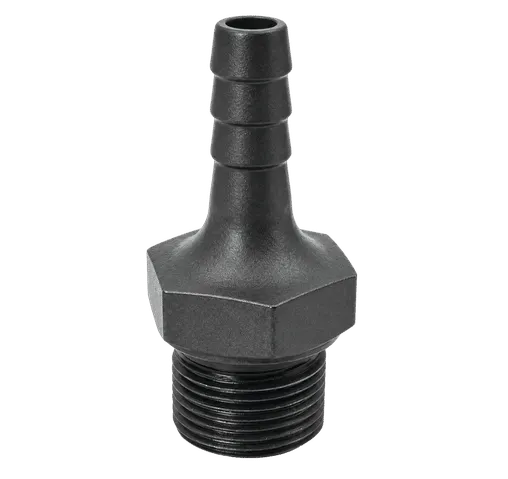

Backhead Spud-10mm thread
RMT Part#
S215 04
Ref Part#
HF-7860-231
Backhead Spud-10mm thread
Backhead Spud-12mm thread
S215 04A
S215 04A
Ref Part#
HF-7581-231
Backhead Spud-12mm thread
Water Tube
RMT Part #
S215 05
Ref Part #
S19-39
Water Tube
Water Tube Rubber Small
RMT Part#
S215 06
Ref Part #
S21-45
Water Tube Rubber Small
Water Tube Cap Screw
RMT Part #
S215 07
Ref Part #
S21-42
Water Tube Cap Screw
Thrust Washer
RMT Part #
S215 08
Ref Part #
S24-46
Thrust Washer
Water Tube Rubber Large
RMT Part #
S215 09
Ref Part #
-
Water Tube Rubber Large
Side Rod
RMT Part #
S215 10
Ref Part #
-
Side Rod

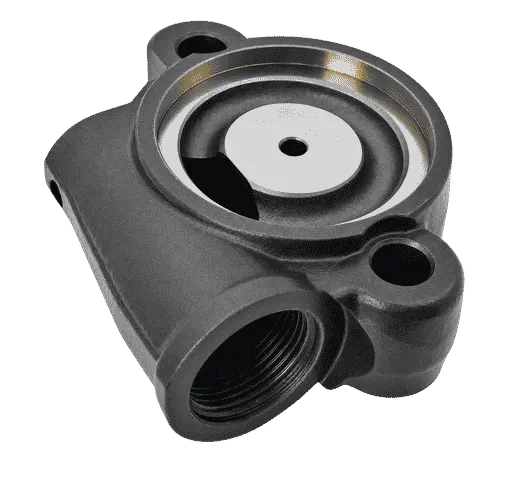

Backhead
RMT Part #
S215 11
Ref Part #
A1406
Backhead
Throttle Valve Handle (Plastic)
RMT Part #
S215 12
Ref Part #
S21-24P
Throttle Valve Handle (Plastic)
Throttle Valve Plunger
RMT Part #
S215 13
Ref Part #
S21-29
Throttle Valve Plunger
Throttle Valve Spring
RMT Part#
S215 14
Ref Part #
S21-30
Throttle Valve Spring
Ratchet Ring
RMT Part #
S215 15
Ref Part #
C2698L
Ratchet Ring
Pawl
RMT Part #
S215 16
Ref Part #
S21-33
Pawl
Pawl Plunger (Plastic)
RMT Part #
S215 17
Ref Part #
S21-34
Pawl Plunger (Plastic)

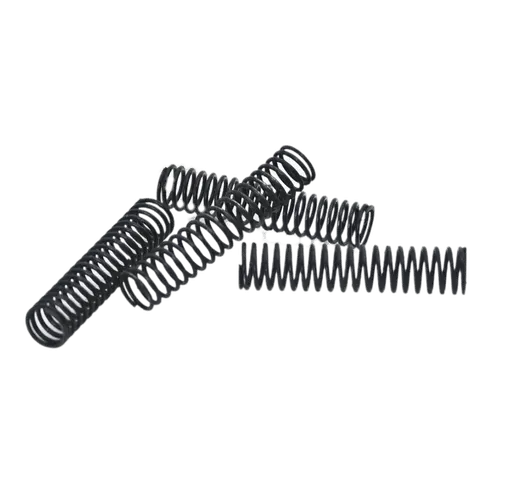

Pawl Plunger Spring
RMT Part #
S215 18
Ref Part #
D1611
Pawl Plunger Spring
Rifle Bar
RMT Part #
S215 19
Ref Part #
C2023L
Rifle Bar
Valve Box
RMT Part #
S215 20
Ref Part #
A1446A
Valve Box
Valve
RMT Part #
S215 21
Ref Part #
C2697A
Valve
Valve Plug
RMT Part #
S215 22
Ref Part #
B2108A
Valve Plug
Throttle Valve
RMT Part #
S215 23
Ref Part #
B2147
Throttle Valve
Copper Washer
RMT Part #
S215 24
Ref Part #
143-M10
Copper Washer

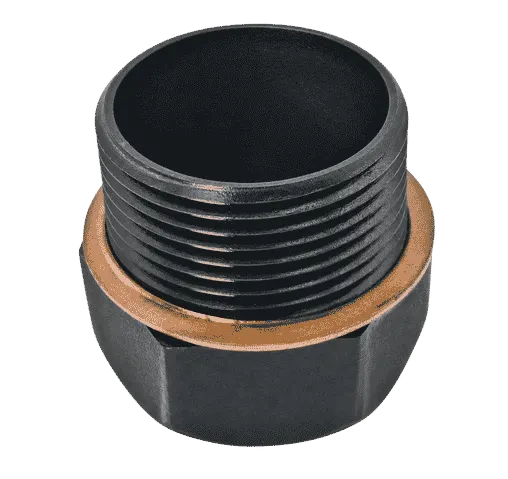

Air Stem Nut
RMT Part #
S215 25
Ref Part #
S21-38
Air Stem Nut
Air Bend
RMT Part #
S215 26
Ref Part #
-
Air Bend
Rifle Nut
RMT Part #
S215 27
Ref Part #
D1623
Rifle Nut
Piston
RMT Part #
S215 28
Ref Part #
B2107
Piston
Valve Box Locating Pin
RMT Part #
S215 29
Ref Part #
D2482
Valve Box Locating Pin

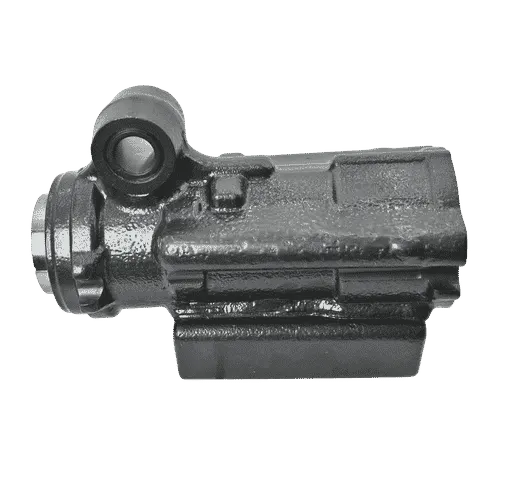

Muffled Cylinder
RMT Part #
S215 30
Ref Part #
A1404M
Muffled Cylinder
Cylinder Lug Bush
RMT Part #
S215 31
Ref Part #
C1101M
Cylinder Lug Bush
Front Cylinder Washer Liner
RMT Part #
S215 32
Ref Part #
C6521
Front Cylinder Washer Liner
Front Cylinder Washer
RMT Part #
S215 33
Ref Part #
B5474
Front Cylinder Washer
Chuck Nut
RMT Part #
S215 34
Ref Part #
S19-7
Chuck Nut
Chuck
RMT Part #
S215 35
Ref Part #
B2148
Chuck
Economy Fronthead
RMT Part #
S215 36
Ref Part #
-
Economy Fronthead
Steel Retainer
RMT Part#
S215 37
Ref Part#
B2798
Steel Retainer
Chuck Bush (22 mm)
RMT Part#
S215 38
Ref Part#
C2701
Chuck Bush (22 mm)
Chuck Bush (25 mm)
RMT Part #
S215 38A
Ref Part #
C2846
Chuck Bush (25 mm)
Steel Retainer Bush
RMT Part#
S215 39
Ref Part#
D2146A
Steel Retainer Bush
