RMT 25 (TH) - Wagon Drill

The Top Hammer version of RMT Wagon Drill is equipped with a very high performer pneumatic drifter “RMT 120F” which is the same as “BBC 120F Drifter”. The drifter comes with a Rifle Bar Rotation feature. With a quick conversion kit, Top Hammer Version can be converted to the DTH version of Wagon Drill. It is mostly used in Open Cast Machine with 5.1-meter long Feed Beam and Sand & Limestone mines with 4.2-meter long Feed Beam. It is also used in underground mines with a 2.5-meter long Feed Beam.
Wagon Drill
Wagon Drill
Model # RMT 25 (TH)
Version Top Hammer
Pneumatic Drifter RMT 120F | BBC 120F
Drilling Depth 20 - 40 meter (66 feet - 131 feet)
Hole Diameter 38 - 64 mm 1.5 - 2.51”
Drill Steel R32 / R38 / T38
Drill Steel Length 1.20 Meter, 2.50 Meter, 3 Meter
Air Consumption 400 cfm at 7 bar
Details of Feed and boom As below
Feed Type Chain Drive
Feed Beam Length 5430 mm (5.4 mtr), 4425 mm (4.4 mtr), 2825 mm (2.8 mtr)
Travel Length 3940 mm (3.9 mtr), 2200 mm (2.2 mtr), 1500 mm (1.5 mtr)
Feed Force 8kN 1.8 lb
Boom type Single section hand operated Hydraulic cylinder
Details of Carrier Details in attached brochure
Transport Dimensions Details in attached brochure

What is good about it?

  • 4 cylinder hardened grinded steel double Piston Motor with high torque
  • Single planetary rotation unit with reduction gear and seal ring
  • SGI grade steel casting air motor with worm reduction gear
  • Adjustable & replaceable cradle with 16 mm mounting bolts
  • Heavy duty 25.4 mm x 17.5 mm chain (Diamond / Rolon)
  • 3 way hardened grinded lever operated control unit with pressure regulator (Auto drilling feed control)
  • 150 mm rod guide with replaceable bush or with moveable and replaceable support hall
  • Hammer air connection through floating seal at the back side of gear box
  • Covered levelling jack with self-adjusting foot (2 nos.)
  • Big 25 litres hydraulic oil tank

Where it is used?

  • Open cast mining
  • Sand stone and lime slotting
  • Underground mines
Download Product Flyer

Accessories

Accessories

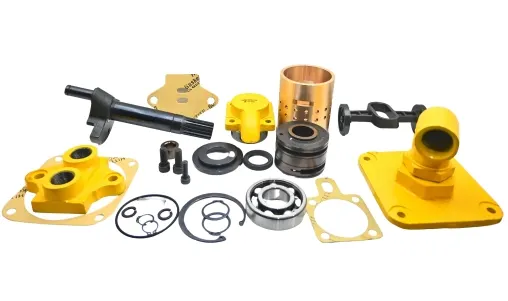

Spare Parts
