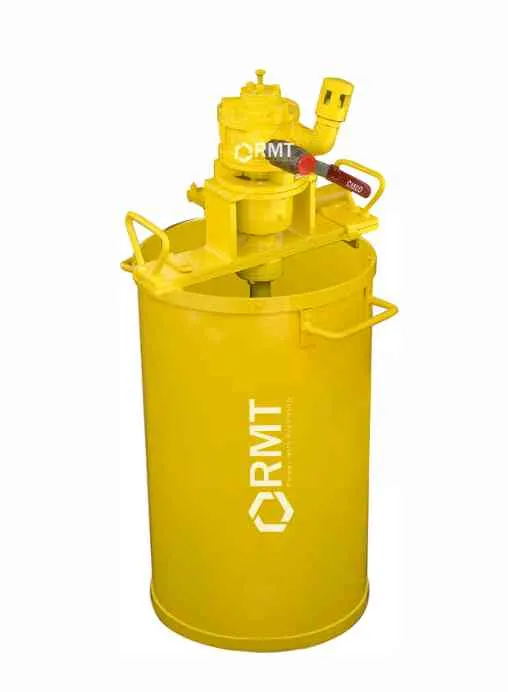

RMT 545 RNS pump is an air-operated pump, suitable for cement injection. As it is a pneumatically operated unit, it can be installed at any place without any trouble, and it is absolutely safe to use. It is basically designed for cement grouts & a water-based binder where low volume but high pressure is needed. It produces high pressure for spraying. The major attraction of the RMT 545 RNS Pump is its portability. Due to its lightweight, it can be moved or relocated very easily. Yet it is rugged to withstand the handling of the normal mine. It is very easy to maintain because of the very few screws.
| Model # | RMT 545 RNS | |
| Total weight | 22 kg | 48.5 lb |
| Total height | 1115 mm | 44" |
| Width & length | 610 x 200 mm | 24" X 8" |
| Air pressure required | 42-47 l/s at 4.8-5.5 bar pressure | 90-100 cfm at 70-80 psi pressure |
| Total head capacity | 3 - 20 Meter | 10 - 60 ft |
| Pressured delivered | 500 PSI (Maximum) | |
| Flow rate | 15 to 20 Ltr / minute (Maximum) | |
| Mixture free speed of motor | 300 RPM | |
