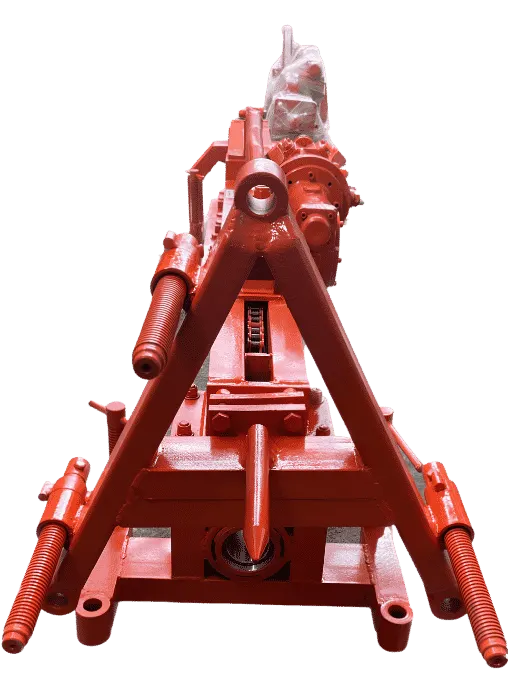

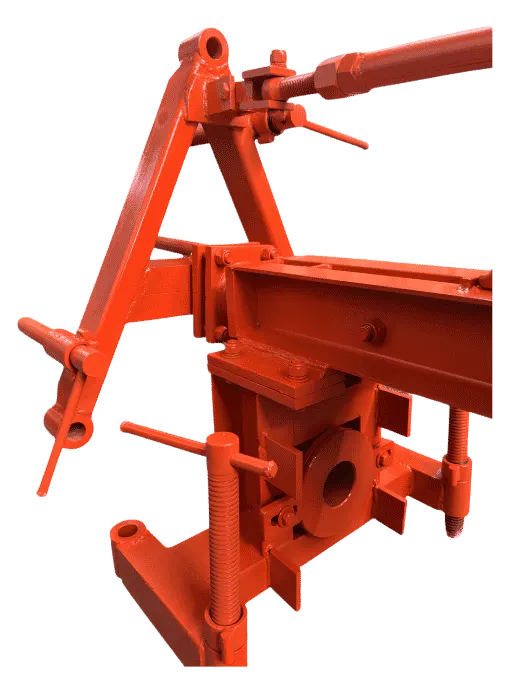

RMT SLD 600 is a pneumatically operated drill capable of drilling holes in both Down-the-Hole and Top Hammer modes. It is ideally suitable for drilling lead holes for diamond wire cutting in decorative marble, granite, rock, etc. This machine is specially designed for operator suitability and includes a lubrication panel with an automatic drilling option, a large tool box, and covered levelling jacks with slides for horizontal drilling. A ball joint is provided at the bottom of the mast along with four leveling screws, three anchoring rods with taper bushes, and one adjusting rod for vertical drilling.
Technical Specification
| Dimension of Hole | Ø 115 to Ø 165 mm |
| Depth of Hole (Vertical) | 30 mtrs |
| Length of Hole (Horizontal) | 30 mtrs |
| Drill Pipe Size | Ø 76 mm |
| Drill Pipe Length | 1.5 mtrs |
| Minimum Center Length of Hole from Ground | 120 mm |
| Weight (Approx.) | 700 kg |
| Height of Rig | 2845 mm |
| Width of Rig | 690 mm |
| Rotation Unit | 6 HP |
| RPM | 0 to 150 |
| Feed Unit | 6 HP |
| Pull Up & Down | 2000 kg |
| Air Requirement @ 7 Bar | 250 cfm |
| Drilling Rate (Granite) | 30 ft/hr |
• Horizontal & Vertical Drilling
• Covered leveling jack for horizontal drilling
• Easy to adjust rods
• Most suitable for marble & granite mass
