RMT SLD 100

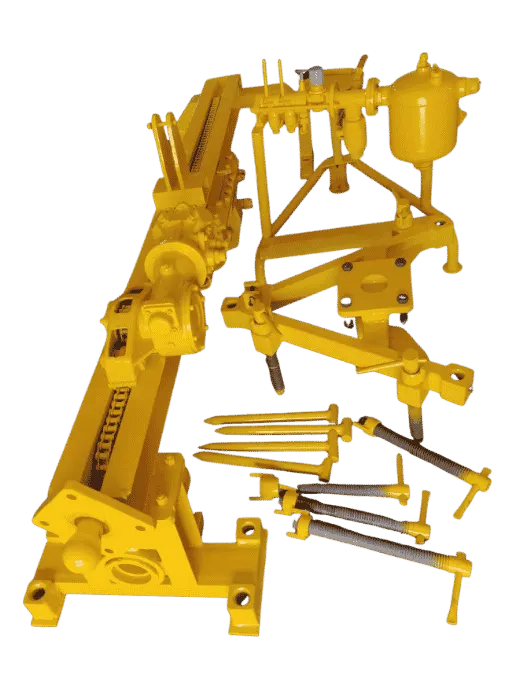

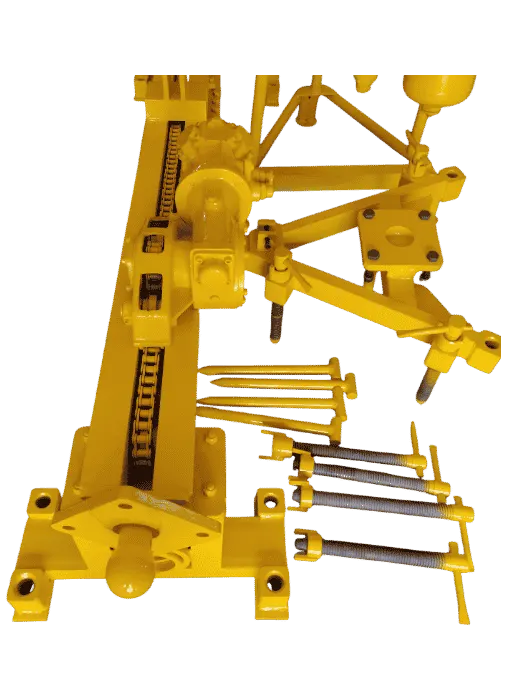

RMT SLD 100 is a pneumatically operated drill capable of drilling holes in both Down-the-Hole and Top Hammer modes. It is ideally suitable for drilling lead holes for diamond wire cutting in decorative marble, granite, rock, etc. The machine is specially designed for operator convenience and includes a lubrication panel with an “Automatic Drilling” option, a large tool box, and covered levelling jacks with slides for horizontal drilling. A ball joint is provided at the bottom of the mast along with four leveling screws, three anchoring rods with taper bushes, and one adjusting rod for vertical drilling.

RMT SLD 100 | Slim Drill

Technical Specification

Model # RMT SLD 100
Dimension of Hole Ø 115 - Ø 150 mm 4 ½" – 5 ⅞"
Depth of Hole (Vertical) 30 mtrs 98.4 ft
Length of Hole (Horizontal) 20 mtrs 65.6 ft
Drill Pipe Size Ø 76 mm 3"
Drill Pipe Length 1.5 mtrs 4.9 ft
Minimum Center Length of Hole from Ground 125 mm 4 15⁄16"
Weight (Approx.) 600 kg 1323 lb
Height of Rig 2500 mm 98 ⅜"
Width of Rig 600 mm 23 ⅝"
Rotation Unit 4.5 HP
RPM 0 to 50
Feed Unit 4.5 HP
Pull Up & Down 1500 kg 3307 lb
Air Requirement 200 cfm 94.4 l/s
Drilling Rate (Granite) 15 ft/hr

Key Features

• Horizontal & Vertical Drilling

• Covered leveling jack for horizontal drilling

• Easy to adjust rods

• Most suitable for marble & granite mass
