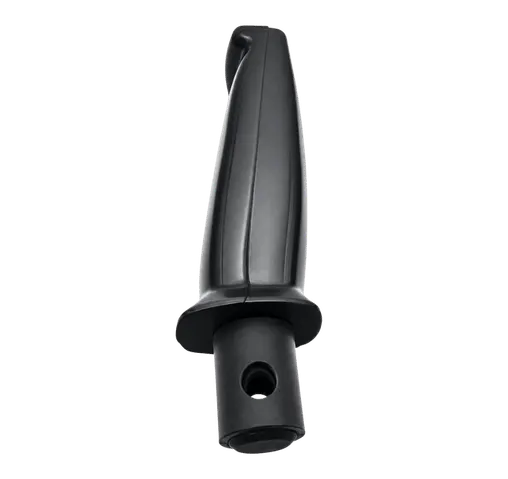

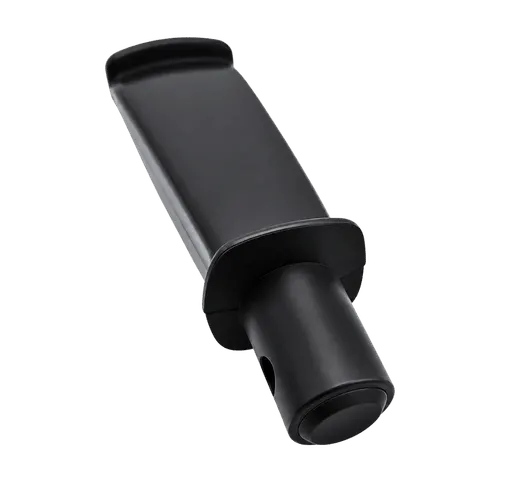

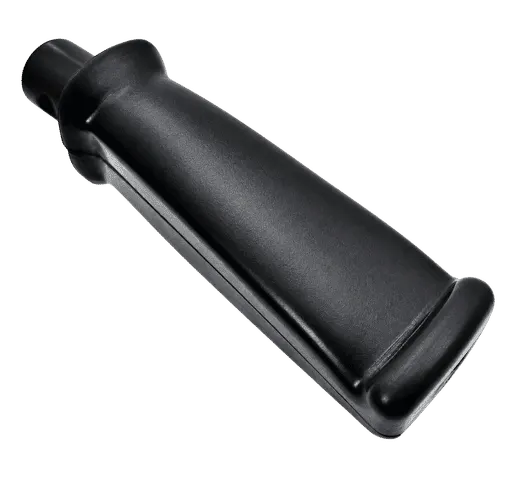

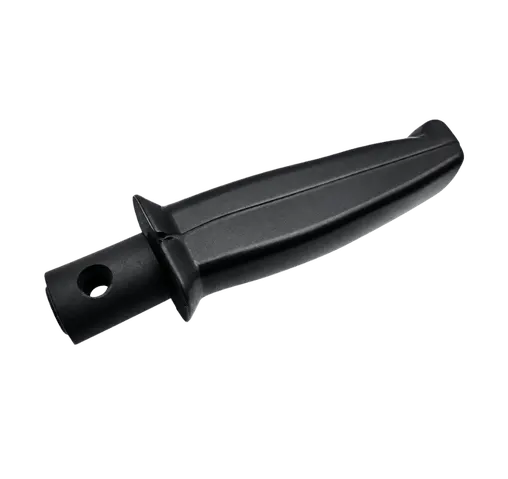

Handle Complete

3115248380
Handle Complete
Handle Complete

Technical Specification

RMT Part # 12D (A)
Ref Part # 3115 2483 80
Description Handle Complete (1 - 9 & 11)
Compatible With RMT 12D | BBD 12D
OEM Interchangeability Yes
Availability RMT make
