RMT 0020 Pump Spare Parts


Valve (3/4" male)
RMT Part#
0020 01
Ref Part #
R137313

Valve (3/4" male)
Bushing - Air inlet
RMT Part#
0020 02
Ref Part #
R137314

Bushing - Air inlet
Governor housing complete
RMT Part#
0020 03
Ref Part #
C086466

Governor housing complete
O-ring
RMT Part#
0020 04
Ref Part #
C084172

O-ring
Strainer - Air
RMT Part#
0020 05
Ref Part #
C085374

Strainer - Air
Plug - Oil
RMT Part#
0020 06
Ref Part #
C086130

Plug - Oil
O-ring
RMT Part#
0020 07
Ref Part #
P083082

O-ring
Housing - Governor
RMT Part#
0020 08
Ref Part #
C085366

Housing - Governor
Spring
RMT Part#
0020 09
Ref Part #
S017510

Spring
O-ring
RMT Part#
0020 10
Ref Part #
C079489

O-ring
Valve - Oiler
RMT Part#
0020 11
Ref Part #
C085378

Valve - Oiler
O-ring
RMT Part#
0020 12
Ref Part #
P083071

O-ring
Seat - Oiler valve
RMT Part#
0020 13
Ref Part #
C085379

Seat - Oiler valve
Plug - Oiler
RMT Part#
0020 14
Ref Part #
C085380

Plug - Oiler
Gasket - Governor housing
RMT Part#
0020 15
Ref Part #
C085363

Gasket - Governor housing
O-ring
RMT Part#
0020 16
Ref Part #
C085386

O-ring
Lock wire
RMT Part#
0020 18
Ref Part #
C056975

Lock wire
Screw
RMT Part#
0020 19
Ref Part #
C056974

Screw
Retainer - Governor spring
RMT Part#
0020 20
Ref Part #
C089835

Retainer - Governor spring
Spring - Governor
RMT Part#
0020 21
Ref Part #
C085372

Spring - Governor
Valve - Governor
RMT Part#
0020 22
Ref Part #
C085370

Valve - Governor
Pin - Governor valve
RMT Part#
0020 23
Ref Part #
C085371

Pin - Governor valve
O-ring
RMT Part#
0020 24
Ref Part #
C085385

O-ring
Cage - Governor
RMT Part#
0020 25
Ref Part #
C085368

Cage - Governor
Disc - Gage tension
RMT Part#
0020 26
Ref Part #
C085369

Disc - Gage tension
Lock washer
RMT Part#
0020 27
Ref Part #
S008020

Lock washer
Screw
RMT Part#
0020 28
Ref Part #
S007685

Screw
Governor body complete
RMT Part#
0020 29
Ref Part #
C086467

Governor body complete
Body governor
RMT Part#
0020 30
Ref Part #
-

Body governor
Nylon insert
RMT Part#
0020 32
Ref Part #
-

Nylon insert
Pin - Governor push
RMT Part#
0020 33
Ref Part #
-

Pin - Governor push
Weight - Governor
RMT Part#
0020 34
Ref Part #
-

Weight - Governor
Spacer - Governor weight
RMT Part#
0020 35
Ref Part #
-

Spacer - Governor weight
Pin - Governor weight
RMT Part#
0020 36
Ref Part #
-

Pin - Governor weight
Retainer - Pin
RMT Part#
0020 37
Ref Part #
-

Retainer - Pin
Bearing - Ball
RMT Part#
0020 38
Ref Part #
C013654

Bearing - Ball
Plate - Upper end
RMT Part#
0020 39
Ref Part #
C085360

Plate - Upper end
Spacer - Rotor bearing
RMT Part#
0020 40
Ref Part #
C085358

Spacer - Rotor bearing

Rotor complete
RMT Part#
0020 41
Ref Part #
Z8777463

Rotor complete

Blade - Rotor
RMT Part#
0020 42
Ref Part #
C085362

Blade - Rotor
Rotor
RMT Part#
0020 43
Ref Part #
-

Rotor
Spacer - Rotor bearing (Lower)
RMT Part#
0020 44
Ref Part #
C085357

Spacer - Rotor bearing (Lower)
Shim complete
RMT Part#
0020 45
Ref Part #
Z8778463

Shim complete

Shim (0.001")
RMT Part#
0020 46
Ref Part #
-

Shim (0.001")
Shim (0.002")
RMT Part#
0020 47
Ref Part #
-

Shim (0.002")
Shim (0.003")
RMT Part#
0020 48
Ref Part #
-

Shim (0.003")
Pin - Dowel
RMT Part#
0020 49
Ref Part #
C085355

Pin - Dowel
Liner
RMT Part#
0020 50
Ref Part #
C085361

Liner
Plate - Lower end
RMT Part#
0020 51
Ref Part #
C085356

Plate - Lower end
O-ring
RMT Part#
0020 52
Ref Part #
C086699

O-ring
Bearing - Ball
RMT Part#
0020 53
Ref Part #
C085382

Bearing - Ball
Gasket - Seal plate
RMT Part#
0020 54
Ref Part #
C088457

Gasket - Seal plate
O-ring
RMT Part#
0020 55
Ref Part #
C084173

O-ring
Seal - Oil
RMT Part#
0020 56
Ref Part #
C088616

Seal - Oil
Plate - Seal
RMT Part#
0020 57
Ref Part #
C088456

Plate - Seal
Housing - Motor
RMT Part#
0020 58
Ref Part #
C085348

Housing - Motor
O-ring
RMT Part#
0020 59
Ref Part #
H083084

O-ring
Plate - Upper wear
RMT Part#
0020 60
Ref Part #
C088458

Plate - Upper wear
Sleeve - Impeller
RMT Part#
0020 61
Ref Part #
C088455

Sleeve - Impeller
O-ring
RMT Part#
0020 62
Ref Part #
C084400

O-ring
Impeller
RMT Part#
0020 63
Ref Part #
C088758

Impeller
Plate - Lower wear
RMT Part#
0020 64
Ref Part #
C088459

Plate - Lower wear
Housing - Impeller
RMT Part#
0020 65
Ref Part #
-

Housing - Impeller
Screen
RMT Part#
0020 66
Ref Part #
C085342

Screen
Handle
RMT Part#
0020 67
Ref Part #
C085347

Handle
Nipple (2 1/2" BSP)
RMT Part#
0020 68
Ref Part #
R137581

Nipple (2 1/2" BSP)
Pipe - Exhaust (NPT)
RMT Part#
0020 69
Ref Part #
C086080

Pipe - Exhaust (NPT)
Pipe - Exhaust (BSP)
RMT Part#
0020 70
Ref Part #
R137580

Pipe - Exhaust (BSP)
Nut - Brass (3/8"-16)
RMT Part#
0020 71
Ref Part #
C085384

Nut - Brass (3/8"-16)

Lock washer (3/8")
RMT Part#
0020 72
Ref Part #
C035166

Lock washer (3/8")
Stud (3/8" - 16 x 3/8")
RMT Part#
0020 73
Ref Part #
C061078

Stud (3/8" - 16 x 3/8")
Shims
RMT Part#
0020 74
Ref Part #
C048412

Shims
Back All Mining Tool Parts

Related Products

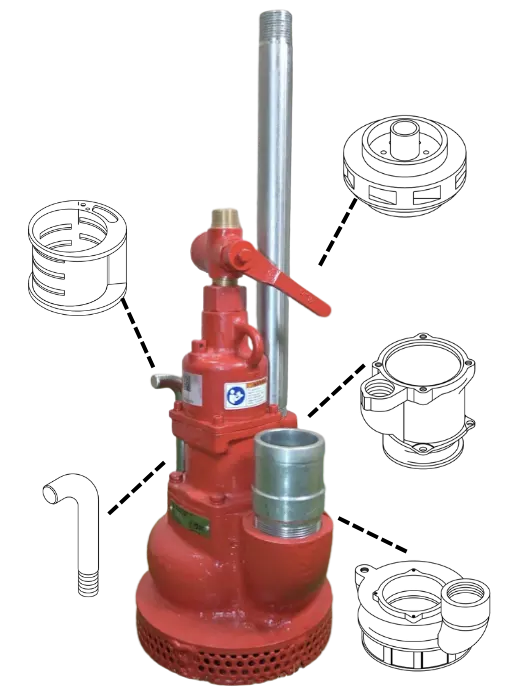

RMT 0010 Pump Spare Parts
