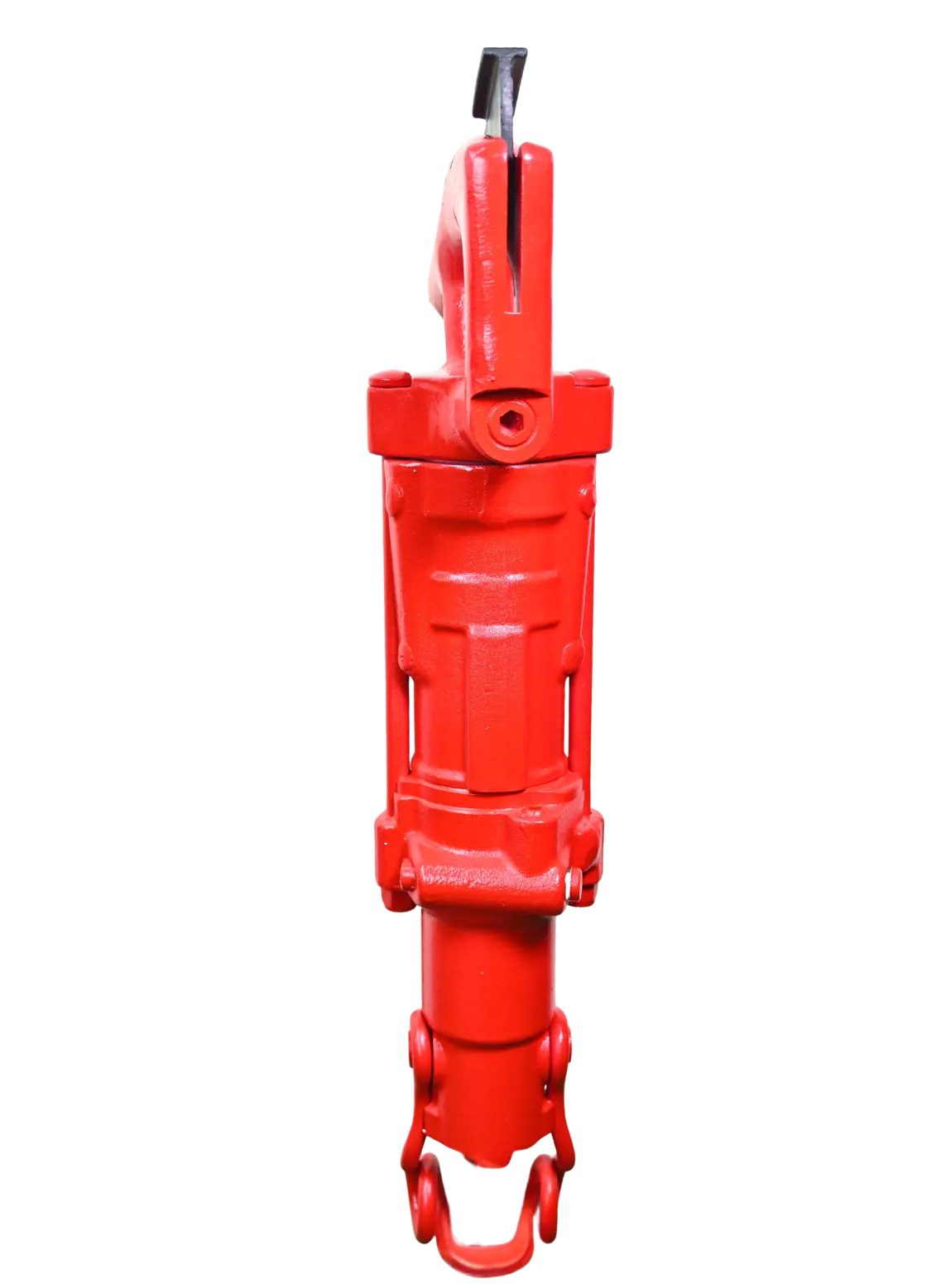

RMT 0014 RR - Rotary Drill

Pneumatic Rotary Drill – Lightweight Rock Drill for Construction & Mining

RMT 0014RR is a 7 kg pneumatic rotary drill that is designed for drilling in concrete, rock, and masonry applications. It is a compact combi-drill. built for durability and efficiency. This lightweight drill delivers powerful impact with 2500 blows per minute, resulting in fast and precise work during challenging and demanding conditions.

The RMT 0014 and RMT 009 pneumatic rock drills are designed to give versatile solutions, as both can work as a rock drill and a chipping hammer. It makes them the best choice for construction, mining and maintenance work, as it eliminates the need to keep two different types of machines.

Technical Specification

Model #	RMT 0014 RR
Weight	6.5 kg	14.3 lb
Length	480 mm	19"
Hole range	44 mm	1.73 "
Hole depth	650 mm	25.6 "
Air pressure	6.2 bar	90 psi
Air consumption	22 l/s	47 cfm
Blows per minute	2520
Revolutions	165 rpm
Air inlet (NPTF )	9.5 mm	⅜"
Shank size (Hex) - 8900 0020 10	22 x 82.5 mm	⅞" x 3¼”
Retainer type	Spring
Manufacturer	RMT

Where it is used?

Bolting applications such as Rawlbolts and foundation bolting

Quarry pop shots

Drilling in concrete, granite, limestone, brick work

Key Features

With dual operating modes, it can work as both a drill and a chipping hammer.
Capacity to make hole dia from 8 mm to 25 mm and 300 mm depth.
The built-in oiler ensures continuous lubrication of the parts, ensuring less damage to the spare parts and downtime.
Alternative to the original 8900 0020 10 rotary drill. It is 100% equivalent to OEM with complete spare parts interchangeability.
