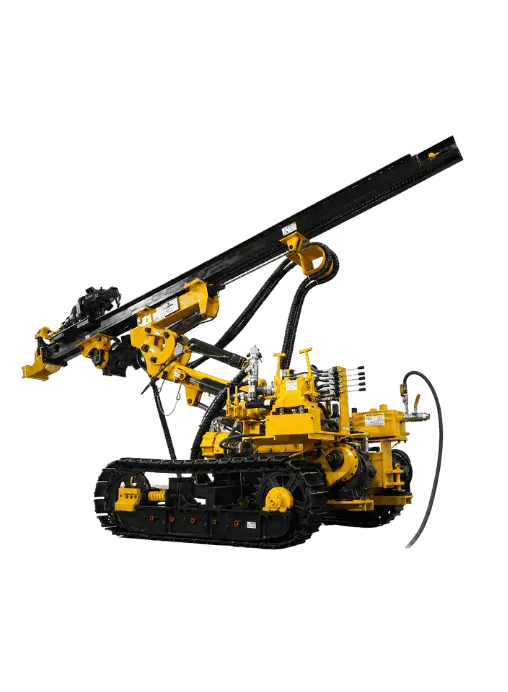

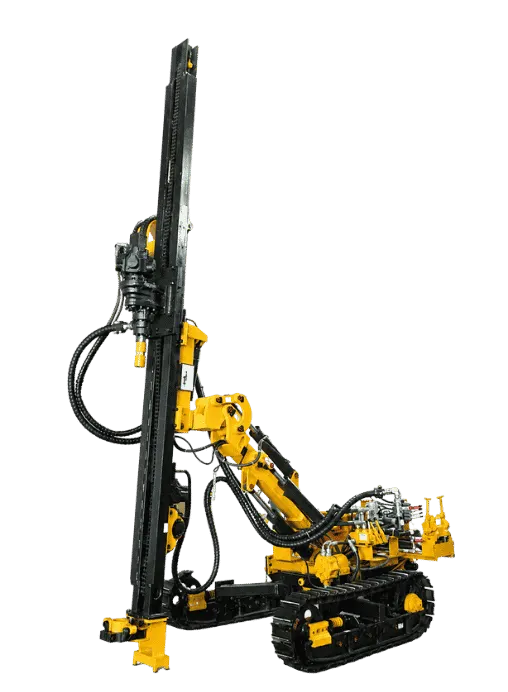

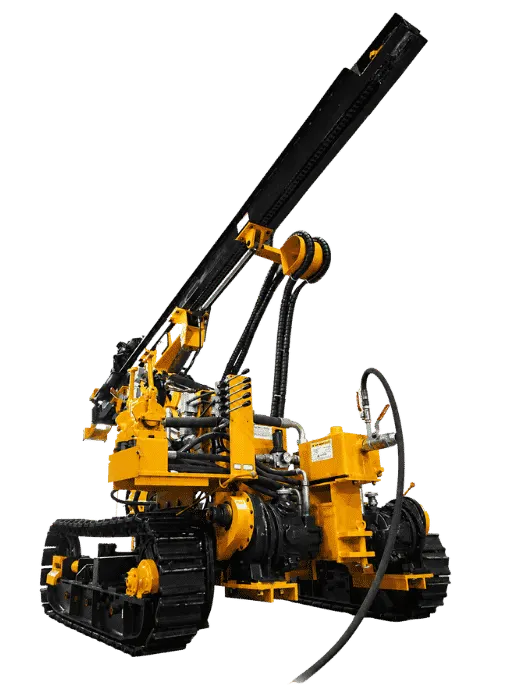

RMT CW 190 Pro Max

With a maximum drilling depth of 30 metres and a tramming speed of up to 3.5 km/hr, the RMT CW 190 Pro Max is a practical choice for projects that require a mobile and capable crawler drilling machine.

Crawler Drill Built for Site Conditions

Drilling locations are not always easy to access. Quarry faces, mining areas and construction sites can have uneven surfaces, loose rock and changing ground conditions.

The crawler arrangement of the RMT CW 190 Pro Max helps the machine travel around these areas and move from one drilling point to another. Once positioned, the crawler platform provides a stable base for drilling operations.

This makes the machine suitable for projects where mobility around the drilling area is an important part of the job.

DTH and Top Hammer Drilling

One of the main advantages of the RMT CW 190 Pro Max is the option to use different drilling methods depending on the application.

DTH Crawler Drilling

The DTH configuration is suitable for larger-diameter holes and deeper surface drilling applications.

The RMT CW 190 Pro Max supports DTH hole diameters from 90 mm to 127 mm and can drill to a maximum stated depth of 30 metres, depending on the drilling setup and site conditions.

For DTH applications, the stated compressor requirement is 450–550 CFM at 150–200 psi.

Top Hammer Drilling

Top hammer drilling provides an option for applications requiring smaller hole diameters.

The CW 190 Pro Max supports top hammer hole diameters from 32 mm to 72 mm, with a 3 metre rod length.

The stated compressor requirement for top hammer drilling is 400–600 CFM at 100 psi.

The appropriate drilling method depends on factors such as rock formation, hole diameter, required depth and the overall drilling plan.

Applications of RMT CW 190 Pro Max

The RMT CW 190 Pro Max crawler drill can be used across a variety of surface drilling applications.

Common applications include:

• Mining: Drilling in surface and open-area mining operations.
• Quarrying: Drilling holes in rock for quarry production and excavation.
• Blast-Hole Drilling: Creating holes for controlled blasting operations.
• Rock Excavation: Drilling in hard rock before excavation or removal.
• Construction: Supporting drilling requirements for construction and infrastructure work.
• Surface Drilling: General-purpose drilling where crawler mobility and pneumatic drilling are required.

The machine configuration should be selected according to the specific drilling conditions and project requirements.

Designed for Mining and Quarry Drilling

Mining and quarry drilling requires equipment that can handle regular movement, hard rock and changing worksite conditions.

The RMT CW 190 Pro Max combines a crawler undercarriage with a pneumatic drilling system to provide a mobile drilling solution for these environments.

The machine can be moved between drilling points and configured for either DTH or top hammer drilling. This gives contractors and site operators greater flexibility when drilling requirements vary across a project.

Drilling Depth and Hole Size

The RMT CW 190 Pro Max is designed for applications requiring different hole sizes and drilling depths.

With DTH drilling, hole diameters range from 90 mm to 127 mm, while top hammer drilling supports hole diameters from 32 mm to 72 mm.

The maximum stated drilling depth is 30 metres, with the actual drilling performance depending on the selected configuration, ground conditions, drilling method and site setup.

Easy Movement Between Drilling Locations

Moving a crawler drill efficiently around a site can save time when multiple drilling points are involved.

The RMT CW 190 Pro Max has a tramming speed of up to 3.5 km/hr, allowing it to travel between drilling locations under suitable site conditions.

Its crawler-mounted design is particularly useful for mining and quarrying environments where conventional wheeled equipment may not be suitable for all areas of the worksite.

Choose the Right Drilling Setup

There is no single drilling configuration that works for every project. The rock type, hole diameter, drilling depth, compressor capacity and site conditions all need to be considered when selecting a crawler drill.

The RMT team can help you understand the available configuration for the CW 190 Pro Max and determine whether it is suitable for your application.

If you are planning a mining, quarrying or construction drilling project, share your requirements with us and our team can recommend the appropriate setup.

RMT CW 190 Pro Max Crawler Drill

The RMT CW 190 Pro Max brings together crawler mobility and pneumatic drilling in a machine designed for surface drilling applications.

With DTH and top hammer drilling options, up to 30 metres of drilling depth, and a crawler platform designed for movement across demanding worksites, it can be used for a range of mining, quarrying, construction and rock drilling applications.

For pricing, technical information, configuration details or project requirements, contact RMT.
