Technical Specification

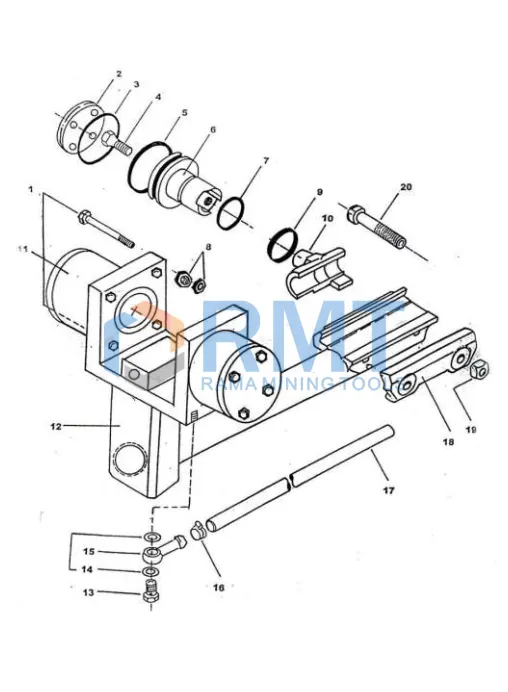

| Description | Ref Part # | EV # |

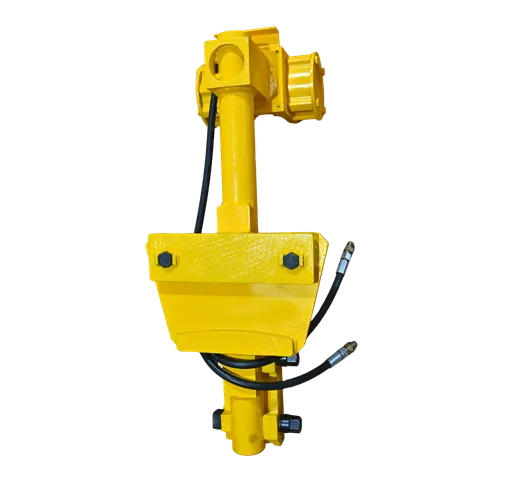

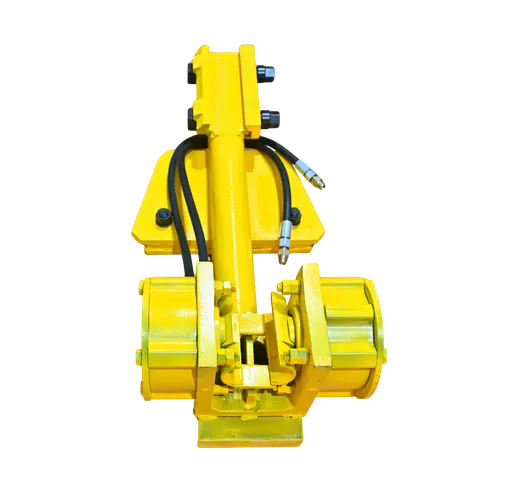

| Pneumatic Rod Catcher ( 1 - 11 ) | BSP 10M | - |
| Bolt | SJ 0003 | 1 |
| Cover | SJ 0004 | 2 |
| O Ring | SJ 0005 M | 3 |
| Screw | 3142 0264 00 | 4 |
| O Ring | 0663 2149 00 | 5 |
| Piston | 3142 0263 00 M | 6 |
| O Ring | 0663 6135 00 M | 7 |
| Nut | SJ 0006 | 8 |
| Seal Ring | 0665 9193 00 M | 9 |
| Drill Steel Support Hal,32 mm ( ¼” ) | 3142 0262 00 M | 10 |
| Cylinder | SJ 0007 | 11 |
| Cylinder & Piston Complete Assembly ( 12 - 20 ) | SJ 0008 | B |
| Drill Steel Support | 3142 0780 00 | 12 |
| Pressure Screw | 0627 5113 00 M | 13 |
| Packing | 0653 1070 00 M | 14 |
| Banjo Connection | 9000 0294 00 M | 15 |
| Hose Clamp | 0347 6104 00 M | 16 |
| Air Hose | 9030 0200 00 M | 17 |
| Clamping Rail | 3142 0157 00 M | 18 |
| Nut Square | 3000 0988 02 M | 19 |
| Bolt Square Head | 3142 0153 00 M | 20 |
| Bushing | 3142 0261 00 | - |
| Piston | 3142 0263 00 | - |
| Lock Ring | 0335 2177 00 | - |
| Cover | 3142 0265 00 | - |
