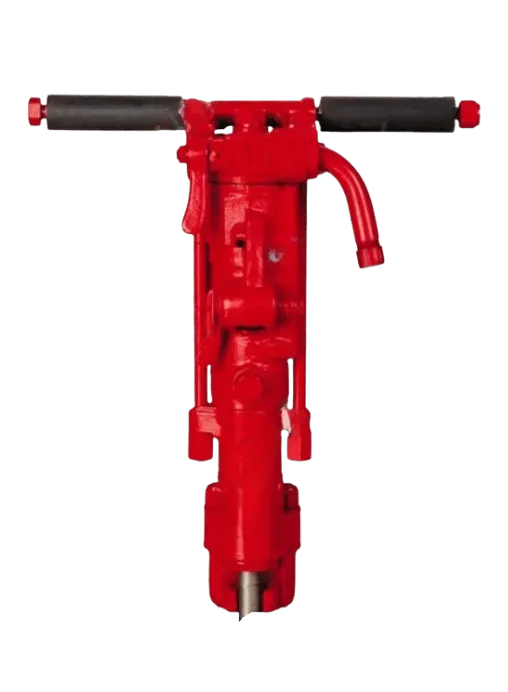

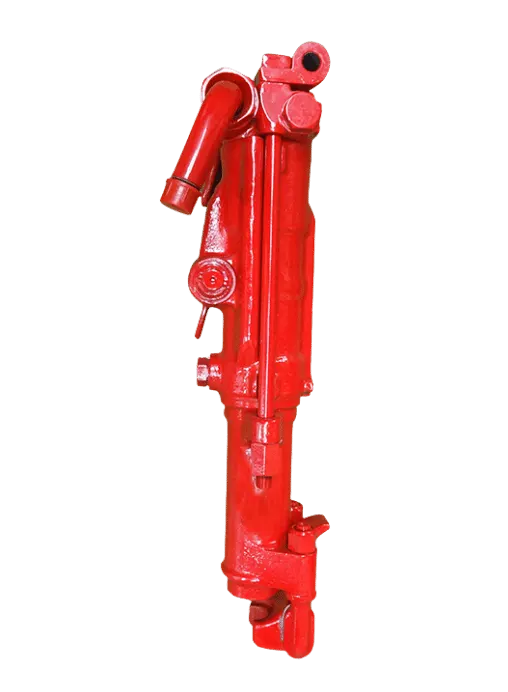

A favorite rock drill among the drill operators. For deep hole cleaning, a blower lever is provided. It gives constant drilling speed throughout long service life. An efficient lubrication system ensures the continuous protection of working parts.
Technical Specification
| Model # | CP 0069 | |
| Weight | 27.5 kg | 59 lb |
| Length | 610 mm | 24" |
| Hole range (upto) | 60 mm | 2.35" |
| Hole depth (max.) | 6 metres | 19.6 ft |
| Air pressure | 6 bar | 87 psi |
| Air consumption | 61 l/s | 129 cfm |
| Blows per minute | 1860 | |
| Revolutions | 210 rpm | |
| Piston dia | 70 mm | 2¾" |
| Piston stroke | 67 mm | 2.63" |
| Air inlet (Swivel) | 19 mm | ¾" |
| Shank size - 8900 0020 22 | 25 x 108 mm | 1" x 4¼" |
| Manufacturer | OEM | |
