Spare Parts for BBD 12 DS - Sinker Drill

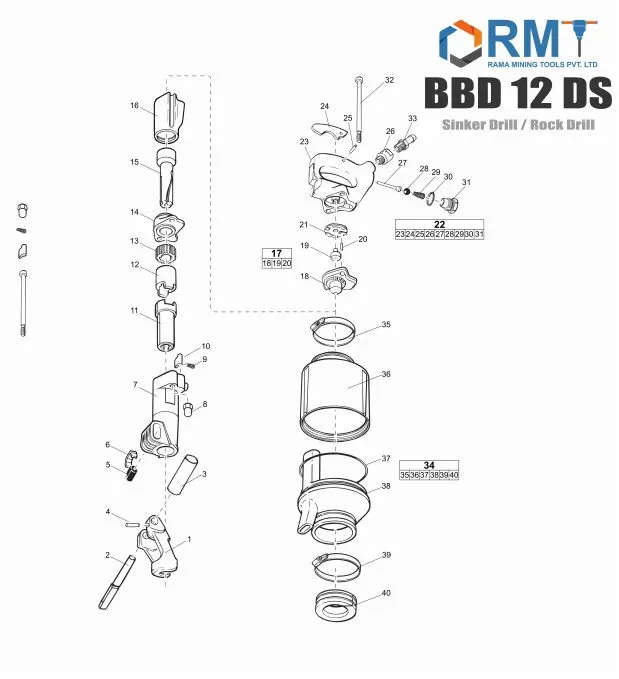

BBD 12 DS - Sinker Drill
BBD 12 DS - Sinker Drill
Retainer Pin
Ref Part #
3115 2480 00
Retainer Pin
Drill Retainer
Ref Part #
3115 2475 00
Drill Retainer
Sleeve
Ref Part #
3115 2481 00
Sleeve
Slotted Spring Pin
Ref Part #
0108 1359 00
Slotted Spring Pin
Rubber Buffer
Ref Part #
3111 0057 00
Rubber Buffer
Buffer Plate
Ref Part #
3111 0056 00
Buffer Plate
Fronthead
Ref Part #
3111 0053 00
Fronthead
Cap Nut
Ref Part #
3111 0031 00
Cap Nut
Conical Spring
Ref Part #
3111 0023 00
Conical Spring
Drill Chuck
Ref Part #
3111 0051 00
Drill Chuck
Driver
Ref Part #
3111 0024 00
Driver
Ratchet Wheel
Ref Part #
3111 0019 00
Ratchet Wheel
Intermediate Part
Ref Part #
3111 0017 00
Intermediate Part
Piston
Ref Part #
3111 0016 00
Piston
Cylinder
Ref Part #
3111 0015 00
Cylinder
Cover Complete
Ref Part #
3111 0013 80
Cover Complete
Cover
Ref Part #
--
Cover
Guide Pin
Ref Part #
3111 0014 00
Guide Pin
Pin
Ref Part #
0108 3241 00
Pin
Main Valve
Ref Part #
3111 0012 00
Main Valve
Handle Complete
Ref Part #
3115 2483 80
Handle Complete

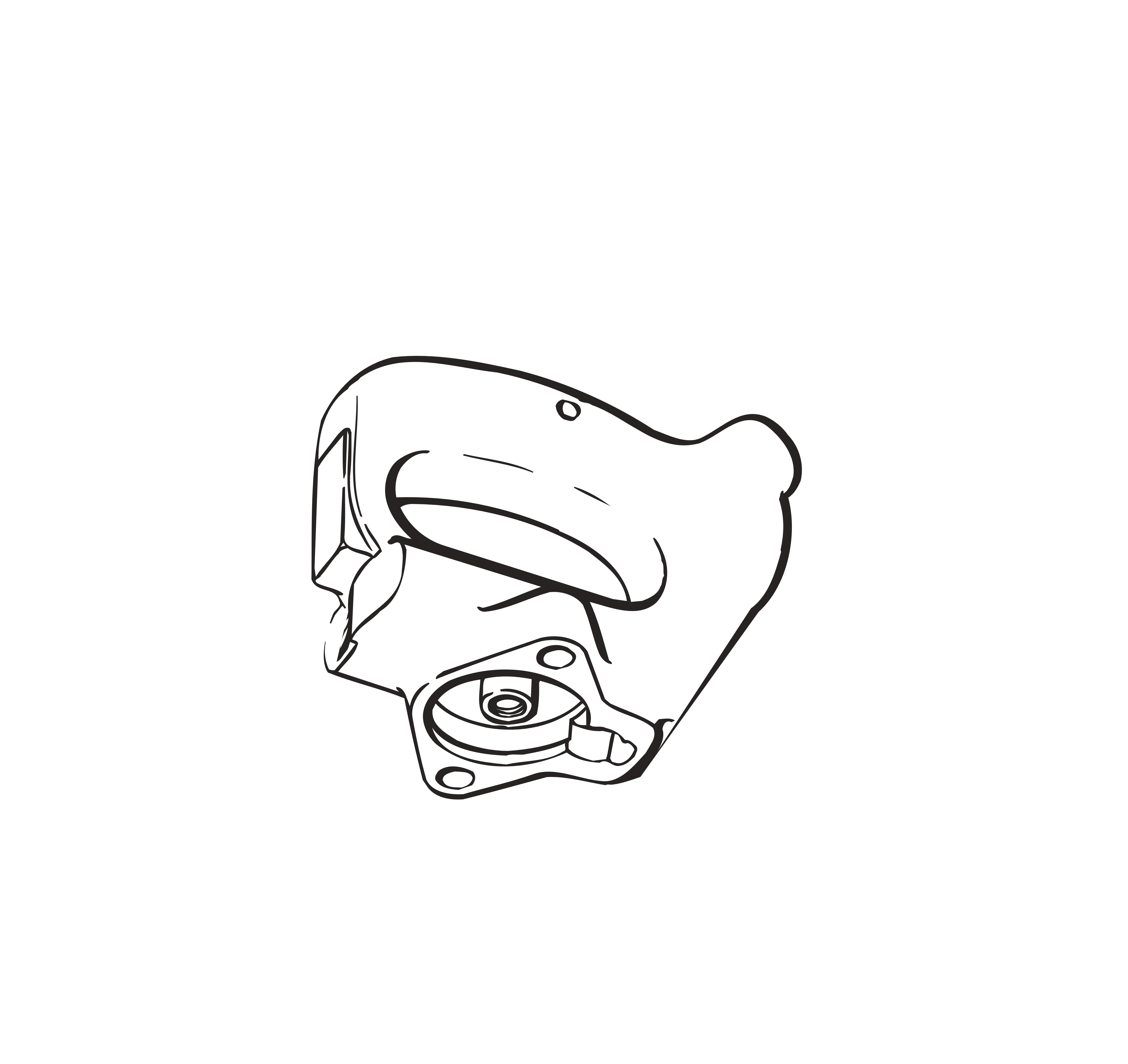

Handle
Ref Part #
--
Handle
Trigger
Ref Part #
3111 0002 00
Trigger
Pin
Ref Part #
0108 1327 00
Pin
Nut
Ref Part #
3510 0143 00
Nut
Valve Pin
Ref Part #
3111 0003 00
Valve Pin
Rubber Ball
Ref Part #
3111 0196 00
Rubber Ball
Conical Spring
Ref Part #
3111 0004 00
Conical Spring
Washer
Ref Part #
3111 0010 00
Washer
Ball Retainer
Ref Part #
3111 0005 00
Ball Retainer
Side Bolt
Ref Part #
3111 0197 00
Side Bolt
Hose Nipple
Ref Part #
9000 0243 00
Hose Nipple
Silencer Complete
Ref Part #
3115 2487 80
Silencer Complete
Hose Clamp
Ref Part #
0347 6117 00
Hose Clamp
Silencer
Ref Part #
3115 2487 00
Silencer
O - Ring
Ref Part #
0663 6151 00
O - Ring
Silencer
Ref Part #
3115 0772 00
Silencer
Hose Clamp
Ref Part #
0347 6116 00
Hose Clamp
Bushing
Ref Part #
3115 0773 00
Bushing
