Spare Parts for RMT 3/30 JLD Jackleg Drill

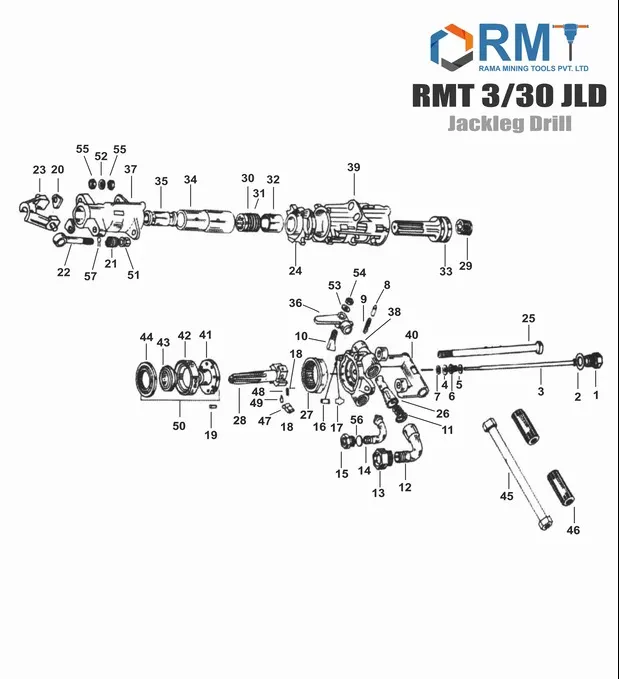

RMT 3/30 JLD Jackleg Drill
RMT 3/30 JLD Jackleg Drill
Back Head Plug
RMT Part #
330 01
Ref Part #
T/33/1
Back Head Plug
Copper Washer
RMT Part #
330 02
Ref Part #
V 19
Copper Washer
Water Tube
RMT Part #
330 03
Ref Part #
S 78 S
Water Tube
Water Tube Rubber Large
RMT Part #
330 04
Ref Part #
L 37
Water Tube Rubber Large
Water Tube Rubber Small
RMT Part #
330 05
Ref Part #
S 15
Water Tube Rubber Small
Gripping Screw
RMT Part #
330 06
Ref Part #
K 84
Gripping Screw
Brass Washer
RMT Part #
330 07
Ref Part #
X 36
Brass Washer
Tumbler Plunger
RMT Part #
330 08
Ref Part #
OB 59
Tumbler Plunger
Tumbler Plunger Spring
RMT Part #
330 09
Ref Part #
OB 58
Tumbler Plunger Spring
Tumbler Handle Bolt & Nut
RMT Part #
330 10
Ref Part #
UM 7020
Tumbler Handle Bolt & Nut
Tumbler Valve Spring
RMT Part #
330 11
Ref Part #
SO 330
Tumbler Valve Spring
Air Swivel Stem
RMT Part #
330 12
Ref Part #
V 22
Air Swivel Stem
Air Swivel Stem Nut
RMT Part #
330 13
Ref Part #
V 23
Air Swivel Stem Nut
Water Swivel Stem O Ring
RMT Part #
330 14
Ref Part #
SB 290
Water Swivel Stem O Ring
Water Swivel Stem Nut
RMT Part #
330 15
Ref Part #
V 53
Water Swivel Stem Nut
Blowing Connection Tube
RMT Part #
330 16
Ref Part #
SB 24
Blowing Connection Tube
Blowing Connection Rubber
RMT Part #
330 17
Ref Part #
SB 24A
Blowing Connection Rubber
Valve Chest Dowel
RMT Part #
330 18
Ref Part #
DP5/0/34
Valve Chest Dowel
Retainer Guide Washer
RMT Part #
330 19
Ref Part #
SO 47
Retainer Guide Washer
Retainer Spring
RMT Part #
330 20
Ref Part #
T-22/1R
Retainer Spring
Retainer Guide Bolt
RMT Part #
330 21
Ref Part #
SO 46
Retainer Guide Bolt
Retainer
RMT Part #
330 22
Ref Part #
SO 44
Retainer
Cylinder Washer With Liner
RMT Part #
330 23
Ref Part #
SO 2
Cylinder Washer With Liner
Side Bolt
RMT Part #
330 24
Ref Part #
S 7077
Side Bolt
Tumbler Valve
RMT Part #
330 25
Ref Part #
SO 18
Tumbler Valve
Ratchet Ring
RMT Part #
330 26
Ref Part #
SO 7
Ratchet Ring
Rifle Bar
RMT Part #
330 27
Ref Part #
SO 55
Rifle Bar
Rifle Nut
RMT Part #
330 28
Ref Part #
SO 5
Rifle Nut
Chuck Guide Nut - New Type
RMT Part #
330 29
Ref Part #
SO 17
Chuck Guide Nut - New Type
Liner
RMT Part #
330 30
Ref Part #
SO 3
Liner
Piston
RMT Part #
330 31
Ref Part #
SO 4
Piston
Rotation Chuck (New Type)
RMT Part #
330 32
Ref Part #
SO 36
Rotation Chuck (New Type)
Chuck Bushing
RMT Part #
330 33
Ref Part #
SO 41
Chuck Bushing
Tumbler Handle
RMT Part #
330 34
Ref Part #
SB 12
Tumbler Handle
Front Head
RMT Part #
330 35
Ref Part #
SO 35/1
Front Head
Back Head
RMT Part #
330 36
Ref Part #
SO 13
Back Head
Cylinder
RMT Part #
330 37
Ref Part #
SO 1
Cylinder
D Handle
RMT Part #
330 38
Ref Part #
M 40
D Handle
Valve Chest Back End
RMT Part #
330 39
Ref Part #
SO 11
Valve Chest Back End
Valve Chest
RMT Part #
330 40
Ref Part #
SO 9/1
Valve Chest
Valve
RMT Part #
330 41
Ref Part #
SO 8/1
Valve
Valve Chest Front End
RMT Part #
330 42
Ref Part #
SO 10/1
Valve Chest Front End
Bar Handle
RMT Part #
330 43
Ref Part #
SD 13
Bar Handle
Rubber Grip Bar Handle
RMT Part #
330 44
Ref Part #
EHR 2/1
Rubber Grip Bar Handle
Ratchet Pawl
RMT Part #
330 45
Ref Part #
SO 56
Ratchet Pawl
Ratchet Pawl Spring
RMT Part #
330 46
Ref Part #
SB 22
Ratchet Pawl Spring
Ratchet Pawl Plunger
RMT Part #
330 47
Ref Part #
SB 23
Ratchet Pawl Plunger
Nut Retainer Bolt
RMT Part #
330 52
Ref Part #
NU 27/1
Nut Retainer Bolt
Side Rod Lock Washer
RMT Part #
330 49
Ref Part #
BCW 4
Side Rod Lock Washer
Tumbler Handle Bolt Lock Washer
RMT Part #
330 50
Ref Part #
BCW 1
Tumbler Handle Bolt Lock Washer
Nut For Tumbler Handle Bolt
RMT Part #
330 51
Ref Part #
FN 107
Nut For Tumbler Handle Bolt
Nut For Side Bolt
RMT Part #
330 52
Ref Part #
FN 110
Nut For Side Bolt
Sealing Ring-OR 8
RMT Part #
330 53
Ref Part #
OR 8
Sealing Ring-OR 8
Split Pin
RMT Part #
330 54
Ref Part #
NUP 1
Split Pin
Ratchet Pawl Set
RMT Part #
330 (A)
Ref Part #
SO 56
Ratchet Pawl Set
Valve Box Complete
RMT Part #
330 (B)
Ref Part #
-
Valve Box Complete
Piston Complete (28 & 31)
RMT Part #
330 (C)
Ref Part #
-
Piston Complete (28 & 31)
Rotation Chuck Complete (32-33,29)
RMT Part #
330 (D)
Ref Part #
-
Rotation Chuck Complete (32-33,29)
Water Tube Rubber (Large & Small) (4-5)
RMT Part #
330 (E)
Ref Part #
-
Water Tube Rubber (Large & Small) (4-5)
Water Bend With Nut (14-15)
RMT Part #
330 (F)
Ref Part #
-
Water Bend With Nut (14-15)
Side Bolt Set (25 & 56)
RMT Part #
330 (G)
Ref Part #
-
Side Bolt Set (25 & 56)
Retainer Complete (22 & 52)
RMT Part #
330 (H)
Ref Part #
-
Retainer Complete (22 & 52)
