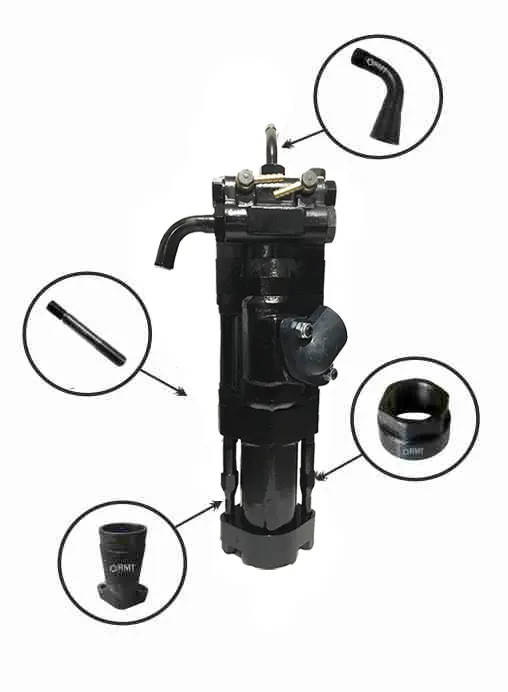

RMT 120F Spare Parts


Bottom Cover
RMT Part #
120F 01
Ref Part #
3161 0230 00

Bottom Cover
Cover
RMT Part #
120FZ 01
Ref Part #
3115 2239 00

Cover
Lock Spring
RMT Part #
120F 02
Ref Part #
3161 0993 00

Lock Spring
O - Ring
RMT Part #
120FZ 02
Ref Part #
0663 6145 00

O - Ring
Stop Ring (Chuck)
RMT Part #
120 03
Ref Part #
3161 0215 00

Stop Ring (Chuck)
Rotation Chuck (Small)
RMT Part #
120 04
Ref Part #
3161 0216 00

Rotation Chuck (Small)
Fronthead
RMT Part #
120F 05
Ref Part #
3161 0231 00

Fronthead

Fronthead
RMT Part #
120FZ 05
Ref Part #
3115 2291 00

Fronthead
Rotation Chuck Comp. (6 - 8)
RMT Part #
120 06(A)
Ref Part #
3161 0328 80

Rotation Chuck Comp. (6 - 8)
Rotation Chuck
RMT Part #
120 06
Ref Part #
-

Rotation Chuck
Rotation Chuck Bushing
RMT Part #
120 07
Ref Part #
3161 0218 00

Rotation Chuck Bushing
Chuck Guide Nut
RMT Part #
120 08
Ref Part #
3161 0329 00

Chuck Guide Nut

Nut side bolt
RMT Part #
120F 09
Ref Part #
3141 0072 00

Nut side bolt
Washer
RMT Part #
120FZ 09
Ref Part #
3115 0287 00

Washer

Dome Nut
RMT Part #
120FZ 10
Ref Part #
3115 0286 00

Dome Nut
Nut for side bolt 120F
RMT Part #
120F 10
Ref Part #
3141 0071 00

Nut for side bolt 120F
Intermediate Part Comp.
RMT Part #
120 11(A)
Ref Part #
3161 0819 80

Intermediate Part Comp.

Intermediate Part
RMT Part #
120 11
Ref Part #
-

Intermediate Part

Bushing
RMT Part #
120 12
Ref Part #
3161 0235 00

Bushing

Piston Comp.
RMT Part #
120 13(A) (13, 14)
Ref Part #
3161 0307 80 / 3161 0307 83

Piston Comp.
Piston
RMT Part #
120 13
Ref Part #
-

Piston
Rifle Nut
RMT Part #
120FZ 14
Ref Part #
3115 2107 00

Rifle Nut
Nut - Nylock
RMT Part #
120 15
Ref Part #
0291 1114 00

Nut - Nylock
Exhaust Guard (Rubber)
RMT Part #
120 16
Ref Part #
3115 0122 00

Exhaust Guard (Rubber)
Cylinder Comp.
RMT Part #
120 17(A) (15,17-18)
Ref Part #
3161 0524 80

Cylinder Comp.

Cylinder
RMT Part #
120 17
Ref Part #
-

Cylinder
Stud - Allen Grub Screw
RMT Part #
120 18
Ref Part #
3161 0468 00

Stud - Allen Grub Screw
Cover Comp.
RMT Part #
120 19(A) (19-20)
Ref Part #
3141 0087 80

Cover Comp.

Cover
RMT Part #
120 19
Ref Part #
-

Cover
Guide Pin
RMT Part #
120 20
Ref Part #
3141 0088 00

Guide Pin
Main Valve
RMT Part #
120 21
Ref Part #
3161 0333 00

Main Valve
Rifle Pin Bearing - Guide
RMT Part #
120 22
Ref Part #
3141 0090 00

Rifle Pin Bearing - Guide
Pawl Complete
RMT Part #
120 24A
Ref Part #
-

Pawl Complete
Rifle Bar
RMT Part #
120 23
Ref Part #
3161 0369 00

Rifle Bar
Pawl
RMT Part #
120 24
Ref Part #
3161 0370 00

Pawl
Pawl Pin
RMT Part #
120 25
Ref Part #
3141 0083 00

Pawl Pin
Pawl Spring
RMT Part #
120 26
Ref Part #
3115 0774 00

Pawl Spring
Damper (Rubber)
RMT Part #
120 27
Ref Part #
3161 0525 00

Damper (Rubber)
Ratchet Box
RMT Part #
120 28
Ref Part #
3161 0377 00

Ratchet Box
Pawl Lifting Ring
RMT Part #
120 29
Ref Part #
3161 0378 00

Pawl Lifting Ring
Coupling Nut
RMT Part #
120 30
Ref Part #
9000 0335 00

Coupling Nut
Hose Nipple
RMT Part #
120 31
Ref Part #
9000 0177 00

Hose Nipple
Adapter (Hex)
RMT Part #
120 32
Ref Part #
9000 0485 00

Adapter (Hex)
Adapter - Nut For Air Bend
RMT Part #
120 33
Ref Part #
3000 9922 00

Adapter - Nut For Air Bend
Air Bend
RMT Part #
120 34
Ref Part #
3161 0070 00

Air Bend
O Ring
RMT Part #
120 35
Ref Part #
0663 2132 00

O Ring
Backhead
RMT Part #
120 36
Ref Part #
3141 0093 00

Backhead
Pressure Screw
RMT Part #
120 37
Ref Part #
3161 0820 00

Pressure Screw
Banjo Nipple
RMT Part #
120 38
Ref Part #
3161 0229 00

Banjo Nipple
Brass Washer
RMT Part #
120 38(A)
Ref Part #
0038 1101 00

Brass Washer
Plug - Hex
RMT Part #
120 39
Ref Part #
3161 0069 00

Plug - Hex
Operating Piston
RMT Part #
120 40
Ref Part #
3141 0095 00

Operating Piston
Spring Guide
RMT Part #
120 41
Ref Part #
3141 0096 00

Spring Guide
Pressure Spring
RMT Part #
120 42
Ref Part #
3141 0097 00

Pressure Spring
O Ring
RMT Part #
120 43
Ref Part #
663 2132 00

O Ring
Plug
RMT Part #
120 44
Ref Part #
3141 0098 00

Plug
Rubber Bush - Gasket
RMT Part #
120 45
Ref Part #
3121 0477 00

Rubber Bush - Gasket
Side Bolt
RMT Part #
120 46
Ref Part #
3141 0070 00

Side Bolt
Nut - Side Bolt
RMT Part #
120 47
Ref Part #
3141 0224 00

Nut - Side Bolt
Water Flushing Tube
RMT Part #
120 48
Ref Part #
3161 0376 00

Water Flushing Tube
Adapter
RMT Part #
120 49
Ref Part #
3161 0821 00

Adapter
O Ring
RMT Part #
120 50
Ref Part #
0663 2124 00

O Ring
Hose Nipple - Water
RMT Part #
120 51
Ref Part #
3161 0822 00

Hose Nipple - Water
Coupling Nut
RMT Part #
120 52
Ref Part #
3161 0823 00

Coupling Nut
Side Bolt
RMT Part #
120FZ 53
Ref Part #
3115 2240 00

Side Bolt
