Spare Parts for TEX 10 PS KL - Pick Hammer

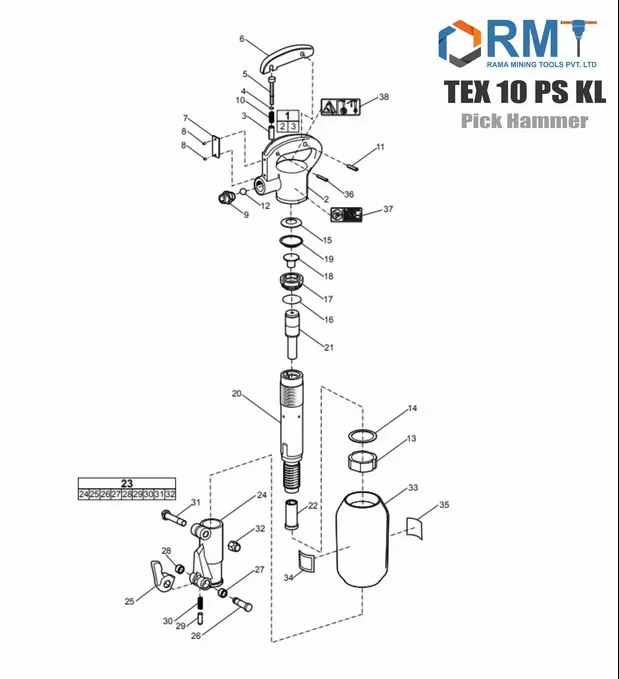

TEX 10 PS KL - Pick Hammer
TEX 10 PS KL - Pick Hammer
Handle Complete
Ref Part #
3362 2600 13
Handle Complete
Handle
Ref Part #
-
Handle
Bushing
Ref Part #
3360 3126 61
Bushing
O - Ring
Ref Part #
0663 9136 00
O - Ring
Valve Stem
Ref Part #
3360 1644 85
Valve Stem
Trigger
Ref Part #
3360 1644 86
Trigger
Data Plate
Ref Part #
-
Data Plate
Screw
Ref Part #
0244 4144 00
Screw
Nipple
Ref Part #
9000 0343 00
Nipple
Spring
Ref Part #
3310 1379 00
Spring
Spring Pin
Ref Part #
0108 1357 00
Spring Pin
Ball
Ref Part #
3310 1380 00
Ball
Nut
Ref Part #
Ref
Nut
Lock Washer
Ref Part #
3362 2644 44
Lock Washer
Disc Spring
Ref Part #
0384 3437 00
Disc Spring
O - Ring
Ref Part #
0663 2101 55
O - Ring
Valve Housing
Ref Part #
3360 9913 22
Valve Housing
Main Valve
Ref Part #
3360 1646 84
Main Valve
Cover
Ref Part #
3362 2600 10
Cover
Cylinder
Ref Part #
3362 2600 06
Cylinder
Piston
Ref Part #
3360 9231 04
Piston
Tool Chuck
Ref Part #
3360 1644 80
Tool Chuck
Fronthead Complete (22 - 30)
Ref Part #
3360 0704 88
Fronthead Complete (22 - 30)
Front Head
Ref Part #
3360 3126 63
Front Head
Tool Retainer
Ref Part #
3360 9945 24
Tool Retainer
Pin
Ref Part #
3360 3125 22
Pin
Bushing Inner Dia 15 mm
Ref Part #
3360 1644 89
Bushing Inner Dia 15 mm
Bushing Inner Dia 13 mm
Ref Part #
3360 1644 90
Bushing Inner Dia 13 mm
Plunger
Ref Part #
3360 3125 26
Plunger
Spring
Ref Part #
3310 1378 00
Spring
Hex Socket Screw
Ref Part #
0211 5161 85
Hex Socket Screw
Lock Nut
Ref Part #
0292 1408 00
Lock Nut
Silencer
Ref Part #
3310 1345 00
Silencer
Label
Ref Part #
0690 1356 00
Label
Sound Power Label
Ref Part #
-
Sound Power Label
Spring Pin
Ref Part #
0108 1298 00
Spring Pin
Safety Label
Ref Part #
3310 1602 00
Safety Label
Eject Warning Label
Ref Part #
3310 1572 00
Eject Warning Label
