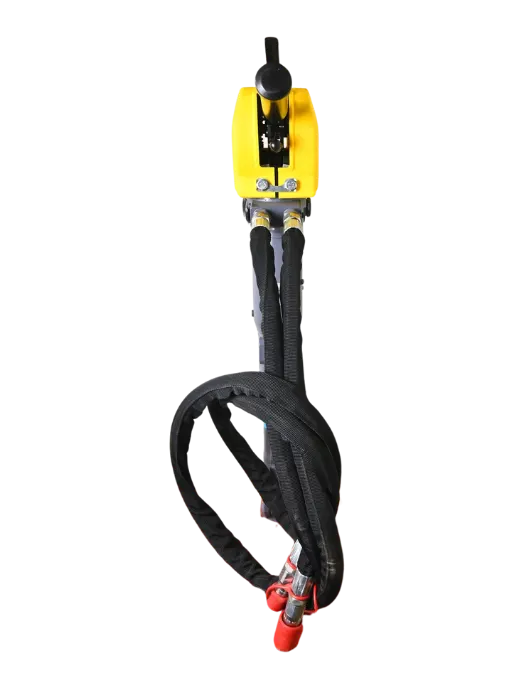

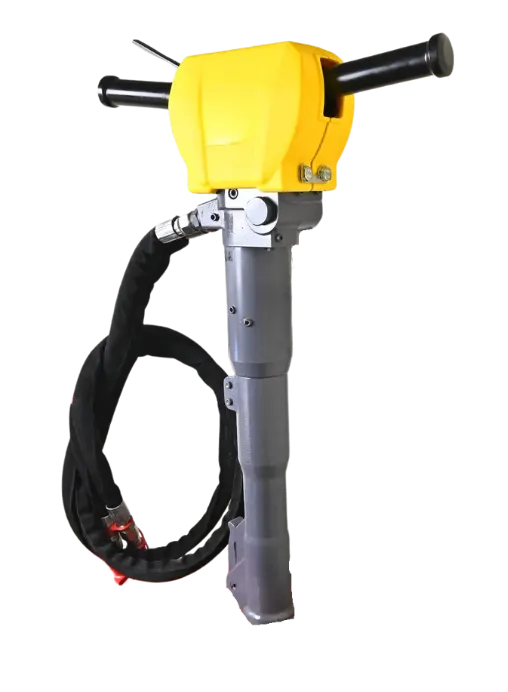

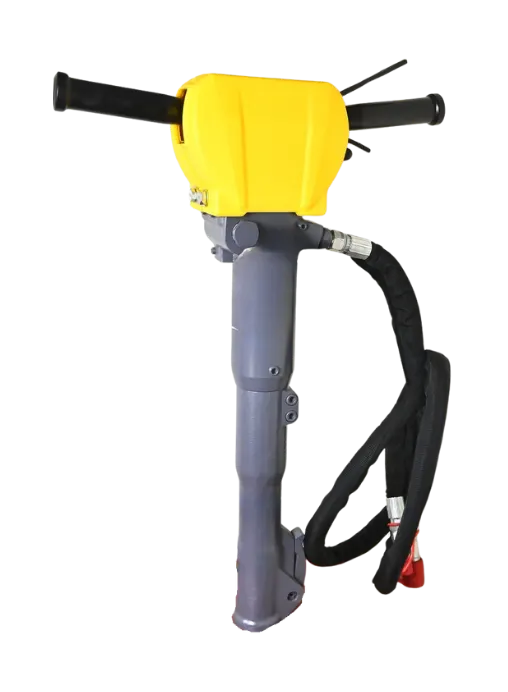

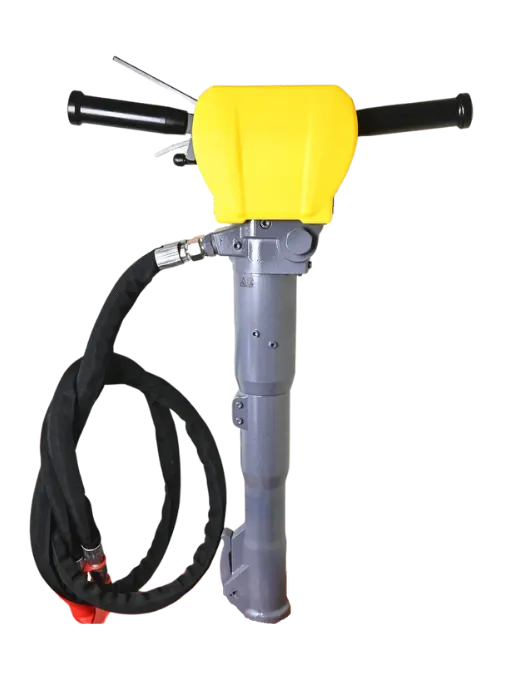

The LH 280 E Hydraulic Rock Breaker is designed for heavy-duty concrete, asphalt, rock and demolition work. Its compact handheld design makes it suitable for trenches, road repairs, construction sites and restricted working areas.
With an impact rate of approximately 1350–1750 blows per minute, this hydraulic breaker delivers strong and consistent breaking performance.
Technical Specification
| Model # | LH 280 E | |
| Breaker type | Vibro-reduced | |
| Weight | 32.5 kg | 71.65 lbs |
| Length | 765 mm | 30.12" |
| Oil flow | 20–30 l/min | |
| Working pressure | 110–125 bar | 1596–1813 psi |
| Back Pressure - max | 15 bar | 218 psi |
| Impact rate | 1350–1750 bpm | |
| Vibration level 3 axes | 4.6 m/s² | |
| Sound power level guaranteed | 107 dB(A) | |
| Sound pressure level | 94 Lp dB(A) | |
| Shank size: Hex 1801 3643 61 | 28 × 160 mm | 1 1⁄8 x 6 1⁄4'' |
| Shank size: Hex 1801 3643 63 | 32 × 160 mm | 1 1⁄4 x 6 1⁄4'' |
