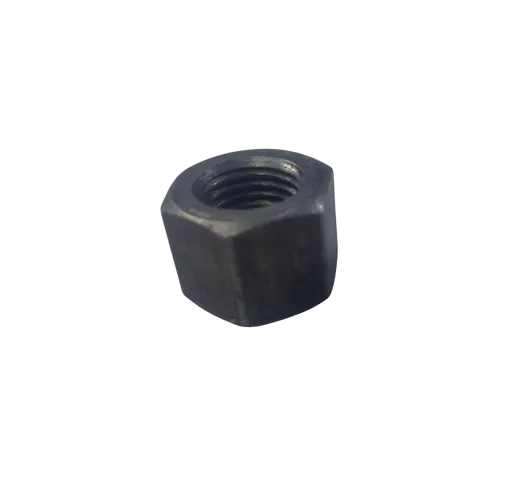

Nut - Backhead Bolt

R006131
Nut - Backhead Bolt
Nut - Backhead Bolt

Technical Specification

RMT Part # 1230 07
Ref Part # R006131
Description Nut - Backhead Bolt
Compatible With RMT 1230 | CP 1230
OEM Interchangeability Yes
Availability RMT make
