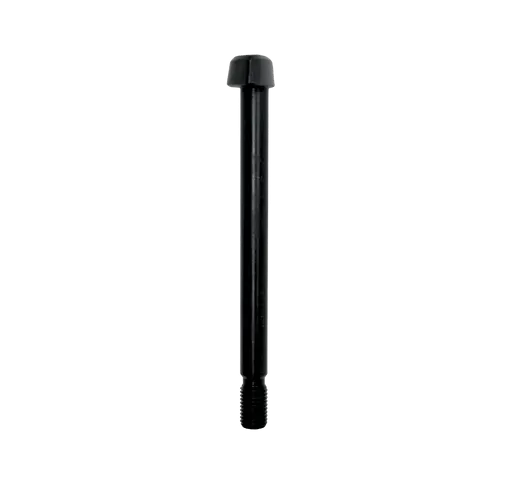

Bolt - Fronthead

R005684
Bolt - Fronthead
Bolt - Fronthead

Technical Specification

RMT Part # 117 25
Ref Part # R005684
Description Bolt - Fronthead
Compatible With RMT 117 | CP 117
OEM Interchangeability Yes
Availability RMT make
