LH 230E Spare Parts


Accumulator body
Ref Part#
3371 8210 27

Accumulator body

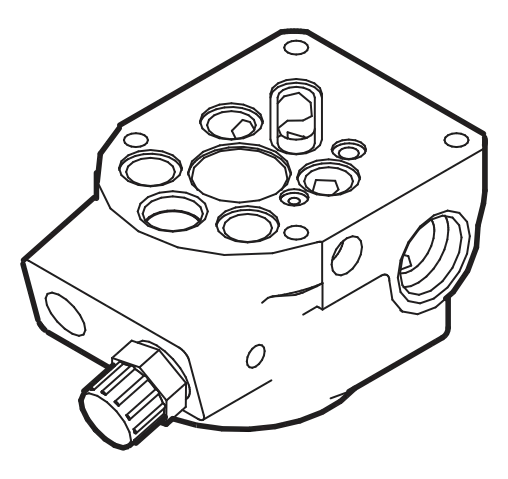

Valve housing complete
Ref Part#
3371 8210 26

Valve housing complete
Valve housing
Ref Part#
-

Valve housing
Check valve screw
Ref Part#
3371 8201 15

Check valve screw
Ball
Ref Part#
3371 8207 17

Ball
Seal ring
Ref Part#
3371 8207 18

Seal ring
Fitting
Ref Part#
3371 8147 33

Fitting
Fitting
Ref Part#
3371 8131 41

Fitting
Cylinder complete
Ref Part#
3371 8210 28

Cylinder complete
Cylinder
Ref Part#
-

Cylinder
Diaphragm
Ref Part#
3371 8140 52

Diaphragm
Charging screw
Ref Part#
3371 8131 03

Charging screw
Screw
Ref Part#
3371 8177 20

Screw
Seal ring
Ref Part#
3371 8147 09

Seal ring
Protective cap
Ref Part#
3371 8137 10

Protective cap
Screw
Ref Part#
3371 8147 23

Screw
O-ring
Ref Part#
3371 8207 03

O-ring
Spool socket
Ref Part#
3371 8202 67

Spool socket
O-ring
Ref Part#
3371 8207 02

O-ring
Spool
Ref Part#
3371 8202 69

Spool
Guide socket
Ref Part#
3371 8202 66

Guide socket
O-ring
Ref Part#
3371 8207 62

O-ring
O-ring
Ref Part#
3371 8207 04

O-ring
O-ring
Ref Part#
3371 8207 05

O-ring
Seal ring
Ref Part#
3371 8057 14

Seal ring
Nipple, standard
Ref Part#
3371 8057 11

Nipple, standard

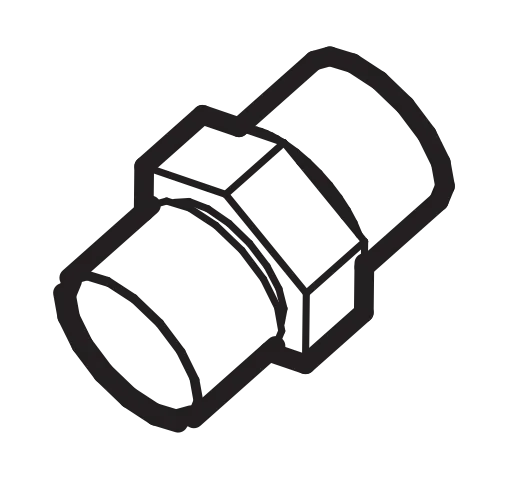

Nipple optional
Ref Part#
3371 8180 20

Nipple optional
Trigger rod
Ref Part#
3371 8201 36

Trigger rod
Packing gland
Ref Part#
3371 8141 20

Packing gland
Spring
Ref Part#
3371 8201 37

Spring
O-ring
Ref Part#
3371 8147 00

O-ring
O-ring
Ref Part#
3371 8147 02

O-ring
Seal
Ref Part#
3371 8055 03

Seal
Back-up ring
Ref Part#
3371 8147 01

Back-up ring
Circlip
Ref Part#
3371 8147 12

Circlip
Circlip
Ref Part#
3371 8147 32

Circlip
Shim
Ref Part#
3371 8207 00

Shim
Trigger spool
Ref Part#
3371 8201 08

Trigger spool
Protective cap
Ref Part#
3371 8137 09

Protective cap
O-ring
Ref Part#
3371 8177 57

O-ring
O-ring
Ref Part#
3376 1000 84

O-ring
Seal
Ref Part#
3371 8201 76

Seal
Back-up washer
Ref Part#
3371 8201 67

Back-up washer
Lock ring
Ref Part#
3371 8207 27

Lock ring
Wiper
Ref Part#
3371 8207 08

Wiper
Lock ring
Ref Part#
3371 8207 40

Lock ring
O-ring
Ref Part#
3371 8207 25

O-ring
O-ring
Ref Part#
3371 8207 26

O-ring
O-ring
Ref Part#
3371 8147 49

O-ring
Back-up washer
Ref Part#
3371 8157 35

Back-up washer
Piston
Ref Part#
3371 8201 07

Piston
Accumulator cover
Ref Part#
3371 8140 66

Accumulator cover
