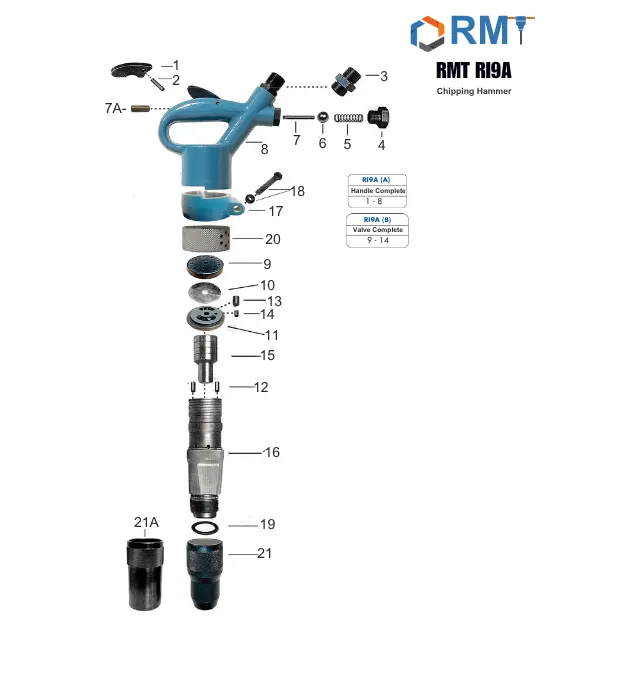

Spare Parts for RMT RI 9A - Chipping Hammer

RMT RI 9A - Chipping Hammer
RMT RI 9A - Chipping Hammer
Throttle Lever
RMT Part #
RI9A 01
Ref Part #
-
Throttle Lever
Throttle Lever Pin
RMT Part #
RI9A 02
Ref Part #
-
Throttle Lever Pin
Air inlet
RMT Part #
RI9A 03
Ref Part #
-
Air inlet
Stop Plug
RMT Part #
RI9A 04
Ref Part #
-
Stop Plug
Push spring of ball
RMT Part #
RI9A 05
Ref Part #
-
Push spring of ball
Ball - Admission (Metal)
RMT Part #
RI9A 06
Ref Part #
-
Ball - Admission (Metal)
Guide Bushing (Bronze)
RMT Part #
RI9A 07
Ref Part #
-
Guide Bushing (Bronze)
Handle (Bare)
RMT Part #
RI9A 08
Ref Part #
-
Handle (Bare)
Distributor Plate (Upper)
RMT Part #
RI9A 09
Ref Part #
-
Distributor Plate (Upper)
Valve - Metal (Pallet)
RMT Part #
RI9A 10
Ref Part #
-
Valve - Metal (Pallet)
Distributor Box (Lower)
RMT Part #
RI9A 11
Ref Part #
-
Distributor Box (Lower)
Dowel Pin
RMT Part #
RI9A 12
Ref Part #
-
Dowel Pin
Pivot Pin
RMT Part #
RI9A 13
Ref Part #
-
Pivot Pin
Linch Pin
RMT Part #
RI9A 14
Ref Part #
-
Linch Pin
Piston
RMT Part #
RI9A 15
Ref Part #
-
Piston
Cylinder
RMT Part #
RI9A 16
Ref Part #
-
Cylinder
Clamp
RMT Part #
RI9A 17
Ref Part #
-
Clamp
Bolt For Clamp
RMT Part #
RI9A 18
Ref Part #
-
Bolt For Clamp
Cylinder Rubber Washer
RMT Part #
RI9A 19
Ref Part #
-
Cylinder Rubber Washer
Deflector
RMT Part #
RI9A 20
Ref Part #
-
Deflector
Retainer (Moil)
RMT Part #
RI9A 21
Ref Part #
-
Retainer (Moil)
Handle Complete (1-8)
RMT Part #
RI9A (A)
Ref Part #
-
Handle Complete (1-8)
