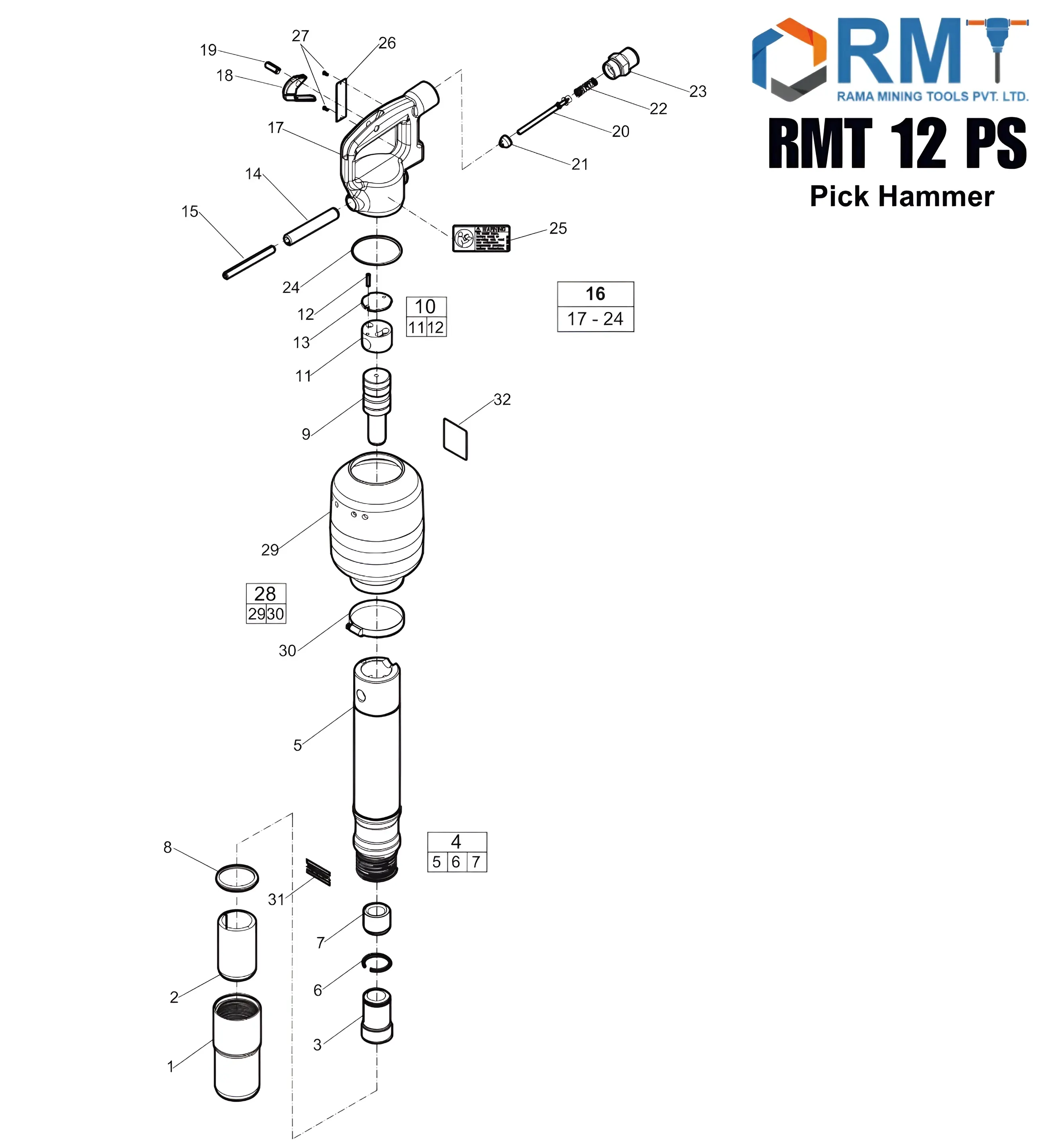

Spare Parts for RMT 12 PS - Pick Hammer

RMT 12 PS - Pick Hammer
Cap
RMT Part#
12PS 01
Ref Part #
3310113700
Cap
Buffer (Hexagon)
RMT Part#
12PS 02
Ref Part #
3310070500
Buffer (Hexagon)
Chuck, Hexagon
RMT Part#
12PS 03
Ref Part #
3310131600
Chuck, Hexagon
Cylinder, complete
RMT Part#
12PS 04
Ref Part #
3310128280
Cylinder, complete
Cylinder
RMT Part#
12PS 05
Ref Part #
-
Cylinder
Locking ring
RMT Part#
12PS 06
Ref Part #
3310087100
Locking ring
Intermediate part
RMT Part#
12PS 07
Ref Part #
3310087000
Intermediate part
O - Ring
RMT Part#
12PS 08
Ref Part #
0663213700
O - Ring
Piston
RMT Part#
12PS 09
Ref Part #
3310128300
Piston
Cover, complete
RMT Part#
12PS 10
Ref Part #
3310128580
Cover, complete
Cover
RMT Part#
12PS 11
Ref Part #
-
Cover
Grooved pin
RMT Part#
12PS 12
Ref Part #
0106095111
Grooved pin
Main valve
RMT Part#
12PS 13
Ref Part #
3310128600
Main valve
Spring pin
RMT Part#
12PS 14
Ref Part #
0108169155
Spring pin
Spring pin
RMT Part#
12PS 15
Ref Part #
0108169164
Spring pin
Backhead, complete
12PS 16
Ref Part #
3310128781
Backhead, complete
Backhead
RMT Part#
12PS 17
Ref Part #
--
Backhead
Trigger
RMT Part#
12PS 18
Ref Part #
3310128800
Trigger
Spring Pin
RMT Part#
12PS 19
Ref Part #
0108135500
Spring Pin
Valve stem
RMT Part#
12PS 20
Ref Part #
3310128100
Valve stem
Inlet valve
RMT Part#
12PS 21
Ref Part #
3310113500
Inlet valve
Spring
RMT Part#
12PS 22
Ref Part #
3310113000
Spring
Nipple
RMT Part#
12PS 23
Ref Part #
3310113100
Nipple
O - Ring
RMT Part#
12PS 24
Ref Part #
0663613700
O - Ring
Safety label
RMT Part#
12PS 25
Ref Part #
3310160200
Safety label
Data plate
RMT Part#
12PS 26
Ref Part #
-
Data plate
Screw
RMT Part#
12PS 27
Ref Part #
0244414400
Screw
Silencer, complete
RMT Part#
12PS 28
Ref Part #
3310128480
Silencer, complete
Silencer
RMT Part#
12PS 29
Ref Part #
--
Silencer
Hose clamp
RMT Part#
12PS 30
Ref Part #
0347611400
Hose clamp
Label
RMT Part#
12PS 31
Ref Part #
0690110102
Label
Sound power label
RMT Part#
12PS 32
Ref Part #
--
Sound power label
