Spare Parts for RMT 133 D Rivet Buster

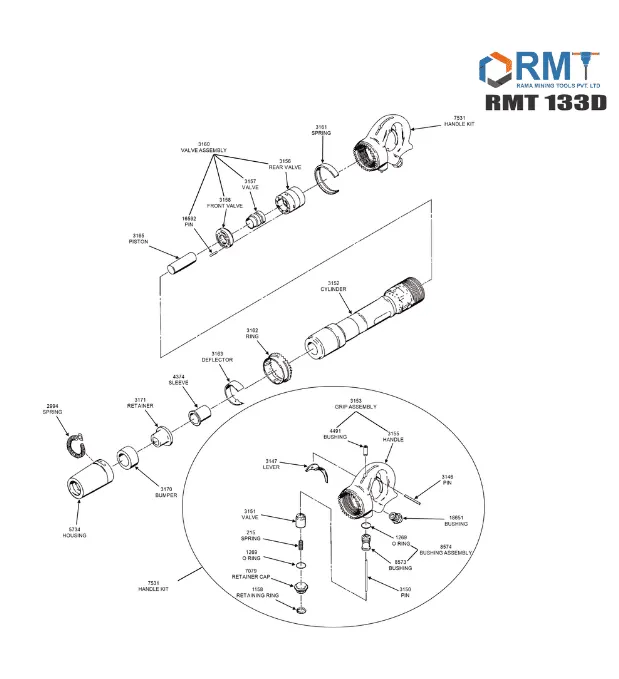

RMT 133 D Rivet Buster
RMT 133 D Rivet Buster
Bushing - Throttle Valve | 4491
RMT Part #
133D 01
Ref Part #
4491
Bushing - Throttle Valve | 4491
Handle - Bare
RMT Part #
133D 02
Ref Part #
-
Handle - Bare
Pin - Throttle Lever | 3146
RMT Part #
133D 03
Ref Part #
3146
Pin - Throttle Lever | 3146
O - Ring Bushing Tube | 1269
RMT Part #
133D 05
Ref Part #
1269
O - Ring Bushing Tube | 1269
Air Inlet Bushing | 285
RMT Part #
133D 04
Ref Part #
285
Air Inlet Bushing | 285
Tube - Bushing | 8573
RMT Part #
133D 06
Ref Part #
8573
Tube - Bushing | 8573
Pin - Push Valve | 3150
RMT Part #
133D 07
Ref Part #
3150
Pin - Push Valve | 3150
Throttle Lever | 3147
RMT Part #
133D 08
Ref Part #
3147
Throttle Lever | 3147
Throttle Valve | 3151
RMT Part #
133D 09
Ref Part #
3151
Throttle Valve | 3151
Spring - Throttle Valve | 215
RMT Part #
133D 10
Ref Part #
215
Spring - Throttle Valve | 215
O - Ring - Plug- Throttle Valve |1269
RMT Part #
133D 11
Ref Part #
1269
O - Ring - Plug- Throttle Valve |1269
Plug - Throttle Valve | 7079
RMT Part #
133D 12
Ref Part #
7079
Plug - Throttle Valve | 7079
Retaining Ring | 1158
RMT Part #
133D 12A
Ref Part #
1158
Retaining Ring | 1158
Spring Clip | 3161
RMT Part #
133D 13
Ref Part #
3161
Spring Clip | 3161
Valve Case - Upper | 3156
RMT Part #
133D 14
Ref Part #
3156
Valve Case - Upper | 3156
Valve Automatic Cycling | 3157
RMT Part #
133D 15
Ref Part #
3157
Valve Automatic Cycling | 3157
LID - Valve Case | 3158
RMT Part #
133D 16
Ref Part #
3158
LID - Valve Case | 3158
Dowel Pin for Valve Case | 16592
RMT Part #
133D 17
Ref Part #
16592
Dowel Pin for Valve Case | 16592
Piston | 17529
RMT Part #
133D 18
Ref Part #
17529
Piston | 17529
Cylinder | 17398
RMT Part #
133D 19
Ref Part #
17398
Cylinder | 17398
Lock Collar | 3162
RMT Part #
133D 20
Ref Part #
3162
Lock Collar | 3162
Exhaust Deflector | 3163
RMT Part #
133D 21
Ref Part #
3163
Exhaust Deflector | 3163
Upper Sleeve | 4374
RMT Part #
133D 22
Ref Part #
4374
Upper Sleeve | 4374
Bumper Rubber | 3170
RMT Part #
133D 24
Ref Part #
3170
Bumper Rubber | 3170
Lower Sleeve | 3171
RMT Part #
133D 23
Ref Part #
3171
Lower Sleeve | 3171
Bumper - PU
RMT Part #
133D 24A
Ref Part #
-
Bumper - PU
Lock Spring | 2994
RMT Part #
133D 25
Ref Part #
2994
Lock Spring | 2994
Retainer | 5734
RMT Part #
133D 26
Ref Part #
5734
Retainer | 5734
Handle Complete | 7531
RMT Part #
133D (A)
Ref Part #
7531
Handle Complete | 7531
Valve Complete (14 - 17) | 3160
RMT Part #
133D (B)
Ref Part #
3160
Valve Complete (14 - 17) | 3160
Buster Sleeve Kit
RMT Part #
133D 25
Ref Part #
-
Buster Sleeve Kit
