Spare Parts for RH 572E Sinker Drill

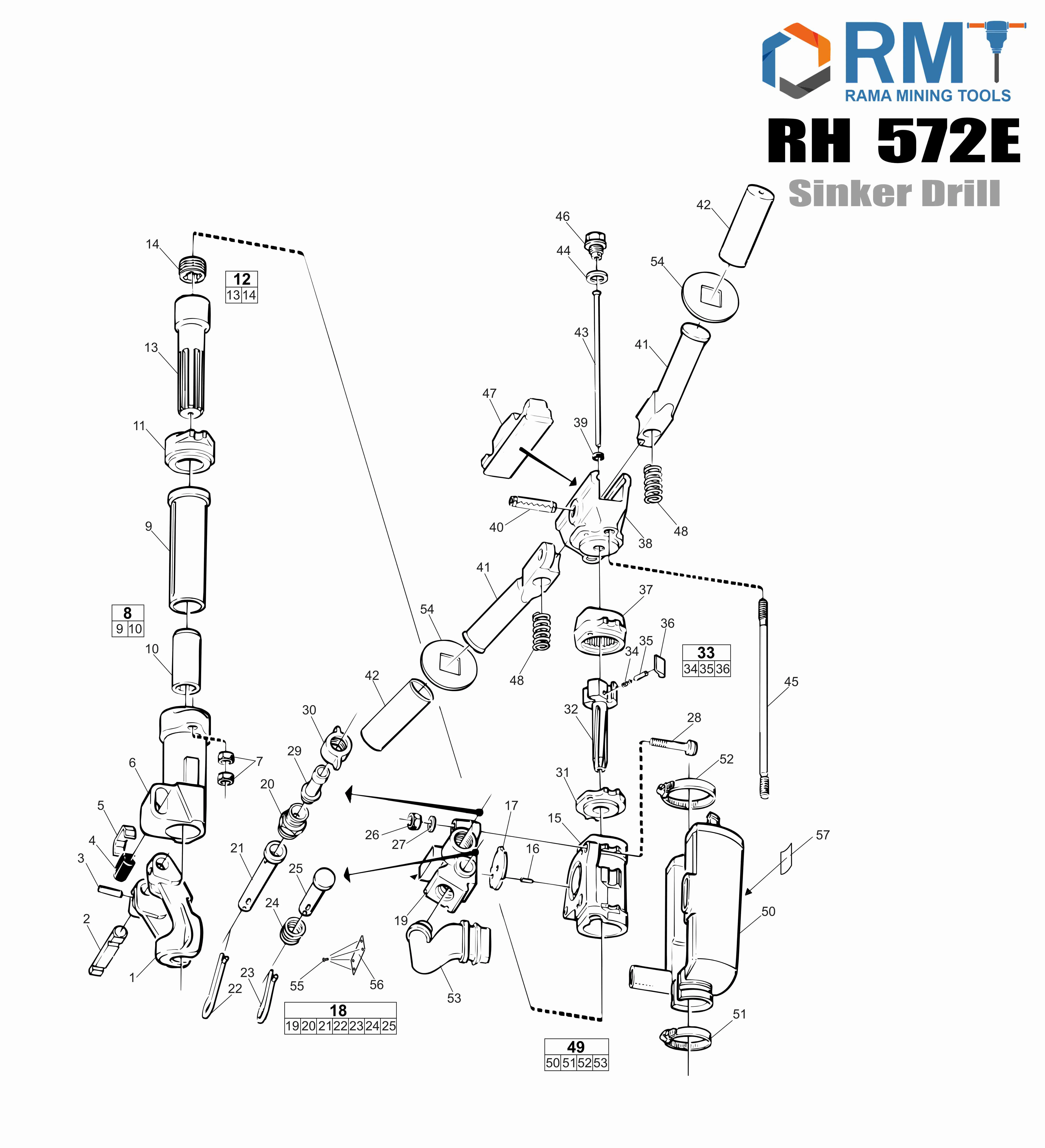

RH 572E Sinker Drill
RH 572E Sinker Drill
Drill Steel Retainer
Ref Part #
3121 0851 00
Drill Steel Retainer
Retainer Pin
Ref Part #
3121 0852 00
Retainer Pin
Tension Pin
Ref Part #
0108 3392 00
Tension Pin
Rubber Buffer
Ref Part #
3121 0030 00
Rubber Buffer
Buffer Plate
Ref Part #
3121 0029 00
Buffer Plate
Fronthead
Ref Part #
3111 0141 00
Fronthead
Nut
Ref Part #
0266 1208 00
Nut
Rotation Chuck Complete
Ref Part #
3111 0185 80
Rotation Chuck Complete
Rotation Chuck
Ref Part #
--
Rotation Chuck
Tool Bushing
Ref Part #
3111 0186 00
Tool Bushing
Intermediate Part
Ref Part #
3111 0143 00
Intermediate Part
Piston Complete
Ref Part #
3111 0162 80
Piston Complete
Piston
Ref Part #
--
Piston
Rifle Nut
Ref Part #
3100 9299 08
Rifle Nut
Cylinder
Ref Part #
3106 0825 00
Cylinder
Spring Pin
Ref Part #
0108 1238 00
Spring Pin
Main Valve
Ref Part #
3101 1586 01
Main Valve
Throttle Housing Complete
Ref Part #
3115 1163 81
Throttle Housing Complete
Throttle Housing
Ref Part #
--
Throttle Housing
Hexagon Nipple
Ref Part #
3115 1924 01
Hexagon Nipple
Throttle Valve
Ref Part #
3115 1190 00
Throttle Valve
Lever
Ref Part #
3115 1191 00
Lever
Lever
Ref Part #
3101 3664 00
Lever
Coil Spring
Ref Part #
3001 3957 01
Coil Spring
Exhaust Valve
Ref Part #
3101 4988 00
Exhaust Valve
Nut
Ref Part #
3000 1345 00
Nut
Lock Washer
Ref Part #
0333 3139 00
Lock Washer
Bolt
Ref Part #
3100 0194 06
Bolt
Hose Nipple
Ref Part #
3115 1543 00
Hose Nipple
Wing Nut
Ref Part #
9000 0338 00
Wing Nut
Cover
Ref Part #
3106 0827 00
Cover
Rifle Bar
Ref Part #
3111 0145 00
Rifle Bar
Pawl Complete
Ref Part #
3115 9200 90
Pawl Complete
Pressure Spring
Ref Part #
3100 9140 02
Pressure Spring
Pawl Pin
Ref Part #
3100 9641 01
Pawl Pin
Pawl
Ref Part #
3101 3159 00
Pawl
Ratchet Ring
Ref Part #
3115 1167 00
Ratchet Ring
Backhead
Ref Part #
3115 1885 00
Backhead
Rubber Packing
Ref Part #
3000 0121 00
Rubber Packing
Spring Pin
Ref Part #
0108 1690 37
Spring Pin
Handle
Ref Part #
3115 1886 00
Handle
Rubber Sleeve
Ref Part #
3310 0852 00
Rubber Sleeve
Air Flushing Tube
Ref Part #
3111 0140 00
Air Flushing Tube
Seal Washer
Ref Part #
3100 9341 00
Seal Washer
Side Bolt
Ref Part #
3115 1890 00
Side Bolt
Plug
Ref Part #
3115 1888 00
Plug
Buffer
Ref Part #
3115 2479 00
Buffer
Spring
Ref Part #
3115 1889 00
Spring
Silencer Complete
Ref Part #
3115 2485 81
Silencer Complete
Silencer
Ref Part #
-
Silencer
Hose Clamp
Ref Part #
0347 6114 00
Hose Clamp
Hose Clamp
Ref Part #
0347 6116 00
Hose Clamp
Connecting Pipe
Ref Part #
3115 1141 00
Connecting Pipe
Rubber Washer
Ref Part #
3115 2478 00
Rubber Washer
Screw
Ref Part #
0244 4144 00
Screw
Data Plate
Ref Part #
--
Data Plate
Label
Ref Part #
0690 1356 00
Label
