Spare Parts for RH 658 5L Sinker Drill

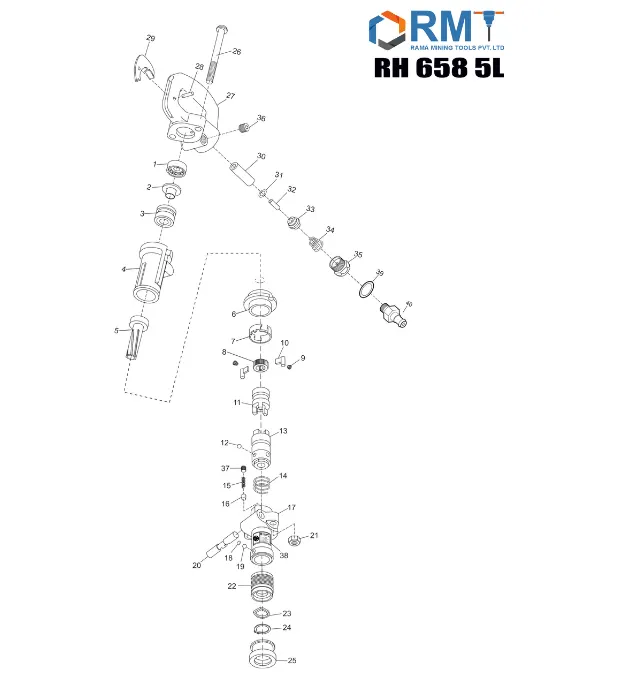

RH 658 5L Sinker Drill
RH 658 5L Sinker Drill
Protective Nut
RMT Part #
658 01
Ref Part #
3100 9643 01
Protective Nut
Sealing Washer - Large
RMT Part #
658 02
Ref Part #
3101 4146 00
Sealing Washer - Large
Adapter
RMT Part #
658 03
Ref Part #
3100 9623 01
Adapter
Sealing Washer - Small
RMT Part #
658 04
Ref Part #
3000 9341 02
Sealing Washer - Small
Packing (Rubber)
RMT Part #
658 05
Ref Part #
3121 0336 00
Packing (Rubber)
Air Flushing Tube
RMT Part #
658 06
Ref Part #
3121 0352 00
Air Flushing Tube
Handle Bolt
RMT Part #
658 07
Ref Part #
3121 0360 00
Handle Bolt
Handle Grip - Rubber
RMT Part #
658 08
Ref Part #
3101 1372 00
Handle Grip - Rubber
Washer
RMT Part #
658 09
Ref Part #
3101 0119 01
Washer
Side Bolt Set - 10-11
RMT Part #
658 (A) (10-11)
Ref Part #
-
Side Bolt Set - 10-11
Dome Nut
RMT Part #
658 10
Ref Part #
3121 0292 00
Dome Nut
Side Bolt
RMT Part #
658 11
Ref Part #
3121 0343 00
Side Bolt
Bracket Set - Left and Right
RMT Part #
658 12
Ref Part #
-
Bracket Set - Left and Right
Backhead Comp. (1-4,13-23, 35)
RMT Part #
658 (B)
Ref Part #
-
Backhead Comp. (1-4,13-23, 35)
Throttle Lever
RMT Part #
658 13
Ref Part #
3115 0573 00
Throttle Lever
O-Ring
RMT Part #
658 14
Ref Part #
0663 2128 00
O-Ring
Lock Washer
RMT Part #
658 15
Ref Part #
3121 0332 00
Lock Washer
Coil Spring
RMT Part #
658 16
Ref Part #
3121 5000 51
Coil Spring
Throttle Pin
RMT Part #
658 17
Ref Part #
3121 0329 00
Throttle Pin
Cap Nut (Wing Nut)
RMT Part #
658 18
Ref Part #
9000 0333 00
Cap Nut (Wing Nut)
Hose Nipple (Air Bend Pipe)
RMT Part #
658 19
Ref Part #
3115 1170 00
Hose Nipple (Air Bend Pipe)
Adapter
RMT Part #
658 20
Ref Part #
9000 0345 00
Adapter
Washer
RMT Part #
658 21
Ref Part #
3115 1045 00
Washer
Throttle Valve
RMT Part #
658 22
Ref Part #
3121 0349 00
Throttle Valve
Backhead
RMT Part #
658 23
Ref Part #
3115 0569 00
Backhead
Main Valve
RMT Part #
658 24
Ref Part #
3106 8681 00
Main Valve
Cover Complete (24 - 27)
RMT Part #
658 (C ) (24-27)
Ref Part #
3106 8680 80
Cover Complete (24 - 27)
Bushing - Bush for Cover
RMT Part #
658 25
Ref Part #
3100 9894 01
Bushing - Bush for Cover
Cover (Valve Cover)
RMT Part #
658 26
Ref Part #
-
Cover (Valve Cover)
Guide Pin
RMT Part #
658 27
Ref Part #
3100 9665 00
Guide Pin
Pawl Complete (28 - 30)
RMT Part #
658 (D) [28-30]
Ref Part #
3115 9200 90
Pawl Complete (28 - 30)
Pressure Spring (Pawl Spring)
RMT Part #
658 28
Ref Part #
3100 9140 02
Pressure Spring (Pawl Spring)
Plunger - Pawl Pin
RMT Part #
658 29
Ref Part #
3100 9641 01
Plunger - Pawl Pin
Pawl
RMT Part #
658 30
Ref Part #
3101 3159 00
Pawl
Rifle Bar
RMT Part #
658 31
Ref Part #
3101 3154 00
Rifle Bar
Tension Pin
RMT Part #
658 32
Ref Part #
0108 1336 00
Tension Pin
Ratchet Box (Ratchet Ring)
RMT Part #
658 33
Ref Part #
3106 8682 00
Ratchet Box (Ratchet Ring)
Guide Disc
RMT Part #
658 34
Ref Part #
3106 8683 00
Guide Disc
Cylinder Comp. (34 - 43 )
RMT Part #
658 (E) (34-43 )
Ref Part #
-
Cylinder Comp. (34 - 43 )
Conical Nut
RMT Part #
658 35
Ref Part #
3006 8734 00
Conical Nut
Lever - Outlet Valve
RMT Part #
658 36
Ref Part #
3115 0577 00
Lever - Outlet Valve
Elastic Pin - Tension Pin
RMT Part #
658 37
Ref Part #
0108 3330 00
Elastic Pin - Tension Pin
Spring - Outlet Valve
RMT Part #
658 38
Ref Part #
3121 0338 00
Spring - Outlet Valve
Outlet Valve
RMT Part #
658 39
Ref Part #
3115 0576 00
Outlet Valve
Cylinder
RMT Part #
658 40
Ref Part #
3121 0337 00
Cylinder
Piston Complete (41 - 42)
RMT Part #
658 (F ) [41-42]
Ref Part #
3100 8478 80
Piston Complete (41 - 42)
Rifle Nut
RMT Part #
658 41
Ref Part #
3100 9299 05
Rifle Nut
Piston
RMT Part #
658 42
Ref Part #
-
Piston
Intermediate Part
RMT Part #
658 43
Ref Part #
3121 0339 00
Intermediate Part
Rotation Chuck Complete (44 - 46)
RMT Part #
658 (G ) [44-46]
Ref Part #
3121 0769 80
Rotation Chuck Complete (44 - 46)
Chuck Nut
RMT Part #
658 44
Ref Part #
3115 1221 00
Chuck Nut
Rotation Chuck
RMT Part #
658 45
Ref Part #
-
Rotation Chuck
Rotation Chuck Bushing
RMT Part #
658 46
Ref Part #
3121 0023 00
Rotation Chuck Bushing
Fronthead Comp. (47 - 52)
RMT Part #
658 (H) (47 - 52)
Ref Part #
-
Fronthead Comp. (47 - 52)
Fronthead
RMT Part #
658 47
Ref Part #
3121 0342 00
Fronthead
Buffer Plate
RMT Part #
658 48
Ref Part #
3121 0029 00
Buffer Plate
Rubber Buffer
RMT Part #
658 49
Ref Part #
3121 0030 00
Rubber Buffer
Tension Pin
RMT Part #
658 50
Ref Part #
0108 3392 00
Tension Pin
Retainer Pin
RMT Part #
658 51
Ref Part #
3121 0852 00
Retainer Pin
Drill Steel Retainer
RMT Part #
658 52
Ref Part #
3121 0851 00
Drill Steel Retainer
Drill Steel Retainer
Ref Part #
3121 0851 00
Drill Steel Retainer
Retainer Pin
Ref Part #
3121 0852 00
Retainer Pin
Tension Pin
Ref Part #
0108 3392 00
Tension Pin
Rubber Buffer
Ref Part #
3121 0030 00
Rubber Buffer
Buffer Plate
Ref Part #
3121 0029 00
Buffer Plate
Dome Nut
Ref Part #
3121 0292 00
Dome Nut
Front Head
Ref Part #
3121 0342 00
Front Head
Rotation Chuck, Complete
Ref Part #
3121 0769 80
Rotation Chuck, Complete
Rotation Chuck Bushing
Ref Part #
3121 0023 00
Rotation Chuck Bushing
Chuck Nut
Ref Part #
3115 1221 00
Chuck Nut
Intermediate Part
Ref Part #
3121 0339 00
Intermediate Part
Piston, Complete
Ref Part #
3100 8478 80
Piston, Complete
Piston
Ref Part #
-
Piston
Rifle Nut
Ref Part #
3100 9299 05
Rifle Nut
Cylinder
Ref Part #
3121 0337 00
Cylinder
Guide Disc
Ref Part #
3106 8683 00
Guide Disc
Ratchet Box
Ref Part #
3106 8682 00
Ratchet Box
Tension Pin
Ref Part #
0108 1336 00
Tension Pin
Rifle Bar
Ref Part #
3101 3154 00
Rifle Bar
Pawl, Complete
Ref Part #
3115 9200 90
Pawl, Complete
Pressure Spring
Ref Part #
3100 9140 02
Pressure Spring
Plunger
Ref Part #
3100 9641 01
Plunger
Pawl
Ref Part #
3101 3159 00
Pawl
Guide Pin
Ref Part #
3100 9665 00
Guide Pin
Cover Complete
Ref Part #
3106 8680 80
Cover Complete
Cover
Ref Part #
--
Cover
Bushing
Ref Part #
3100 9894 01
Bushing
Main Valve
Ref Part #
3106 8681 00
Main Valve
Back Head
Ref Part #
3115 0569 00
Back Head
Throttle Valve
Ref Part #
3121 0349 00
Throttle Valve
Washer
Ref Part #
3115 1045 00
Washer
Adapter
Ref Part #
9000 0345 00
Adapter
Hose Nipple
Ref Part #
3115 1170 00
Hose Nipple
Cap Nut
Ref Part #
9000 0333 00
Cap Nut
Pin
Ref Part #
3121 0329 00
Pin
Coil Spring
Ref Part #
3121 5000 51
Coil Spring
Lock Washer
Ref Part #
3121 0332 00
Lock Washer
O - Ring
Ref Part #
0663 2128 00
O - Ring
Throttle Lever
Ref Part #
3115 0573 00
Throttle Lever
Nut
Ref Part #
3006 8734 00
Nut
Handle Grip
Ref Part #
3101 1372 00
Handle Grip
Washer
Ref Part #
3000 0119 01
Washer
Side Bolt
Ref Part #
3121 0343 00
Side Bolt
Washer
Ref Part #
3115 0574 00
Washer
Air Flushing Tube
Ref Part #
3121 0352 00
Air Flushing Tube
Packing
Ref Part #
3121 0336 00
Packing
Sealing Washer
Ref Part #
3000 9341 02
Sealing Washer
Adapter
Ref Part #
3100 9623 01
Adapter
Sealing Washer
Ref Part #
3101 4146 00
Sealing Washer
Protective Nut
Ref Part #
3100 9643 01
Protective Nut
Handle Bolt
Ref Part #
3121 0360 00
Handle Bolt
O - Ring
Ref Part #
0663 2122 00
O - Ring
Silencer, Complete
Ref Part #
3115 2486 80
Silencer, Complete
Clamp
Ref Part #
0347 6119 00
Clamp
O - Ring
Ref Part #
0663 2100 36
O - Ring
Silencer, Upper Part
Ref Part #
3115 2486 00
Silencer, Upper Part
Clamp
Ref Part #
0347 6122 00
Clamp
O - Ring
Ref Part #
0663 2100 37
O - Ring
Silencer, Lower Part
Ref Part #
3115 1428 00
Silencer, Lower Part
O - Ring
Ref Part #
0663 2100 35
O - Ring
Tension Pin
Ref Part #
0108 3330 00
Tension Pin
Outlet Valve
Ref Part #
3115 0576 00
Outlet Valve
Spring
Ref Part #
3121 0338 00
Spring
Lever For Extra Blowing
Ref Part #
3115 0577 00
Lever For Extra Blowing
O - Ring
Ref Part #
0663 2125 00
O - Ring
Screw
Ref Part #
3115 0127 00
Screw
Noise Level Label
Ref Part #
--
Noise Level Label
Data Plate
Ref Part #
--
Data Plate
Safety Label
Ref Part #
3310 1602 00
Safety Label
