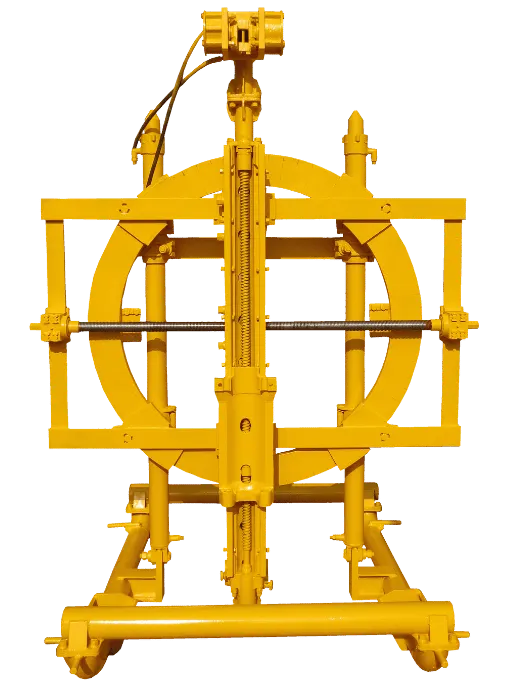

Simba Junior Lateral - Underground Mining Lateral Drilling Rig

The Simba Junior Lateral is a heavy-duty drilling machine preferred by professional miners for all kinds of underground drilling applications. It is designed for high-performance and precision drilling in a confined mining space where bigger drilling rigs can not operate. For uncompromised performance, even in restricted space, the Simba Junior Lateral is the perfect mining operations equipment for narrow vein mining, 360 Degree Drilling Requirement, Precision Drilling, and all types of Drilling Jobs.

Equipped with the RMT 120F Pneumatics Drifter and a robust design, the Simba Junior delivers consistent drilling with high occurrence and cost effectiveness, with the requirement of low maintenance and manual labour. This underground drill machine ensures reliable performance, even in the most challenging conditions.

Simba Junior (Lateral) | Long hole Drilling Tool

Technical Specification

Model	Simba Junior (Lateral)
Weight	1050 kg	2315 lb
Pneumatic drifter	RMT 120F
Hole diameter (Opt 1)	48 – 57 mm	2 - 2.24"
Hole diameter (Opt 2*)	64 mm	2.5"
Drill rod size	R32, R38, T38
Drill rod length	1.20 metres	4 ft
Drilling length	Opt 1 - 30 mtr / Opt 2* - 2 mtr	98 ft / 6.56 ft
Air consumption	400 cfm	189 l/s
Drilling rate	1 meter in 4 minutes
Feed beam	Screw feed type RMT 46 (BMS 46)
Rod catcher	Pneumatic Type RMT 10 (BSP 10)
Ring size	1500 mm	59"
Skid frame	4" Pipe
Dimension (L x W x H)	1780 x 1550 x 2600 mm	70 X 61 X 102"
Column bar height	Closed – 2200 mm, Open – 3700 mm	Closed – 87″, Open – 146″

Where it is used?

Percussion drill machine for tunnelling
Drifting & long hole drilling
Cable bolting or roof supports
Works in 3 meter height

Key Features

360° drilling with Lateral movement, enabling parallel holes without the need to move the rig.
Compact design to work smoothly even in narrow metal mines.
Higher drilling accuracy helps in a cost-effective mining project.
Attached with 120F Pneumatic Drifter, the best pneumatic drilling machine for consistent drilling.
Low maintenance requirement and higher uptime.
Easy-to-operate controls for improved usability.
Low investment compared to hydraulic drilling rigs.
