RMT CW 190 Crawler Drill Machine for Mining | Pneumatic Crawler Drill - 197

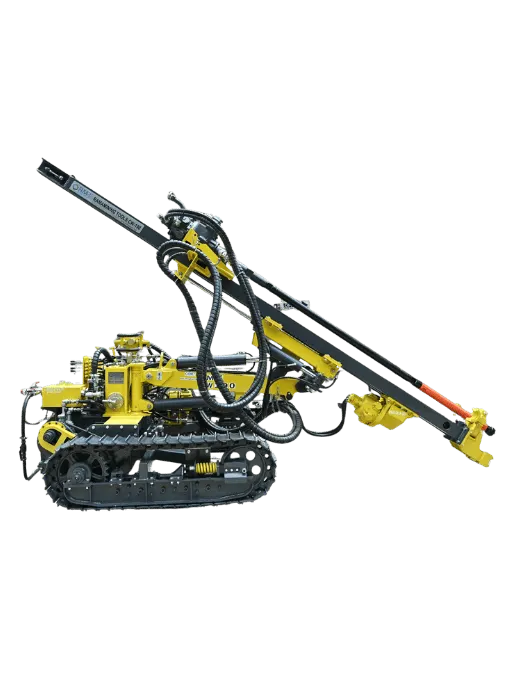

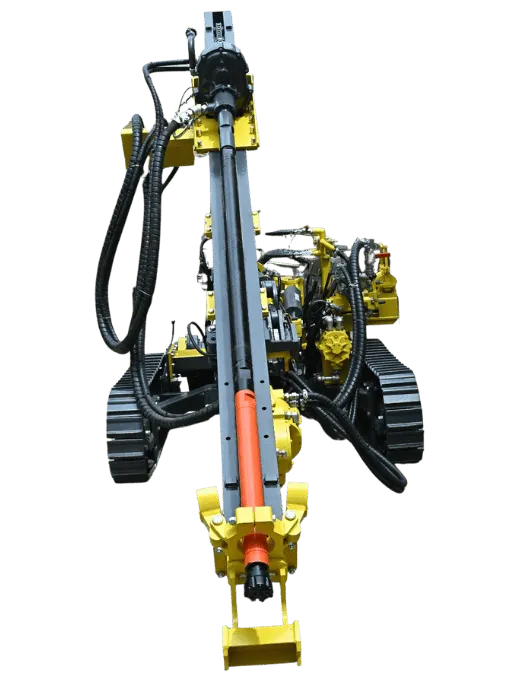

The RMT CW 190 is a track-mounted pneumatic crawler drill for mining and construction drilling solutions. It is equipped with a robust feed system and air motor drive, along with a track-mounted system, which enables efficient drilling in rough terrain.


In demanding environments, the RMT CW190 mining crawler drill machine provides excellent mobility, high drilling capacity, and reliable operation.


If you're looking for a high-performance pneumatic crawler drill, contact us today to find the right model for your application, along with the technical specifications and stock availability

Crawler drilling machine for mining and quarry applications
RMT CW 190
RMT CW 190

Technical Specification

Model # RMT CW 190
Hole capacity 76 - 121 mm
Mounting Crawler mounting
Feed Chain feed driven by air motor and gear box
Self - propulsion Each track is independently driven by an air motor
Type of Drive By air motor & gear box
Tramming speed 0 - 3.2 Km / h
Equipment weight 2900 kg
Gradeability 30 Degree

What is good about it?

  • Pneumatic-powered crawler drill for reliable performance
  • Remote-operated drilling machine for enhanced safety
  • Lower maintenance cost compared to hydraulic drilling rigs
  • Track mounted to access difficult terrains

Key Features

  • Supported with a 120°F pneumatic drifter or DTH Hammer for drilling purposes.
  • RMT 120F Pneumatic Drifter:  - For hole dia. of 64 mm to 75 mm and hole depth up to 25 metres.
  • RMT DTH Hammer:  - For hole dia. from 75 mm to 140 mm and hole depth of 30 metres.
  • Equivalent to the OEM model Epiroc LM 100 with 100% interchangeable spare parts.
