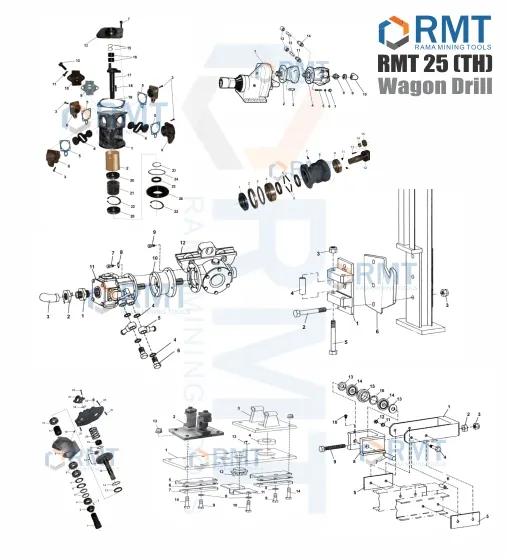

Spare Parts for RMT 25 (TH) Top Hammer Wagon Drills

RMT 25 (TH) Top Hammer Wagon Drills
RMT 25 (TH) Top Hammer Wagon Drills
Air Motor Complete
Ref. Part #
8973 1610 14
Air Motor Complete
Planetary Gear Complete
Ref. Part #
3161 0872 80
Planetary Gear Complete
Rotation Unit Complete
Ref. Part #
8032 0101 03
Rotation Unit Complete
Chain Feed Complete
Ref. Part #
-
Chain Feed Complete
Feed Unit
Ref. Part #
9718 4259 78
Feed Unit
Gear Housing Complete
Ref. Part #
-
Gear Housing Complete
Worm Gear Box - Chain Feed
Ref. Part #
3162 1663 82 / 80
Worm Gear Box - Chain Feed
Drill Steel Support for DTH
Ref. Part #
3162 1110 85A
Drill Steel Support for DTH
Drill Steel Support for TH
Ref. Part #
3162 1110 84
Drill Steel Support for TH
Chain Tensioner Complete
Ref. Part #
3162 0470 81
Chain Tensioner Complete
Cradle Comp. for DTH
Ref. Part #
3161 1431 80
Cradle Comp. for DTH
Cradle Comp. for TH
Ref. Part #
3162 1175 80
Cradle Comp. for TH
Feed Beam Holder Complete
Ref. Part #
3163 2704 80
Feed Beam Holder Complete
Boom Head Complete
Ref. Part #
3217 0512 80
Boom Head Complete
Drill Tube Support Complete
Ref. Part #
-
Drill Tube Support Complete
Traction Unit
Ref. Part #
3163 2425 80
Traction Unit
Piston Motor Complete - 17 Teeth
Ref. Part #
4450 0541 88
Piston Motor Complete - 17 Teeth
Piston Motor Complete - 9 Teeth
Ref. Part #
4450 0776 80
Piston Motor Complete - 9 Teeth
Crankcase Feed Rotation & Traction (Modified)
Ref. Part #
-
Crankcase Feed Rotation & Traction (Modified)
Main Valve Liner
Ref. Part #
4450 0712 00
Main Valve Liner
Screw (Modified)
Ref. Part #
0211 1324 00 (M)
Screw (Modified)
Double Piston
Ref. Part #
4350 2222 00
Double Piston
Gasket
Ref. Part #
4450 0544 00
Gasket
Cylinder
Ref. Part #
4450 0543 00
Cylinder
Screw (Modified)
Ref. Part #
0211 1324 00 (M)
Screw (Modified)
Gasket
Ref. Part #
4450 0546 00
Gasket
Distributor Plate
Ref. Part #
4450 0752 00
Distributor Plate
Spring Washer
Ref. Part #
0333 2130 00
Spring Washer
Screw (Modified)
Ref. Part #
0211 1361 00 (M)
Screw (Modified)
Cover
Ref. Part #
4350 2223 00
Cover
Circlip 16 mm
Ref. Part #
-
Circlip 16 mm
Needle Bearing (Modified)*
Ref. Part #
5053 0108 00 (M)
Needle Bearing (Modified)*
Crankshaft Feed Motor - 17 Teeth (Modified)*
Ref. Part #
9718 2600 00 (M)
Crankshaft Feed Motor - 17 Teeth (Modified)*
Crankshaft Rotation - 11 Teeth (Modified)*
Ref. Part #
9718 5027 00 (M)
Crankshaft Rotation - 11 Teeth (Modified)*
Crankshaft For Motor BBE 57 - 9 Teeth (Modified)*
Ref. Part #
4350 2009 00 (M)
Crankshaft For Motor BBE 57 - 9 Teeth (Modified)*
Key
Ref. Part #
0337 2592 00
Key
Gasket
Ref. Part #
4450 0550 00
Gasket
Ball Bearing
Ref. Part #
0502 3218 00
Ball Bearing
Main Valve
Ref. Part #
4450 0547 00
Main Valve
Circlip (Internal)
Ref. Part #
0333 2157 00
Circlip (Internal)
Circlip (External)
Ref. Part #
0335 1132 00
Circlip (External)
O-Ring
Ref. Part #
0663 6137 00
O-Ring
Seal Ring
Ref. Part #
0666 2261 00
Seal Ring
Seal Ring Retainer
Ref. Part #
4450 0551 00
Seal Ring Retainer
Planetary Gear Complete - BBR4 / Five Start Feed Unit
Ref. Part #
3161 0872 80
Planetary Gear Complete - BBR4 / Five Start Feed Unit
Lock Nut
Ref. Part #
3161 0638 00
Lock Nut
Seal Ring
Ref. Part #
0666 6622 00
Seal Ring
Shrim Washer
Ref. Part #
3161 0639 00
Shrim Washer
Roller Bearing
Ref. Part #
0509 0509 00
Roller Bearing
Spacer Ring
Ref. Part #
3161 0711 00
Spacer Ring
Washer
Ref. Part #
3161 0712 00
Washer
Grease Nipple
Ref. Part #
0544 2162 00
Grease Nipple
Gear Housing
Ref. Part #
3161 0872 00
Gear Housing
Roller Bearing
Ref. Part #
0509 0109 00
Roller Bearing
Spacer Ring
Ref. Part #
3161 0748 00
Spacer Ring
Gear Shaft
Ref. Part #
3161 0873 00
Gear Shaft
Pin
Ref. Part #
3161 0747 00
Pin
Needle Bearing
Ref. Part #
3161 0750 00
Needle Bearing
Gear Wheel
Ref. Part #
3161 0874 00
Gear Wheel

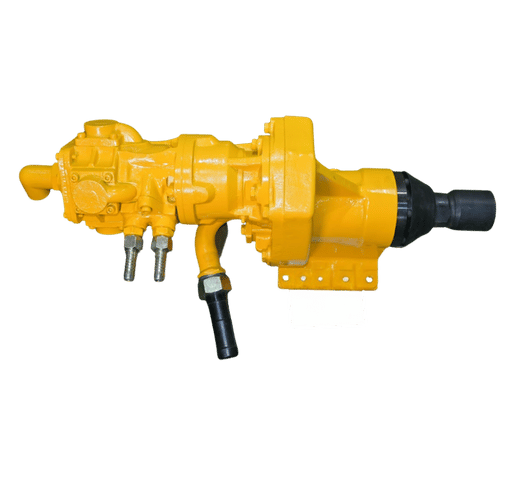

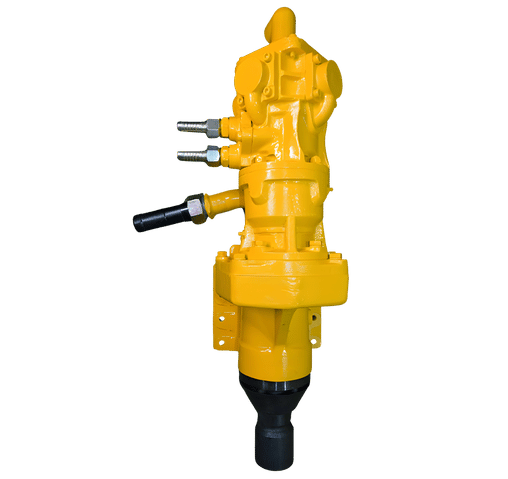

Rotation Unit Complete BBR 4 - DTH & D40 Version
Ref. Part #
8032 0101 03
Rotation Unit Complete BBR 4 - DTH & D40 Version
Gear Housing
Ref. Part #
-
Gear Housing
Planetary Gearing
Ref. Part #
3161 0872 80
Planetary Gearing
Screw
Ref. Part #
0147 1404 00
Screw
Piston Motor Complete - 11 Teeth
Ref. Part #
4450 0776 84
Piston Motor Complete - 11 Teeth
Stud
Ref. Part #
3161 0625 00
Stud
Washer
Ref. Part #
0301 2144 00
Washer
Lock Nut
Ref. Part #
0291 1111 00
Lock Nut
Nipple
Ref. Part #
0603 5563 00
Nipple
Nut
Ref. Part #
0623 7208 00
Nut
Elbow
Ref. Part #
0560 4406 00
Elbow
Nipple
Ref. Part #
9000 0344 00
Nipple
Hose Nipple
Ref. Part #
9000 0325 00
Hose Nipple
Coupling Nut
Ref. Part #
9000 0333 00
Coupling Nut
Nipple (Modified)
Ref. Part #
3161 0973 00 (M)
Nipple (Modified)
Air Connection
Ref. Part #
20 mm to motor
Air Connection
Chain Feed Complete 2.2 mtr
Ref. Part #
-
Chain Feed Complete 2.2 mtr
Chain Feed Complete 3 mtr
Ref. Part #
-
Chain Feed Complete 3 mtr
Chain Feed Complete 5 mtr
Ref. Part #
-
Chain Feed Complete 5 mtr
Spike (Modified)*
Ref. Part #
-
Spike (Modified)*
Drill Tube Support Attachment with Parts
Ref. Part #
-
Drill Tube Support Attachment with Parts
Drill Steel Support Comp.
Ref. Part #
-
Drill Steel Support Comp.
Drill Steel Support Comp
Ref. Part #
9718 3556 80A
Drill Steel Support Comp
Drill Steel Support Comp
Ref. Part #
3162 1110 84A
Drill Steel Support Comp
Drill Steel Support (38 mm) - Pneumatic Version
Ref. Part #
-
Drill Steel Support (38 mm) - Pneumatic Version
Drill Steel Support (32 mm) - Pneumatic Version
Ref. Part #
-
Drill Steel Support (32 mm) - Pneumatic Version
Feed Beam
Ref. Part #
-
Feed Beam
Feed Beam (2.2 Mtrs.)
Ref. Part #
-
Feed Beam (2.2 Mtrs.)
Feed Beam (3.0 Mtrs.)
Ref. Part #
-
Feed Beam (3.0 Mtrs.)
Feed Beam (5.0 Mtrs.)
Ref. Part #
-
Feed Beam (5.0 Mtrs.)
Cradle Complete
Ref. Part #
-
Cradle Complete
Cradle Complete BBR - 4 DTH & D40 Version
Ref. Part #
9718 4855 88
Cradle Complete BBR - 4 DTH & D40 Version
Cradle Complete BBC-120F (TH & T25 )
Ref. Part #
9718 4856 83
Cradle Complete BBC-120F (TH & T25 )
Chain Tensioner, Complete
Ref. Part #
3162 0470 00
Chain Tensioner, Complete
Feed Unit - (Worm Gear With Planetary & Motor, Complete)
Ref. Part #
9718 4259 78
Feed Unit - (Worm Gear With Planetary & Motor, Complete)
Rotation Unit Complete BBR 4 - DTH & D40 Version
Ref. Part #
8032 0101 03
Rotation Unit Complete BBR 4 - DTH & D40 Version
Jockey Pin With Parts
Ref. Part #
-
Jockey Pin With Parts
Chain
Ref. Part #
-
Chain
Feed Unit - Worm Gear With Planetary and Air Motor
Ref. Part #
9718 4259 78
Feed Unit - Worm Gear With Planetary and Air Motor
Nipple
Ref. Part #
0603 5664 00
Nipple
Tube Nut
Ref. Part #
0623 7209 00
Tube Nut
Elbow
Ref. Part #
0560 4407 00
Elbow
Copper Washer
Ref. Part #
0653 1163 00
Copper Washer
Banjo Nipple
Ref. Part #
3175 0295 00
Banjo Nipple
Pressure Screw
Ref. Part #
0627 5126 00
Pressure Screw
Screw
Ref. Part #
0147 1363 00
Screw
Spring Washer
Ref. Part #
0333 2130 00
Spring Washer
Screw
Ref. Part #
0147 1402 00
Screw
Planetary Gearing
Ref. Part #
3161 0872 80
Planetary Gearing
Worm Gear Complete, Five Start
Ref. Part #
3162 1663 80
Worm Gear Complete, Five Start
Adapter
Ref. Part #
3161 0893 00
Adapter
Seal Ring
Ref. Part #
3161 0852 00
Seal Ring
Screw
Ref. Part #
0211 1367 00
Screw
Clamp Ring
Ref. Part #
3161 0619 00
Clamp Ring
Seal Ring
Ref. Part #
3161 0753 00
Seal Ring
Gasket
Ref. Part #
3161 0622 00
Gasket
Gasket
Ref. Part #
3161 0621 00
Gasket
Ball Bearing
Ref. Part #
0504 0602 00
Ball Bearing
Gear Housing
Ref. Part #
3161 0626 00
Gear Housing
Grease Nipple
Ref. Part #
0544 2162 00
Grease Nipple
Spacer Sleeve
Ref. Part #
3161 0627 00
Spacer Sleeve
Ball Bearing
Ref. Part #
0502 2112 00
Ball Bearing
Spacer Ring
Ref. Part #
3161 0630 00
Spacer Ring
O-Ring
Ref. Part #
0663 9194 00
O-Ring
Spring Complete
Ref. Part #
3161 0628 80
Spring Complete
Spindle
Ref. Part #
-
Spindle
Bushing
Ref. Part #
3161 0755 00
Bushing
O-Ring
Ref. Part #
0663 3131 00
O-Ring
Seal Ring
Ref. Part #
3161 0634 00
Seal Ring
Spring
Ref. Part #
3161 0635 00
Spring
Parallel Pin
Ref. Part #
0102 0410 00
Parallel Pin
Cover
Ref. Part #
3161 0631 00
Cover
Insert
Ref. Part #
-
Insert
Screw
Ref. Part #
0147 1407 00
Screw
Plug
Ref. Part #
0686 6103 00
Plug
Air Inlet Tube
Ref. Part #
3161 0636 00
Air Inlet Tube
Worm Gear Box Complete - Single Start (1 to 42)
Ref. Part #
3162 1663 82
Worm Gear Box Complete - Single Start (1 to 42)
Worm Gear Box Complete - Five Start (1 to 27)
Ref. Part #
3162 1663 80
Worm Gear Box Complete - Five Start (1 to 27)
Shaft Complete with Worm Gear - Single Start
Ref. Part #
3162 0475 80
Shaft Complete with Worm Gear - Single Start
Shaft only for Single Start
Ref. Part #
3162 0475 00
Shaft only for Single Start
Worm Gear, Single Start (Bronze)
Ref. Part #
3162 0475 00
Worm Gear, Single Start (Bronze)
Shaft Complete with Worm Gear - Five Start
Ref. Part #
3162 1667 80
Shaft Complete with Worm Gear - Five Start
Shaft only for Five Start
Ref. Part #
3162 1667 00
Shaft only for Five Start
Worm Gear, Five Start (Bronze Repair)
Ref. Part #
3162 1667 00
Worm Gear, Five Start (Bronze Repair)
Bolt
Ref. Part #
3162 0481 00
Bolt
Spring Washer
Ref. Part #
-
Spring Washer
Nut (Modified)*
Ref. Part #
-
Nut (Modified)*
Seal Ring
Ref. Part #
0666 4393 00
Seal Ring
Sprocket
Ref. Part #
9718 3512 00
Sprocket
Cover
Ref. Part #
3162 0477 00
Cover
Screw
Ref. Part #
0147 1325 00
Screw
Shaft
Ref. Part #
3162 1551 00
Shaft
Washer
Ref. Part #
3162 1581 00
Washer
Ball Bearing
Ref. Part #
0502 2229 00
Ball Bearing
Pulley Wheel
Ref. Part #
9718 3513 00
Pulley Wheel
Spring Washer
Ref. Part #
0333 2130 00
Spring Washer
Stop Screw
Ref. Part #
3162 0097 00
Stop Screw
Worm Shaft, Single Start
Ref. Part #
9718 3507 00
Worm Shaft, Single Start
Worm Shaft, Five Start
Ref. Part #
3162 1664 00
Worm Shaft, Five Start
Ball Bearing
Ref. Part #
0502 1110 00
Ball Bearing
Seal Ring
Ref. Part #
0666 4432 00
Seal Ring
Gear Housing
Ref. Part #
3162 1663 00
Gear Housing
Gasket
Ref. Part #
0653 1115 00
Gasket
Plug
Ref. Part #
0686 3703 00
Plug
Ball Bearing
Ref. Part #
0502 2107 00
Ball Bearing
Cover
Ref. Part #
3162 0486 00
Cover
Screw
Ref. Part #
0147 1325 00
Screw
Ball Bearing
Ref. Part #
0502 1109 00
Ball Bearing
Nut
Ref. Part #
0266 1116 00
Nut
Ball Bearing
Ref. Part #
0504 2105 00
Ball Bearing
Washer
Ref. Part #
0301 2204 00
Washer
Split Pin
Ref. Part #
0111 1449 00
Split Pin
Nut
Ref. Part #
3162 0484 00
Nut
Cover
Ref. Part #
3162 0485 00
Cover
Bolt
Ref. Part #
3162 1068 00
Bolt
Clamp
Ref. Part #
3162 1199 00
Clamp
Circlip Int.
Ref. Part #
-
Circlip Int.
Drill Steel Support Comp. With Plate & Bolt (102mm)
Ref. Part #
3162 1110 85A
Drill Steel Support Comp. With Plate & Bolt (102mm)
Washer
Ref. Part #
3161 0143 00
Washer
Support Right
Ref. Part #
-
Support Right
Bushing
Ref. Part #
3162 1048 00
Bushing
Shaft
Ref. Part #
3162 1054 00
Shaft
Insert for 102mm (4")
Ref. Part #
9718 3559 00
Insert for 102mm (4")
Screw
Ref. Part #
0147 1489 00
Screw
Spring Pin
Ref. Part #
0108 1301 00
Spring Pin
Locking Rod Complete (Modified)*
Ref. Part #
-
Locking Rod Complete (Modified)*
Bushing
Ref. Part #
3162 1117 00
Bushing
Support Left
Ref. Part #
-
Support Left
Drill Steel Support - 102mm (4")
Ref. Part #
3162 1110 85
Drill Steel Support - 102mm (4")
Drill Tube Support Attachment
Ref. Part #
-
Drill Tube Support Attachment
Drill Steel Support (38 mm) - Pneumatic Version
Ref. Part #
9718 3556 80
Drill Steel Support (38 mm) - Pneumatic Version
Drill Steel Support (32 mm) - Pneumatic Version
Ref. Part #
3162 1110 84
Drill Steel Support (32 mm) - Pneumatic Version
Bolt (Modified)
Ref. Part #
-
Bolt (Modified)
Cover (Modified)
Ref. Part #
-
Cover (Modified)
O-Ring (Modified)
Ref. Part #
0663 6148 00 (M)
O-Ring (Modified)
Screw
Ref. Part #
3142 0264 00
Screw
O-Ring
Ref. Part #
0663 2149 00
O-Ring
Piston (Modified)
Ref. Part #
-
Piston (Modified)
O-Ring (Modified)
Ref. Part #
0663 6135 00 (M)
O-Ring (Modified)
Nut (Modified)
Ref. Part #
-
Nut (Modified)
Seal Ring (Modified)
Ref. Part #
066 59193 00 (M)
Seal Ring (Modified)
Drill Steel Support Hal, 38 mm (1½) Round (Modified)
Ref. Part #
-
Drill Steel Support Hal, 38 mm (1½) Round (Modified)
Drill Steel Support Hal, 32 mm (1¼) Round (Modified)
Ref. Part #
3142 0262 00 M
Drill Steel Support Hal, 32 mm (1¼) Round (Modified)
Cylinder (Modified)
Ref. Part #
-
Cylinder (Modified)
Cylinder and Piston Complete Assembly (Modified)
Ref. Part #
-
Cylinder and Piston Complete Assembly (Modified)
Drill Steel Support (Modified)
Ref. Part #
-
Drill Steel Support (Modified)
Pressure Screw (Modified)
Ref. Part #
0627 5113 00 (M)
Pressure Screw (Modified)
Packing
Ref. Part #
0653 1070 00 M
Packing
Banjo Connection
Ref. Part #
9000 0294 00 M
Banjo Connection
Hose Clamp
Ref. Part #
0347 6104 00 M
Hose Clamp
Air Hose
Ref. Part #
9030 0200 00 M
Air Hose
Bushing for RMT 10
Ref. Part #
3142 0261 00
Bushing for RMT 10
Piston for RMT 10
Ref. Part #
3142 0263 00
Piston for RMT 10
Lock Ring for RMT 10
Ref. Part #
0335 2177 00
Lock Ring for RMT 10
Cover for RMT 10
Ref. Part #
3142 0265 00
Cover for RMT 10
Yoke
Ref. Part #
3162 0470 00
Yoke
Nut
Ref. Part #
0266 1116 00
Nut
Nut
Ref. Part #
0291 1116 00
Nut
Screw
Ref. Part #
0147 1492 00
Screw
Spacer
Ref. Part #
3162 0515 00
Spacer
Spacer Sleeve
Ref. Part #
3162 0471 00
Spacer Sleeve
Shaft
Ref. Part #
3162 0473 00
Shaft
Yoke
Ref. Part #
3162 0469 00
Yoke
Bolt
Ref. Part #
3162 0472 00
Bolt
Lubricating Nipple
Ref. Part #
0544 2162 00
Lubricating Nipple
Spring Washer
Ref. Part #
0333 2143 00
Spring Washer
Nut
Ref. Part #
0266 1114 00
Nut
Washer
Ref. Part #
3162 1581 00
Washer
Ball Bearing
Ref. Part #
0502 2104 00
Ball Bearing
Pulley Wheel
Ref. Part #
9718 3513 00
Pulley Wheel
Circlip
Ref. Part #
0335 2143 00
Circlip
Cradle Plate
Ref. Part #
0335 2143 00
Cradle Plate
Sliding Piece
Ref. Part #
3162 1439 00
Sliding Piece
Shim
Ref. Part #
3162 1434 00
Shim
Guide Rail
Ref. Part #
3162 1435 00
Guide Rail
Spring Washer
Ref. Part #
0333 2143 00
Spring Washer
Screw
Ref. Part #
0147 1481 00
Screw
Screw
Ref. Part #
0147 1485 00
Screw
Spacer
Ref. Part #
3162 1437 00
Spacer
Chain Guide
Ref. Part #
3162 1432 00
Chain Guide
Driver
Ref. Part #
-
Driver
Cradle Complete Modified
Ref. Part #
3162 1175 80
Cradle Complete Modified
Cradle
Ref. Part #
3162 1175 00
Cradle
Cradle Retainer Front (Modified)
Ref. Part #
3162 1173 00 M
Cradle Retainer Front (Modified)
Cradle Retainer Rear
Ref. Part #
3162 1174 00
Cradle Retainer Rear
Washer
Ref. Part #
3162 1179 00
Washer
Sliding Piece
Ref. Part #
3162 1091 00
Sliding Piece
Shim
Ref. Part #
3162 1103 00
Shim
Guide Rail (Thickness 18mm)
Ref. Part #
3162 1090 00
Guide Rail (Thickness 18mm)
Spring Washer (Modified)
Ref. Part #
-
Spring Washer (Modified)
Screw
Ref. Part #
0147 1479 00
Screw
Chain Guide (Maximum Height 38mm)
Ref. Part #
3162 1088 00
Chain Guide (Maximum Height 38mm)
Nut
Ref. Part #
-
Nut
Screw
Ref. Part #
-
Screw
Feed Holder
Ref. Part #
3163 2704 00
Feed Holder
Spacer Plate
Ref. Part #
3217 1101 00
Spacer Plate
Clamp
Ref. Part #
3217 1102 00
Clamp
Wear Rail
Ref. Part #
3163 1985 00
Wear Rail
Guide Rail
Ref. Part #
3163 1983 00
Guide Rail
Boom Head
Ref. Part #
-
Boom Head
Bushing
Ref. Part #
9718 4271 00
Bushing
Drill Tube Support Attachments With Parts Complete
Ref. Part #
-
Drill Tube Support Attachments With Parts Complete
Support
Ref. Part #
3162 1105 00
Support
Screw
Ref. Part #
0147 1569 00
Screw
Screw
Ref. Part #
3162 0984 00
Screw
Spacer Sleeve
Ref. Part #
0147 1570 00
Spacer Sleeve
Screw Hex Spacer Plate Cop. 4/42 DTH
Ref. Part #
3162 1430 00
Screw Hex Spacer Plate Cop. 4/42 DTH
Lubricating Nipple
Ref. Part #
-
Lubricating Nipple
Circlip
Ref. Part #
0335 1139 00
Circlip
Washer
Ref. Part #
-
Washer
Spring
Ref. Part #
3175 0528 00
Spring
Carrier
Ref. Part #
3175 0529 00
Carrier
Screw
Ref. Part #
3175 0526 00
Screw
Washer
Ref. Part #
0301 2158 00
Washer
Seal Ring
Ref. Part #
3163 2492 00
Seal Ring
Bearing Housing
Ref. Part #
3163 2460 00
Bearing Housing
Screw
Ref. Part #
0211 1363 00
Screw
Spacer Ring
Ref. Part #
-
Spacer Ring
Ball Bearing
Ref. Part #
0502 1120 00
Ball Bearing
Seal Ring
Ref. Part #
0665 9180 00
Seal Ring
Bushing
Ref. Part #
3163 2249 00
Bushing
Worm Wheel, Complete
Ref. Part #
9718 4263 80
Worm Wheel, Complete
Ball Bearing
Ref. Part #
0502 2115 00
Ball Bearing
Spacer Ring
Ref. Part #
3163 2459 000
Spacer Ring
Circlip
Ref. Part #
0335 2178 00
Circlip
Nut
Ref. Part #
0295 3112 00
Nut
Lock Washer
Ref. Part #
0333 6112 00
Lock Washer
Circlip
Ref. Part #
0335 2169 00
Circlip
Spacer Ring
Ref. Part #
3163 2458 00
Spacer Ring
Ball Bearing
Ref. Part #
0502 2111 00
Ball Bearing
Spacer Sleeve
Ref. Part #
3163 2457 00
Spacer Sleeve
Spacer Ring
Ref. Part #
3163 2456 00
Spacer Ring
Seal Ring
Ref. Part #
3163 2490 00
Seal Ring
Screw
Ref. Part #
0211 1362 00
Screw
Bearing Housing
Ref. Part #
3163 2427 00
Bearing Housing
Shaft
Ref. Part #
3163 2445 00
Shaft
Screw
Ref. Part #
0211 1365 00
Screw
Cover
Ref. Part #
3163 2451 00
Cover
Nut
Ref. Part #
0295 3108 00
Nut
Lock Washer
Ref. Part #
0333 6108 00
Lock Washer
Ball Bearing
Ref. Part #
0504 2107 00
Ball Bearing
Bearing Housing
Ref. Part #
3163 2450 00
Bearing Housing
Worm Shaft
Ref. Part #
9718 4264 00
Worm Shaft
Key
Ref. Part #
0337 7152 00
Key
Ball Bearing
Ref. Part #
0506 2108 00
Ball Bearing
Spacer Ring
Ref. Part #
3163 2452 00
Spacer Ring
Circlip
Ref. Part #
0335 1140 00
Circlip
Gasket
Ref. Part #
0653 9078 00
Gasket
Gear (51T) (Modified)
Ref. Part #
-
Gear (51T) (Modified)
Circlip
Ref. Part #
0335 1136 00
Circlip
Motor Casing (Modified)
Ref. Part #
-
Motor Casing (Modified)
Bushing
Ref. Part #
0653 8526 00
Bushing
Elbow
Ref. Part #
0560 1306 00
Elbow
Back
