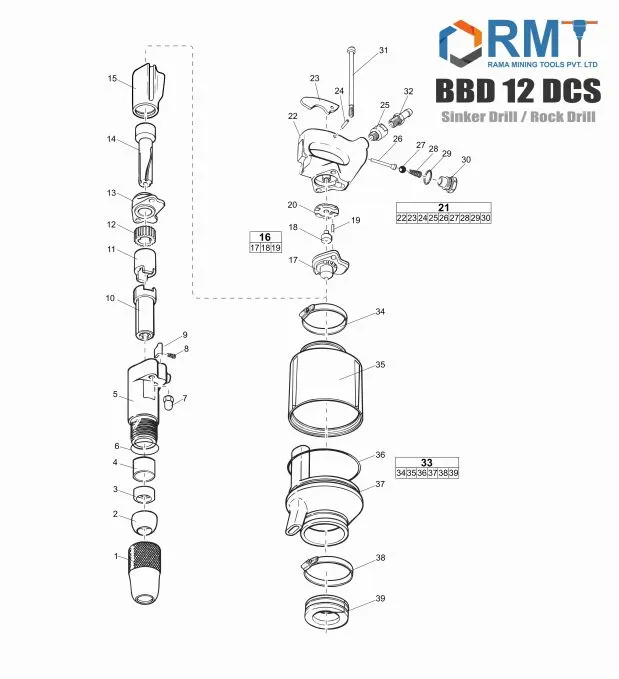

Spare Parts for BBD 12 DCS Sinker Drill

BBD 12 DCS Sinker Drill
BBD 12 DCS Sinker Drill
Drill Retainer
Ref Part #
3121 5000 33
Drill Retainer
Buffer
Ref Part #
3115 1250 00
Buffer
Stop Ring
Ref Part #
3111 002800
Stop Ring
Sleeve
Ref Part #
3115 1249 00
Sleeve
Front Head
Ref Part #
3121 5000 34
Front Head
O - Ring
Ref Part #
0663 2134 00
O - Ring
Cap Nut
Ref Part #
3111 0031 00
Cap Nut
Conical Spring
Ref Part #
3111 0023 00
Conical Spring
Drill Chuck
Ref Part #
3111 0051 00
Drill Chuck
Driver
Ref Part #
3111 0024 00
Driver
Ratchet Wheel
Ref Part #
3111 0019 00
Ratchet Wheel
Intermediate Part
Ref Part #
3111 0017 00
Intermediate Part
Piston
Ref Part #
3111 0016 00
Piston
Cylinder
Ref Part #
3111 0015 00
Cylinder
Cover Complete
Ref Part #
3111 0013 80
Cover Complete
Cover
Ref Part #
--
Cover
Guide Pin
Ref Part #
3111 0014 00
Guide Pin
Pin
Ref Part #
0108 3241 00
Pin
Main Valve
Ref Part #
3111 0012 00
Main Valve
Handle Complete
Ref Part #
3115 2483 80
Handle Complete
Handle
Ref Part #
--
Handle
Trigger
Ref Part #
3111 0002 00
Trigger
Pin
Ref Part #
0108 1327 00
Pin
Nut
Ref Part #
3510 0143 00
Nut
Valve Pin
Ref Part #
3111 0003 00
Valve Pin
Rubber Ball
Ref Part #
3111 0196 00
Rubber Ball
Conical Spring
Ref Part #
3111 0004 00
Conical Spring
Washer
Ref Part #
3111 0010 00
Washer
Ball Retainer
Ref Part #
3111 0005 00
Ball Retainer
Side Bolt
Ref Part #
3111 0197 00
Side Bolt
Hose Nipple
Ref Part #
9000 0243 00
Hose Nipple
Silencer Complete
Ref Part #
3115 2487 80
Silencer Complete
Hose Clamp
Ref Part #
0347 6117 00
Hose Clamp
Silencer - Upper
Ref Part #
3115 2487 00
Silencer - Upper
O - Ring
Ref Part #
0663 6151 00
O - Ring
Silencer - Lower
Ref Part #
3115 0772 00
Silencer - Lower
Hose Clamp
Ref Part #
0347 6116 00
Hose Clamp
Bushing
Ref Part #
3115 0773 00
Bushing
