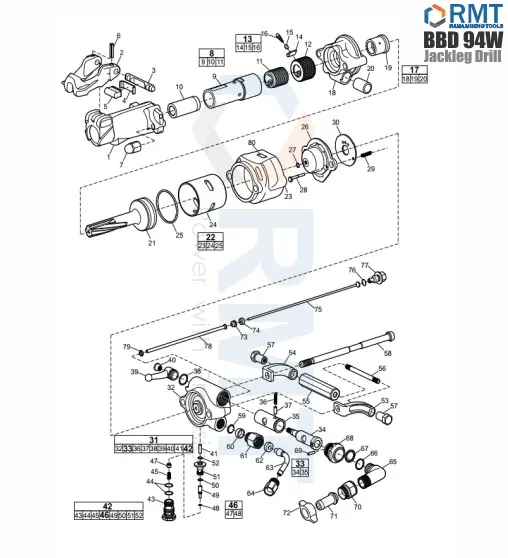

Spare Parts for BBD 94W - Jackleg Drill

BBD 94W - Jackleg Drill
BBD 94W - Jackleg Drill
Front head
Ref Part #
3121 0583 00
Front head
Drill Steel Retainer
Ref Part #
3121 0851 00
Drill Steel Retainer
Retainer Pin
Ref Part #
3115 2925 00
Retainer Pin
Buffer plate
Ref Part #
3121 0029 00
Buffer plate
Rubber Buffer
Ref Part #
3121 0030 00
Rubber Buffer
Spring Pin
Ref Part #
0108 3392 00
Spring Pin
Side Bolt Nut
Ref Part #
3121 0872 00
Side Bolt Nut
Rotation Chuck - Complete
Ref Part #
3121 0882 80
Rotation Chuck - Complete
Rotation Chuck
RMT Part #
94W 09
Ref Part #
---
Rotation Chuck
Rotation Chuck Bushing
Ref Part #
3121 0846 00
Rotation Chuck Bushing
Chuck Nut
Ref Part #
3115 1313 00
Chuck Nut
Ratchet wheel
Ref Part #
3115 3160 00
Ratchet wheel
Pawl, complete
Ref Part #
3115 9201 90
Pawl, complete
Pawl
Ref Part #
3101 3159 00
Pawl
Pawl Pin
Ref Part #
3121 0021 00
Pawl Pin
Pawl Spring
Ref Part #
3121 0020 00
Pawl Spring
Intermediate part, complete
Ref Part #
3121 0580 80
Intermediate part, complete
Intermediate part
Ref Part #
--
Intermediate part
Bushing
Ref Part #
3121 0581 00
Bushing
Bushing
Ref Part #
3121 0582 00
Bushing
Piston
Ref Part #
3115 1694 00
Piston
Cylinder, complete
Ref Part #
3121 0577 80
Cylinder, complete
Cylinder
Ref Part #
--
Cylinder
Cylinder liner
Ref Part #
3121 0620 00
Cylinder liner
O Ring
Ref Part #
0663 6142 00
O Ring
Cover
Ref Part #
3121 0576 01
Cover
O Ring
Ref Part #
0663 2114 00
O Ring
Guide Pin
Ref Part #
3121 0900 00
Guide Pin
Pressure Spring
Ref Part #
3121 0901 00
Pressure Spring
Main Valve
Ref Part #
3121 0689 00
Main Valve
Back head, complete
Ref Part #
3121 0571 81
Back head, complete
Back head
Ref Part #
--
Back head
Throttle Valve, Complete
Ref Part #
3121 0572 80
Throttle Valve, Complete
Throttle Valve
Ref Part #
-
Throttle Valve
Valve Liner
Ref Part #
3121 0573 00
Valve Liner
Coil Spring
Ref Part #
3131 0107 00
Coil Spring
Pawl pin
Ref Part #
3121 0127 00
Pawl pin
O Ring
Ref Part #
0663 2128 00
O Ring
Lever
Ref Part #
3141 0001 00
Lever
Conical Nut
Ref Part #
3006 8734 00
Conical Nut
Valve Pin
Ref Part #
3121 0574 00
Valve Pin
Valve Housing, Complete
Ref Part #
3121 0551 80
Valve Housing, Complete
Valve Housing
Ref Part #
--
Valve Housing
O Ring
Ref Part #
0663 2126 00
O Ring
Conical Spring
Ref Part #
3100 9240 21
Conical Spring
Valve Body, Complete
Ref Part #
3115 0982 80
Valve Body, Complete
O Ring
Ref Part #
0663 2112 00
O Ring
Valve Pin
Ref Part #
3121 0553 00
Valve Pin
O Ring
Ref Part #
0663 2120 00
O Ring
Valve Seat
Ref Part #
3121 0552 00
Valve Seat
O Ring
Ref Part #
0663 2120 00
O Ring
Handle Bracket
Ref Part #
3121 0884 00
Handle Bracket
Handle Bracket
Ref Part #
3121 088500
Handle Bracket
Handle Grip
Ref Part #
3121 0887 00
Handle Grip
Stud
Ref Part #
0246 1302 00
Stud
Nut
Ref Part #
3121 0883 00
Nut
Side bolt
Ref Part #
3121 0679 00
Side bolt
Strainer
Ref Part #
3121 0501 00
Strainer
Packing
Ref Part #
3121 0545 00
Packing
Adapter
Ref Part #
3121 0010 00
Adapter
Rubber packing
Ref Part #
3100 9653 00
Rubber packing
Hose Nipple
Ref Part #
3100 9654 00
Hose Nipple
Adapter
Ref Part #
3100 9652 00
Adapter
Inlet Nipple
Ref Part #
3100 9652 00
Inlet Nipple
O Ring
Ref Part #
0663 2128 00
O Ring
Ball
Ref Part #
0517 1108 00
Ball
Adapter
Ref Part #
3121 0550 00
Adapter
Pin
Ref Part #
3121 0595 00
Pin
Adapter
Ref Part #
3000 5825 03
Adapter
Hose nipple
Ref Part #
9000 0326 00
Hose nipple
Wing Nut
Ref Part #
9000 0339 00
Wing Nut
Guide Ring
Ref Part #
3121 0776 00
Guide Ring
Washer
Ref Part #
3100 9646 00
Washer
Water flushing tube
Ref Part #
3121 0433 00
Water flushing tube
O Ring
Ref Part #
0663 2125 00
O Ring
Adapter
Ref Part #
3121 0575 00
Adapter
Air Flushing Tube
Ref Part #
3121 0106 00
Air Flushing Tube
Rubber Packing
Ref Part #
3000 0121 00
Rubber Packing
Data Plate
Ref Part #
---
Data Plate
