Spare Parts for BBC 34W - Jackleg Drill

BBC 34W - Jackleg Drill
BBC 34W - Jackleg Drill
Front head housing
Ref Part #
3121015400
Front head housing
Drill Steel Retainer
Ref Part #
3121085100
Drill Steel Retainer
Tension Pin
Ref Part #
0108339200
Tension Pin
Retainer Pin
Ref Part #
3115292500
Retainer Pin
Buffer plate
Ref Part #
3121002900
Buffer plate
Rubber Buffer
Ref Part #
3121 0030 00
Rubber Buffer
Side Bolt Nut
Ref Part #
3121087200
Side Bolt Nut
Rotation Chuck, Complete
Ref Part #
3121082680
Rotation Chuck, Complete
Rotation Chuck
Ref Part #
--
Rotation Chuck
Rotation Chuck Bushing
Ref Part #
3121082400
Rotation Chuck Bushing
Chuck Nut
Ref Part #
3115122000
Chuck Nut
Intermediate part
Ref Part #
3121075100
Intermediate part
Bushing
Ref Part #
3121075200
Bushing
Cylinder, complete
Ref Part #
3121075580
Cylinder, complete
Cylinder
Ref Part #
-
Cylinder
Washer
Ref Part #
3121059900
Washer
Pin
Ref Part #
101127400
Pin
Spring Pin
Ref Part #
3115141700
Spring Pin
Plug
Ref Part #
3121070700
Plug
Piston - complete
Ref Part #
3121076780
Piston - complete
Piston
Ref Part #
-
Piston
Rifle Nut
Ref Part #
3121075400
Rifle Nut
Rifle Bar Bearing
Ref Part #
3121075600
Rifle Bar Bearing
Pin
Ref Part #
108131900
Pin
Valve Casing
Ref Part #
3121075700
Valve Casing
Main Valve
Ref Part #
3121075800
Main Valve
Valve Casing Cover
Ref Part #
3121075900
Valve Casing Cover
Dowel Pin
Ref Part #
108132200
Dowel Pin
O Ring 13.1 x 1.6 mm
Ref Part #
663612000
O Ring 13.1 x 1.6 mm
Pipe
Ref Part #
3121067300
Pipe
Rifle bar
Ref Part #
3121062600
Rifle bar
Washer
Ref Part #
3121062700
Washer
Pawl, complete
Ref Part #
3115920090
Pawl, complete
Pawl
Ref Part #
3101315900
Pawl
Pressure Spring
Ref Part #
3100914002
Pressure Spring
Pawl Pin
Ref Part #
3100964101
Pawl Pin
Ratchet box
Ref Part #
3121089800
Ratchet box
Back head, complete
Ref Part #
3121059783
Back head, complete
Back head
Ref Part #
-
Back head
Guide Ring
Ref Part #
3121059200
Guide Ring
Stop Screw
Ref Part #
3121060400
Stop Screw
Valve Pin
Ref Part #
3121058600
Valve Pin
Throttle Valve - Complete
Ref Part #
3121048981
Throttle Valve - Complete
Throttle Valve, Complete
Ref Part #
3121048980
Throttle Valve, Complete
Throttle Valve
Ref Part #
-
Throttle Valve
Inlet Plug
Ref Part #
-
Inlet Plug
Pin
Ref Part #
3121059500
Pin
Bearing Ball
Ref Part #
517110800
Bearing Ball
O Ring 26.2 x 3 mm
Ref Part #
663212800
O Ring 26.2 x 3 mm
Inlet Air Nipple - 25 mm, 1 in.
RMT Part #
34W 50
Ref Part #
3121052100
Inlet Air Nipple - 25 mm, 1 in.
Strainer
Ref Part #
3121051300
Strainer
O Ring
Ref Part #
663213500
O Ring
O Ring
Ref Part #
663213200
O Ring
Plug
Ref Part #
3121049300
Plug
Pin
Ref Part #
101127400
Pin
Ratchet Pin
Ref Part #
3121049000
Ratchet Pin
Spring
Ref Part #
3121049100
Spring
Plug
Ref Part #
3121049200
Plug
Pin
Ref Part #
3121059500
Pin
Pin
Ref Part #
3121055800
Pin
Spring
Ref Part #
3121056400
Spring
Spring
Ref Part #
3121073700
Spring
Bearing Ball
Ref Part #
517141400
Bearing Ball
Valve Seat
Ref Part #
3121073600
Valve Seat
Valve Housing
Ref Part #
3121049581
Valve Housing
Valve Housing
Ref Part #
-
Valve Housing
Valve Body, Complete
Ref Part #
3121071380
Valve Body, Complete
Valve Body
Ref Part #
--
Valve Body

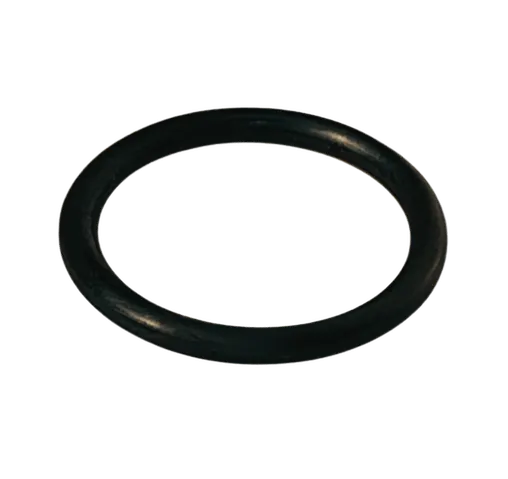

O Ring 5.3 x 2.4 mm
Ref Part #
663211200
O Ring 5.3 x 2.4 mm
Pressure Spring
Ref Part #
3121049700
Pressure Spring
O Ring
Ref Part #
663212200
O Ring
Plug
Ref Part #
3121071400
Plug
Water strainer
Ref Part #
3121050100
Water strainer
O Ring 19.2 x 3 mm
Ref Part #
663212500
O Ring 19.2 x 3 mm
Adapter
Ref Part #
3121071600
Adapter
Gasket
Ref Part #
3100965300
Gasket
Adapter
Ref Part #
3121085700
Adapter
Inlet Water Nipple
Ref Part #
3121085400
Inlet Water Nipple
Tubular pin
Ref Part #
108129800
Tubular pin
O Ring 27.1 x 1.6 mm
Ref Part #
663612900
O Ring 27.1 x 1.6 mm
Flushing Tube Bushing
Ref Part #
3121073100
Flushing Tube Bushing
O Ring
Ref Part #
663213200
O Ring
Lever
Ref Part #
3121055700
Lever
O Ring
Ref Part #
663212200
O Ring
O Ring 26.6 x 3.5 mm
Ref Part #
663918400
O Ring 26.6 x 3.5 mm
Plug
Ref Part #
3121058500
Plug
Valve, Complete
Ref Part #
3121072681
Valve, Complete
Valve
Ref Part #
--
Valve
Valve Liner
Ref Part #
--
Valve Liner
O Ring 17.3 x 2.4 mm
Ref Part #
663212400
O Ring 17.3 x 2.4 mm
Spring
Ref Part #
3121072500
Spring
Washer
Ref Part #
3121072400
Washer
Valve Pin
Ref Part #
3121067500
Valve Pin
Rubber gasket
Ref Part #
3000012100
Rubber gasket
Air Flushing Tube
Ref Part #
3121076800
Air Flushing Tube
Guide Ring
Ref Part #
3121077600
Guide Ring
Rubber gasket
Ref Part #
3100964600
Rubber gasket
Water flushing tube
Ref Part #
3121046000
Water flushing tube
Nut
Ref Part #
3121089400
Nut
Side bolt
Ref Part #
3121076000
Side bolt
Handle
Ref Part#
3121 0674 00
Handle
Wing Nut
RMT Part #
Original only
OEM Part #
9000033900
Wing Nut
Adapter
RMT Part #
Original only
OEM Part #
3000582503
Adapter
Hose nipple - 25 mm
RMT Part #
Original only
OEM Part #
9000032600
Hose nipple - 25 mm
Data Plate
RMT Part #
Original only
OEM Part #
3115271800
Data Plate
