Spare Parts for CP 1290 - Pneumatic Breaker

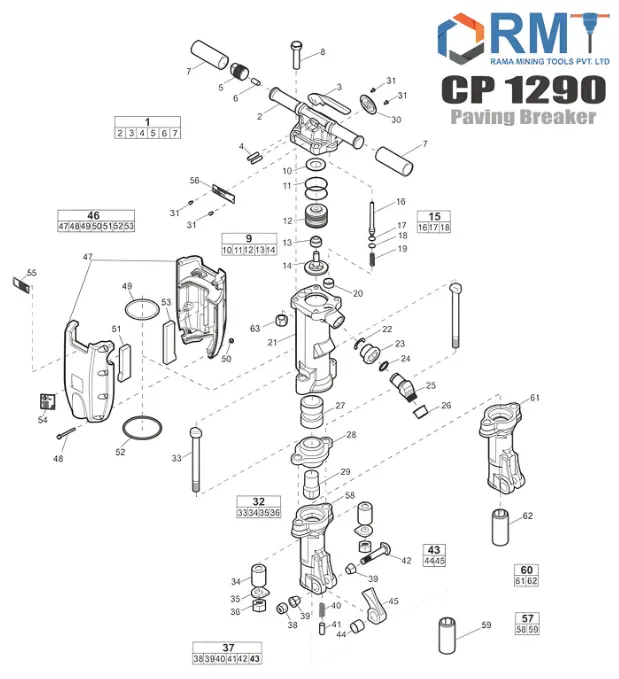

CP 1290 - Pneumatic Breaker
CP 1290 - Pneumatic Breaker
Backhead Complete
Ref Part #
3303 0053 70
Backhead Complete
Backhead
Ref Part #
-
Backhead
Trigger
Ref Part #
F814 725
Trigger
Pin - spring
Ref Part #
R133 433
Pin - spring
Plug - oil
Ref Part #
R075 031
Plug - oil
Oil wick
Ref Part #
C036 901
Oil wick
Rubber grip
Ref Part #
3303 0052 76
Rubber grip
Screw
Ref Part #
0147 1959 60
Screw
Valve case Complete
Ref Part #
R122 977
Valve case Complete
Washer
Ref Part #
R085 259
Washer
O-ring
Ref Part #
P083 094
O-ring
Valve case
RMT Part #
R092 904
Ref Part #
P083 094
Valve case
Valve
Ref Part #
R122 975
Valve
Guide valve
Ref Part #
R122 976
Guide valve
Throttle valve Complete
Ref Part #
R092 894
Throttle valve Complete
Throttle valve
Ref Part #
-
Throttle valve
Seal - throttle valve
Ref Part #
R098 368
Seal - throttle valve
Retaining ring - valve seal
Ref Part #
R098 369
Retaining ring - valve seal
Spring - throttle valve
Ref Part #
R005 717
Spring - throttle valve
Seal - cylinder
Ref Part #
R047 965
Seal - cylinder
Cylinder
Ref Part #
3303 0052 85
Cylinder
Swivel nut
Ref Part #
3310 1044 00
Swivel nut
Lock washer
Ref Part #
3310 1059 00
Lock washer
O-ring
Ref Part #
0663 2126 00
O-ring
Swivel
Ref Part #
3303 0050 12
Swivel
Plug
Ref Part #
C090 659
Plug
Piston
Ref Part #
R000 127
Piston
Bushing - anvil block
Ref Part #
R092 907
Bushing - anvil block
Block - anvil
Ref Part #
R096 123
Block - anvil
Product label
Ref Part #
3303 0053 10
Product label
Drive screw
Ref Part #
P081 333
Drive screw
Side bolt - Complete
Ref Part #
3303 0053 74
Side bolt - Complete
Bolt - fronthead
Ref Part #
F037 790
Bolt - fronthead
Buffer
Ref Part #
3303 0053 13
Buffer
Lock Washer - Fronthead bolt
Ref Part #
R096 059
Lock Washer - Fronthead bolt
Nut - fronthead bolt
Ref Part #
F037 789
Nut - fronthead bolt
Latch Complete
Ref Part #
3303 0050 55
Latch Complete
Lock nut
Ref Part #
P008 999
Lock nut
Bushing - latch retainer
Ref Part #
R076 562
Bushing - latch retainer
Spring - plunger
Ref Part #
R092 911
Spring - plunger
Plunger - latch
Ref Part #
R092 910
Plunger - latch
Bolt - latch
Ref Part #
R076 853
Bolt - latch
Latch retainer, complete
Ref Part #
R092 909
Latch retainer, complete
Bushing
Ref Part #
R050 894
Bushing
Latch - retainer
Ref Part #
-
Latch - retainer
Muffler Complete
Ref Part #
3303 0053 77
Muffler Complete
Muffler
Ref Part #
3303 0053 20
Muffler
Flange screw
Ref Part #
0147 3000 32
Flange screw
O-ring
Ref Part #
0663 2146 00
O-ring
Flange nut
Ref Part #
9232 0207 50
Flange nut
Separation wall
Ref Part #
3303 0052 98
Separation wall
O-ring
Ref Part #
0663 2149 00
O-ring
Separation wall
Ref Part #
3303 0052 97
Separation wall
Label
Ref Part #
H418 4044
Label
Label
Ref Part #
3310 1602 00
Label
Data plate
Ref Part #
-
Data plate
Fronthead Complete - 32mm
Ref Part #
R092 918
Fronthead Complete - 32mm
Fronthead
Ref Part #
-
Fronthead
Bushing - fronthead
Ref Part #
R040 635
Bushing - fronthead
Fronthead Complete - 28mm
Ref Part #
R092 917
Fronthead Complete - 28mm
Fronthead
Ref Part #
-
Fronthead
Bushing - fronthead
Ref Part #
R090 122
Bushing - fronthead
Nut
Ref Part #
0261 1099 53
Nut
