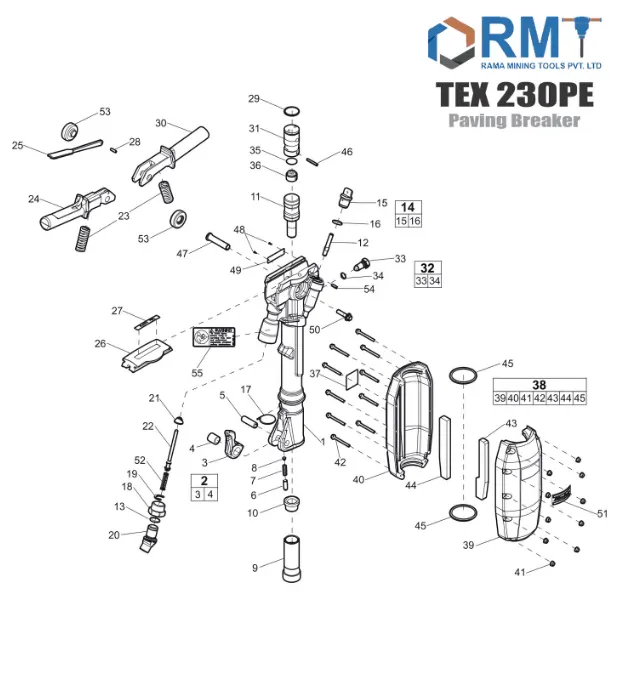

Spare Parts for TEX 230 PE - Pneumatic Breaker

TEX 230 PE - Pneumatic Breaker
TEX 230 PE - Pneumatic Breaker
Cylinder
Ref Part #
3310 1530 00
Cylinder
Tool Retainer, Complete
Ref Part #
3310 0890 80
Tool Retainer, Complete
Tool Retainer
Ref Part #
--
Tool Retainer
Bushing
Ref Part #
3310 0891 00
Bushing
Plunger
Ref Part #
3310 0893 00
Plunger
Spring
Ref Part #
3310 0894 00
Spring
Protection Plug
Ref Part #
3310 1508 00
Protection Plug
Chuck
Ref Part #
3310 1499 00
Chuck
Intermediate Part
Ref Part #
3310 1457 00
Intermediate Part
Piston
Ref Part #
3310 1454 00
Piston
Dosing Feeder
Ref Part #
3310 1260 00
Dosing Feeder
O - Ring
Ref Part #
0663 2126 00
O - Ring
Spring Pin
Ref Part #
0108 1691 05
Spring Pin
Oil Plug, Complete
Ref Part #
3310 1462 80
Oil Plug, Complete
Oil Plug
Ref Part #
--
Oil Plug
Lock Wire
Ref Part #
3310 1534 00
Lock Wire
Swivel Nut
Ref Part #
3310 1044 00
Swivel Nut
Lock Washer
Ref Part #
3310 1059 00
Lock Washer
Swivel
Ref Part #
3310 1536 00
Swivel
Inlet Valve
Ref Part #
3310 1211 00
Inlet Valve
Valve Stem
Ref Part #
3310 1492 00
Valve Stem
Spring
Ref Part #
3310 1083 00
Spring
Handle
Ref Part #
3310 1458 80
Handle
Trigger
Ref Part #
3310 1460 80
Trigger
Cover
Ref Part #
3310 1478 00
Cover
Label
Ref Part #
3310 1516 08
Label
Spring Pin
Ref Part #
0108 1324 00
Spring Pin
O - Ring
Ref Part #
0663 2133 00
O - Ring
Handle
Ref Part #
3310 1459 80
Handle
Valve Housing
Ref Part #
3310 1453 00
Valve Housing
Screw, Complete
Ref Part #
3310 1476 80
Screw, Complete
Screw
Ref Part #
--
Screw
O - Ring
Ref Part #
0663 2120 00
O - Ring
Main Valve
Ref Part #
3310 1173 00
Main Valve
Valve Cover
Ref Part #
3310 1245 00
Valve Cover
Sound Power Label
Ref Part #
--
Sound Power Label
Silencer, Complete
Ref Part #
3310 1477 82
Silencer, Complete
Flange Nut
Ref Part #
9232 0207 50
Flange Nut
Front
Ref Part #
--
Front
Rear
Ref Part #
--
Rear
Flange Screw
Ref Part #
0147 3000 32
Flange Screw
Separation Wall
Ref Part #
3310 1518 41
Separation Wall
Separation Wall
Ref Part #
3310 1518 40
Separation Wall
O - Ring
Ref Part #
0663 2114 14
O - Ring
Spring Pin
Ref Part #
0108 1332 00
Spring Pin
Guide Shaft
Ref Part #
3310 1479 00
Guide Shaft
Screw
Ref Part #
0244 4144 00
Screw
Data Plate
Ref Part #
--
Data Plate
Flange Screw
Ref Part #
0147 3000 18
Flange Screw
Label
Ref Part #
0690 1356 00
Label
Spring
Ref Part #
3310 1537 00
Spring
Buffer
Ref Part #
3310 1461 00
Buffer
Spring Pin
Ref Part #
0108 1322 00
Spring Pin
Safety Label
Ref Part #
3310 1602 00
Safety Label
