Spare Parts for TEX 12 PS KL - Pick Hammer

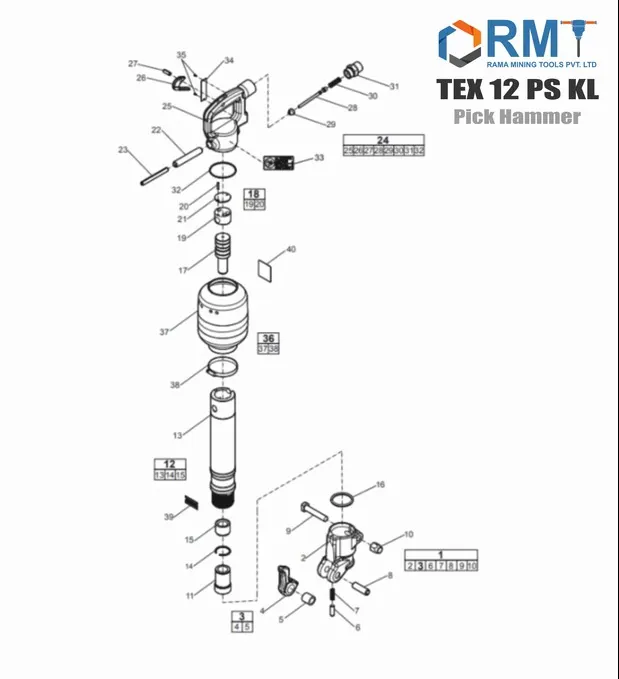

TEX 12 PS KL - Pick Hammer
TEX 12 PS KL - Pick Hammer
Fronthead Complete
Ref Part #
3310088780
Fronthead Complete
Fronthead
Ref Part #
-
Fronthead
Tool retainer Complete
Ref Part #
3310089080
Tool retainer Complete
Retainer
Ref Part #
--
Retainer
Bushing
Ref Part #
3310089100
Bushing
Plunger
Ref Part #
3310089300
Plunger
Spring
Ref Part #
3310089400
Spring
Spring pin
Ref Part #
0108169105
Spring pin
Bolt
Ref Part #
3310038400
Bolt
Nut
Ref Part #
3310031200
Nut
Chuck, Hexagon
Ref Part #
3310131600
Chuck, Hexagon
Cylinder Complete
Ref Part #
3310128280
Cylinder Complete
Cylinder
Ref Part #
-
Cylinder
Locking ring
Ref Part #
3310087100
Locking ring
Intermediate part
Ref Part #
3310087000
Intermediate part
0663213700 | O - Ring
Ref Part #
0663213700
0663213700 | O - Ring
Piston
Ref Part #
3310128300
Piston
Cover, complete
Ref Part #
3310128580
Cover, complete
Cover
Ref Part #
-
Cover
Grooved pin
Ref Part #
0106095111
Grooved pin
Main valve
Ref Part #
3310128600
Main valve
Spring pin
Ref Part #
0108169155
Spring pin
Spring pin
Ref Part #
0108169164
Spring pin
Backhead Complete
Ref Part #
3310128781
Backhead Complete
Backhead
Ref Part #
--
Backhead
Trigger
Ref Part #
3310128800
Trigger
Spring Pin
Ref Part #
0108135500
Spring Pin
Valve stem
Ref Part #
3310128100
Valve stem
Inlet valve
Ref Part #
3310113500
Inlet valve
Spring
Ref Part #
3310113000
Spring
Nipple
Ref Part #
3310113100
Nipple
O - Ring
Ref Part #
0663613700
O - Ring
Safety label
Ref Part #
3310160200
Safety label
Data plate
Ref Part #
-
Data plate
Screw
Ref Part #
0244414400
Screw
Silencer Complete
Ref Part #
3310128480
Silencer Complete
Silencer
Ref Part #
-
Silencer
Hose clamp
Ref Part #
0347611400
Hose clamp
Label
Ref Part #
0690110102
Label
Sound power label
Ref Part #
-
Sound power label
