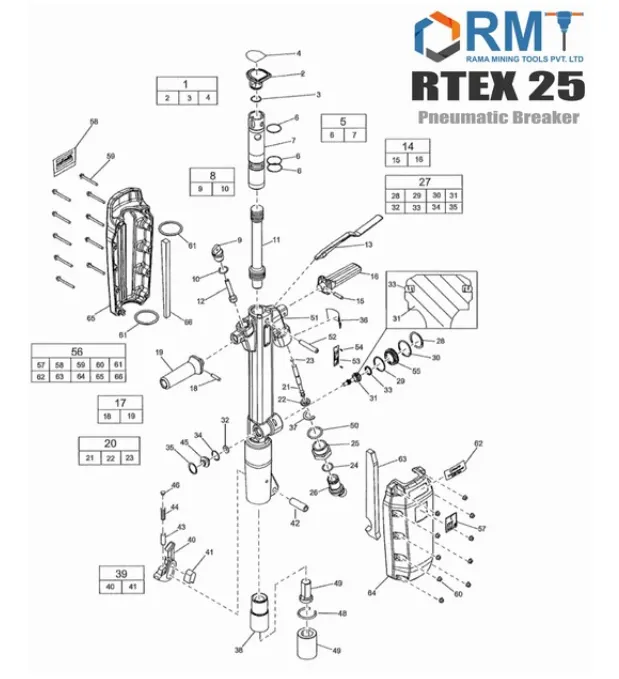

Spare Parts for RTEX 25 - Pneumatic Breaker

RTEX 25 - Pneumatic Breaker
RTEX 25 - Pneumatic Breaker
Top cover complete
Ref Part #
3310 1100 75
Top cover complete
Top cover
Ref Part #
-
Top cover
O - Ring
Ref Part #
0663914300
O - Ring
Product label, "R TEX"
Ref Part #
3310 1901 00
Product label, "R TEX"
Liner, complete
Ref Part #
3310110074
Liner, complete
O-ring
Ref Part #
4090050700
O-ring
Liner
Ref Part #
-
Liner
Oil plug, complete
Ref Part #
3310146280
Oil plug, complete
Oil plug
Ref Part #
-
Oil plug
O-ring
Ref Part #
0663212600
O-ring
Piston
Ref Part #
3310195000
Piston
Dosing feeder
Ref Part #
3310 1893 00
Dosing feeder
Trigger
Ref Part #
3310 1759 00
Trigger
Handle Right Complete
Ref Part #
3310 1100 77
Handle Right Complete
Slotted spring pin
Ref Part #
0108 1359 00
Slotted spring pin
Handle
Ref Part #
-
Handle
Handle left, complete
Ref Part #
3310 1100 76
Handle left, complete
Slotted spring pin
Ref Part #
0108 1359 00
Slotted spring pin
Handle
Ref Part #
-
Handle
Valve stem, complete
Ref Part #
3310110078
Valve stem, complete
Valve stem
Ref Part #
-
Valve stem
Inlet valve
Ref Part #
-
Inlet valve
O-ring
Ref Part #
0663211400
O-ring
O-ring
Ref Part #
0663212800
O-ring
Swivel nut
Ref Part #
3310175800
Swivel nut
Swivel
Ref Part #
3310175700
Swivel
Main Valve, complete
Ref Part #
3310 1100 73
Main Valve, complete
Circlip | 0335 2144 00
Ref Part #
0335214400
Circlip | 0335 2144 00
O-ring
Ref Part #
0663212050
O-ring
O-ring
Ref Part #
0663213400
O-ring
Main valve
Ref Part #
-
Main valve
Sealing valve
Ref Part #
-
Sealing valve
AIRZET PK 25
Ref Part #
0663990052
AIRZET PK 25
X- ring
Ref Part #
0663990053
X- ring
Circlip DIN472
Ref Part #
0335 2133 00
Circlip DIN472
Safety Label
Ref Part #
3310160200
Safety Label
Lock washer
Ref Part #
3121 0861 00
Lock washer
Sound power label
Ref Part #
3310132707
Sound power label
Intermediate part
Ref Part #
3310 1772 00
Intermediate part
Tool retainer, complete
Ref Part #
3310 1100 71
Tool retainer, complete
Bush
Ref Part #
3310176700
Bush
Plunger
Ref Part #
3310176900
Plunger
Spring
Ref Part #
3310 1765 00
Spring
Locking cylinder
Ref Part #
3310 1818 00
Locking cylinder
Retainer
Ref Part #
-
Retainer
Cover
Ref Part #
3310 1655 00
Cover
Retainer pin, complete (H28)
Ref Part #
3310 1100 79
Retainer pin, complete (H28)
Retainer pin
Ref Part#
-
Retainer pin
Spring pin
Ref Part #
0108 1103 51
Spring pin
Retainer pin, complete (H32)
Ref Part #
3310 1100 80
Retainer pin, complete (H32)
Retainer pin
Ref Part #
-
Retainer pin
Spring pin
Ref Part #
0108 1103 51
Spring pin
Product label, "R TEX"
Ref Part #
3310 1898 00
Product label, "R TEX"
Chuck bushing H28
Ref Part #
3310177500
Chuck bushing H28
Chuck bushing H32
Ref Part #
3310177000
Chuck bushing H32
Lock ring
Ref Part #
3310178600
Lock ring
Anvil block
Ref Part #
3310176400
Anvil block
O-ring
Ref Part #
4090050700
O-ring
Cylinder
Ref Part #
-
Cylinder
Spring pin
Ref Part #
0108110350
Spring pin
Data plate
Ref Part #
-
Data plate
Drive screw
Ref Part #
0244414400
Drive screw
Cover
Ref Part #
3310170200
Cover
Silencer, complete
Ref Part #
3310110072
Silencer, complete
Flange screw
Ref Part #
0147300032
Flange screw
Flange nut
Ref Part #
9232020750
Flange nut
O-ring
Ref Part #
0663213900
O-ring
Dimension label 28mm
Ref Part #
3310190500
Dimension label 28mm
Dimension label 32mm
Ref Part #
3310190400
Dimension label 32mm
Separation wall back
Ref Part #
3310179600
Separation wall back
Silencer back
Ref Part #
-
Silencer back
Silencer front
Ref Part #
-
Silencer front
Separation wall front
Ref Part #
3310179400
Separation wall front
