Spare Parts for RTEX 15 - Pneumatic Breaker

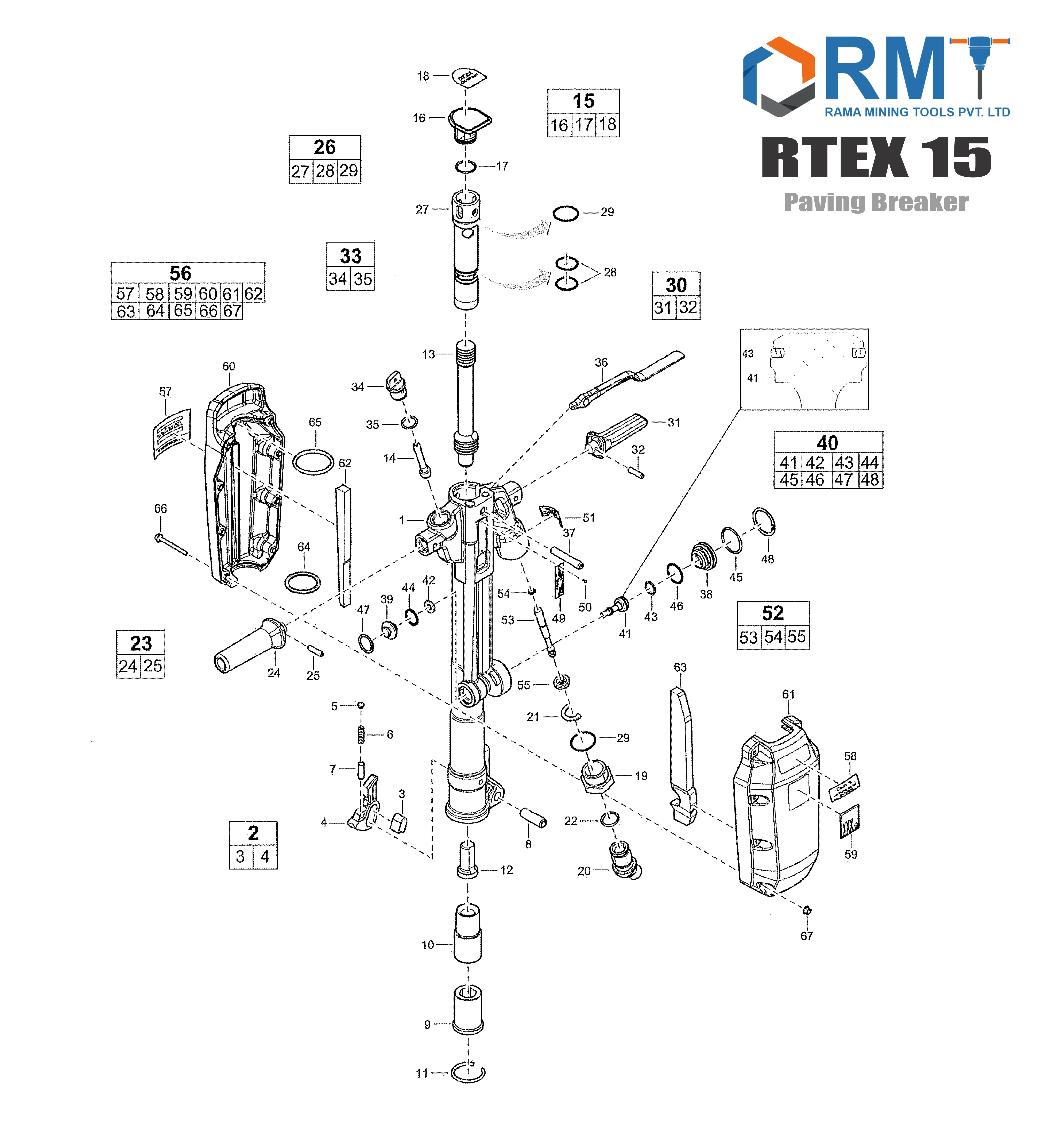

RTEX 15 - Pneumatic Breaker
RTEX 15 - Pneumatic Breaker
Cylinder
Ref Part #
--
Cylinder
Retainer complete | 3310 1102 90
Ref Part #
3310 1102 90
Retainer complete | 3310 1102 90
Bush | 3310 1988 00
Ref Part #
3310 1988 00
Bush | 3310 1988 00
Tool retainer
Ref Part #
--
Tool retainer
Protection plug | 3310 1508 00
Ref Part #
3310 1508 00
Protection plug | 3310 1508 00
Spring | 3310 0894 00
Ref Part #
3310 0894 00
Spring | 3310 0894 00
Plunger | 3310 0893 00
Ref Part #
3310 0893 00
Plunger | 3310 0893 00
Spring pin | 0108 1691 05
Ref Part #
0108 1691 05
Spring pin | 0108 1691 05
Chuck bushing | 3310 1806 00
Ref Part #
3310 1806 00
Chuck bushing | 3310 1806 00
Intermediate part | 3310 1803 00
Ref Part #
3310 1803 00
Intermediate part | 3310 1803 00
Lock ring | 3310 1807 00
Ref Part #
3310 1807 00
Lock ring | 3310 1807 00
Anvil | 3310 1805 00
Ref Part #
3310 1805 00
Anvil | 3310 1805 00
Piston | 3310 1804 00
Ref Part #
3310 1804 00
Piston | 3310 1804 00
Doosing feeder | 3310 1893 00
Ref Part #
3310 1893 00
Doosing feeder | 3310 1893 00
Top cover compete | 3310 1102 80
Ref Part #
3310 1102 80
Top cover compete | 3310 1102 80
Top cover
Ref Part #
--
Top cover
O - Ring | 0663 9143 00
Ref Part #
0663 9143 00
O - Ring | 0663 9143 00
Top label | 3310 1903 00
Ref Part #
3310 1903 00
Top label | 3310 1903 00
Swivel nut | 3310 1758 00
Ref Part #
3310 1758 00
Swivel nut | 3310 1758 00
Swivel | 3310 1757 00
Ref Part #
3310 1757 00
Swivel | 3310 1757 00
Lock Washer | 3121 0861 00
Ref Part #
3121 0861 00
Lock Washer | 3121 0861 00
O - Ring swivel | 0663 2128 00
Ref Part #
0663 2128 00
O - Ring swivel | 0663 2128 00
Handle left, complete | 3310 1100 76
Ref Part #
3310 1100 76
Handle left, complete | 3310 1100 76
Handle
Ref Part #
--
Handle
Slotted spring pin | 0108 1359 00
Ref Part #
0108 1359 00
Slotted spring pin | 0108 1359 00
Liner, complete | 3310 1103 10
Ref Part #
3310 1103 10
Liner, complete | 3310 1103 10
Liner
Ref Part #
--
Liner
O - Ring | 0663 2101 37
Ref Part #
0663 2101 37
O - Ring | 0663 2101 37
O - Ring | 0663 2101 01
Ref Part #
0663 2101 01
O - Ring | 0663 2101 01
Handle right, complete | 3310 1100 77
Ref Part #
3310 1100 77
Handle right, complete | 3310 1100 77
Oil plug, complete | 3310 1462 80
Ref Part #
3310 1462 80
Oil plug, complete | 3310 1462 80
Oil plug
Ref Part #
--
Oil plug
O - Ring | 0663 2126 00
Ref Part #
0663 2126 00
O - Ring | 0663 2126 00
Trigger | 3310 1759 00
Ref Part #
3310 1759 00
Trigger | 3310 1759 00
Spring pin | 0108 1103 50
Ref Part #
0108 1103 50
Spring pin | 0108 1103 50
Cover | 3310 1702 00
Ref Part #
3310 1702 00
Cover | 3310 1702 00
Cover | 3310 1655 00
Ref Part #
3310 1655 00
Cover | 3310 1655 00
Main Valve, complete | 3310 1100 73
Ref Part #
3310 1100 73
Main Valve, complete | 3310 1100 73
Main valve
Ref Part #
--
Main valve
Sealing valve
Ref Part #
--
Sealing valve
Airzet PK25 | 0663 9900 52
Ref Part #
0663 9900 52
Airzet PK25 | 0663 9900 52
0 - Ring | 0663 9900 53
Ref Part #
0663 9900 53
0 - Ring | 0663 9900 53
0 - Ring | 0663 2134 00
Ref Part #
0663 2134 00
0 - Ring | 0663 2134 00
0 - Ring | 0663 2120 50
Ref Part #
0663 2120 50
0 - Ring | 0663 2120 50
Circlip | 0335 2133 00
Ref Part #
0335 2133 00
Circlip | 0335 2133 00
Circlip | 0335 2144 00
Ref Part #
0335 2144 00
Circlip | 0335 2144 00
Data plate
Ref Part #
--
Data plate
Drive screw | 0244 4144 00
Ref Part #
0244 4144 00
Drive screw | 0244 4144 00
Safety Label | 3310 1602 00
Ref Part #
3310 1602 00
Safety Label | 3310 1602 00
Valve stern complete | 3310 1100 78
Ref Part #
3310 1100 78
Valve stern complete | 3310 1100 78
Valve stem
Ref Part #
--
Valve stem
O - Ring
Ref Part #
0663 2114 00
O - Ring
Inlet valve
Ref Part #
--
Inlet valve
Silencer complete | 3310 1103 00
Ref Part #
3310 1103 00
Silencer complete | 3310 1103 00
Front label | 3310 1900 00
Ref Part #
3310 1900 00
Front label | 3310 1900 00
Dimension label | 3310 1906 00
Ref Part #
3310 1906 00
Dimension label | 3310 1906 00
Sound power label | 3310 1327 06
Ref Part #
3310 1327 06
Sound power label | 3310 1327 06
Silencer front
Ref Part #
--
Silencer front
Silencer back
Ref Part #
--
Silencer back
Separation wall front | 3310 1882 00
Ref Part #
3310 1882 00
Separation wall front | 3310 1882 00
Seperation wall back | 3310 1883 00
Ref Part #
3310 1883 00
Seperation wall back | 3310 1883 00
O - Ring | 0663 2139 00
Ref Part #
0663 2139 00
O - Ring | 0663 2139 00
Flange screw | 0147 3000 32
Ref Part #
0147 3000 32
Flange screw | 0147 3000 32
Flange nut | 9232 0207 50
Ref Part #
9232 0207 50
Flange nut | 9232 0207 50
