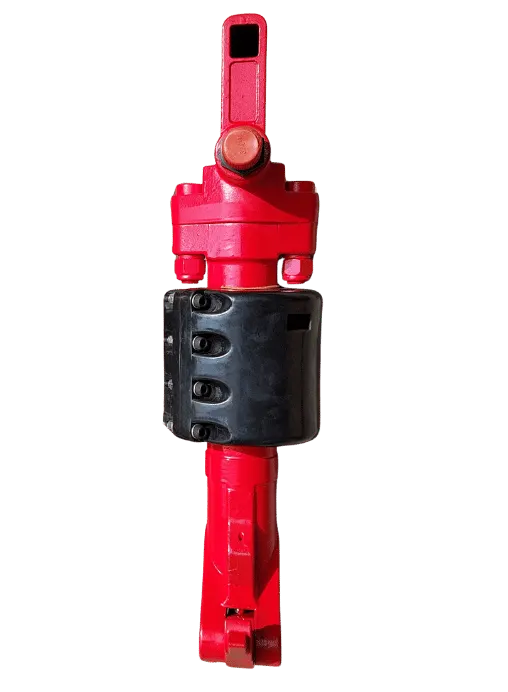

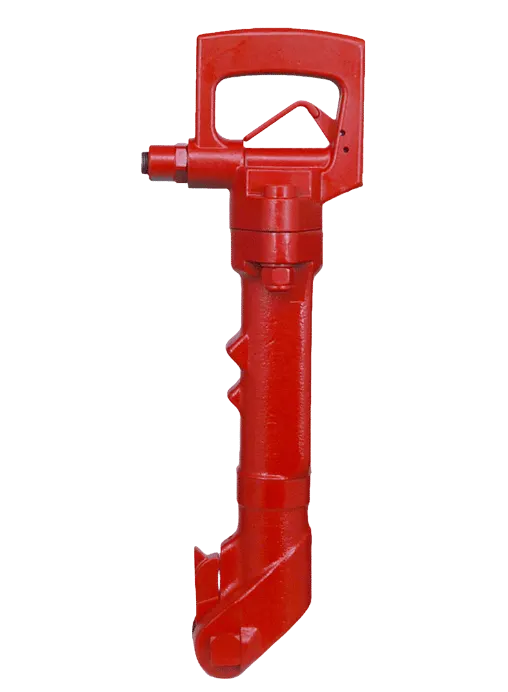

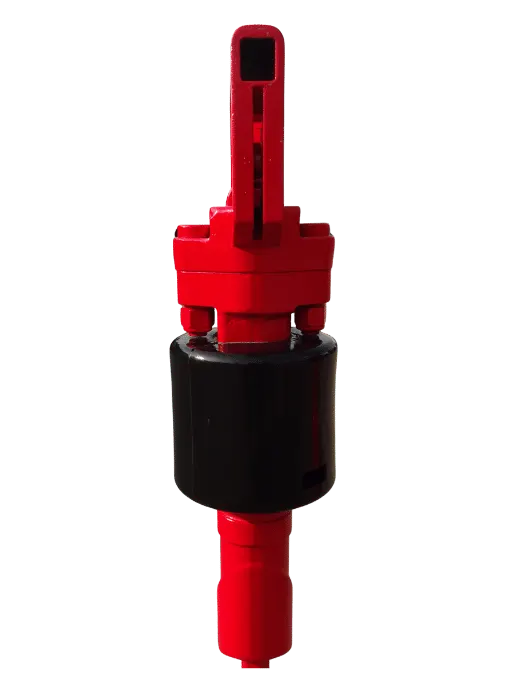

RMT 222S - Clay Digger

Multipurpose Hammer for Clay Digger and Pick Hammers

RMT 222S is a multipurpose hammer serving the dual job of Clay Digger and Picks (Pick Hammers). It is used in heavy-duty chipping, breaking operations, trenching, and tunneling. It comes with a 22 mm shank. The excellent power-to-weight ratio has made the tool popular because of its lightweight; operators can use the hammer at any desired angle and even for overhead work. These clay diggers come with latch retainers for quick and easy change of steel. The hammer is available with or without a sound-reducing silencer/muffler.

CP 222S - Clay Digger
RMT 222S - Clay Digger
RMT 222S - Clay Digger
Model # RMT 222S Clay Digger
Weight 12 kg 26 lb
Length 533 mm 21"
Air pressure 6.2 bar 90 psi
Air consumption 19 l/s 40 cfm
Blows per minute 1500
Piston dia 40 mm 1.60"
Piston stroke 88 mm 3.46"
Air inlet (BSP) 19 mm ¾"
Air inlet (NPT) optional 12.7 mm ½"
Shank size (Hex) - 8900 0001 21 22 x 82.5 mm ⅞" x 3¼"
Retainer type Latch
Manufacturer RMT

What is good about it?

    • Works as a “Pick Hammer” as well as “Digger”
    • Latch retainers ensure quick and easy change of steels
    • Slim and compact design makes it suitable for mining and soft tunnelling applications
    • Good Power to Weight Ratio
    • Heat treated steel component for durability

Where it is used?

  • Most suitable for heavy-duty chipping and breaking jobs
  • Relatively hard concrete in renovation, pile-capping or bridge deck applications
  • Mining and soft tunnelling application
