Spare Parts for RMT 05 P - Chipper

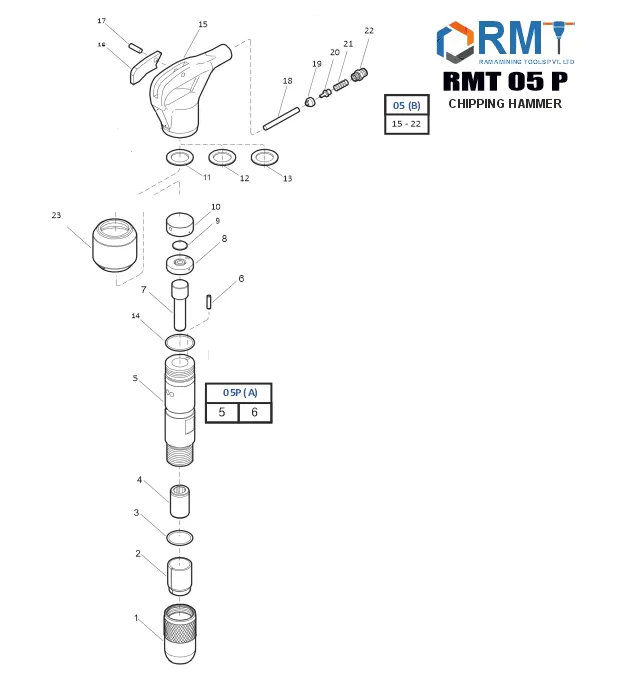

RMT 05 P - Chipper
RMT 05 P - Chipper
Cap
RMT Part #
05P 01
Atlas Part #
3310 1182 00
Cap
Buffer
RMT Part #
05P 02
Atlas Part #
3310 0936 00
Buffer
O-ring
RMT Part #
05P 03
Atlas Part #
-
O-ring
Chuck
RMT Part #
05P 04
Atlas Part #
3310 1183 00
Chuck
Cylinder Complete
RMT Part #
05P (A)
Atlas Part #
3310 1177 90
Cylinder Complete
Cylinder
RMT Part #
05P 05
Atlas Part #
3310 1177 00
Cylinder
Pipe
RMT Part #
05P 06
Atlas Part #
-
Pipe
Piston
RMT Part #
05P 07
Atlas Part #
3310 1178 00
Piston
Cover
RMT Part #
05P 08
Atlas Part #
3310 1179 00
Cover
Main Valve
RMT Part #
05P 09
Atlas Part #
3310 1181 00
Main Valve
Valve Housing
RMT Part #
05P 10
Atlas Part #
3310 1180 00
Valve Housing
Washer
RMT Part #
05P 11
Atlas Part #
3310 1189 02
Washer
Washer
RMT Part #
05P 12
Atlas Part #
3310 1189 04
Washer
Washer
RMT Part #
05P 13
Atlas Part #
3310 1189 06
Washer
O-ring
RMT Part #
05P 14
Atlas Part #
-
O-ring
Backhead Complete
RMT Part #
05P (B)
Atlas Part #
3310 1176 80
Backhead Complete
Backhead
RMT Part #
05P 15
Atlas Part #
-
Backhead
Spring Pin
RMT Part #
05P 17
Atlas Part #
0108 1355 00
Spring Pin
Trigger
RMT Part #
05P 16
Atlas Part #
3310 1129 00
Trigger
Parallel Pin
RMT Part #
05P 18
Atlas Part #
-
Parallel Pin
Inlet Valve
RMT Part #
05P 19
Atlas Part #
-
Inlet Valve
Inlet Valve Rod
RMT Part #
05P 20
Atlas Part #
-
Inlet Valve Rod
Spring
RMT Part #
05P 21
-
Spring
Nipple
RMT Part #
05P 22
Atlas Part #
3310 1185 00
Nipple
Exhaust Deflector
RMT Part #
05P 23
Atlas Part #
3310 1204 00
Exhaust Deflector
Label
Ref Part #
--
Label
Repair Kit
RMT Part #
05P ( C)
Atlas Part #
3310 1208 90
Repair Kit
Label
Ref Part #
--
Label
Data plate
Ref Part #
-
Atlas Part #
-
Data plate
Drive Screw
Ref Part #
-
Atlas Part #
0244 4144 00
Drive Screw
