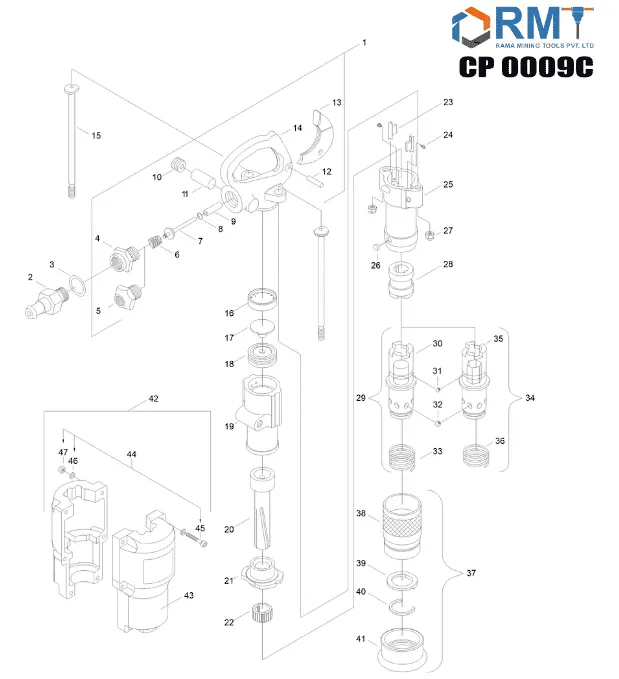

Spare Parts for CP 0009C - Rotary Drill

CP 0009C - Rotary Drill
CP 0009C - Rotary Drill
Handle complete
Ref Part #
F034496
Handle complete
Hose tail
Ref Part #
F064695
Hose tail
Gasket
Ref Part #
F064696
Gasket
Air inlet bushing - 3/8
Ref Part #
F064697
Air inlet bushing - 3/8
Air inlet bushing - 3/8
Ref Part #
R085893
Air inlet bushing - 3/8
Throttle valve spring
Ref Part #
R085596
Throttle valve spring
Throttle valve
Ref Part #
R086329
Throttle valve
O-ring
Ref Part #
R086098
O-ring
Throttle valve bushing
Ref Part #
R085599
Throttle valve bushing
Oil plug
Ref Part #
C077941
Oil plug
Oil chamber felt
Ref Part #
R085895
Oil chamber felt
Throttle lever pin
Ref Part #
A043627
Throttle lever pin
Throttle lever
Ref Part #
F027853
Throttle lever
Handle
Ref Part #
-
Handle
Through bolt
Ref Part #
F034249
Through bolt
Rear valve seat
Ref Part #
R085896
Rear valve seat
Valve
Ref Part #
R085897
Valve
Front valve seat
Ref Part #
R085898
Front valve seat
Cylinder
Ref Part #
R085886
Cylinder
Piston
Ref Part #
F816122
Piston
Cylinder bushing
Ref Part #
R085887
Cylinder bushing
Ratchet ring
Ref Part #
F816123
Ratchet ring
Pawl
Ref Part #
F034066
Pawl
Pawl spring
Ref Part #
R085890
Pawl spring
Fronthead
Ref Part #
R136592
Fronthead
Ball retainer plug
Ref Part #
F061888
Ball retainer plug
Through bolt nut
Ref Part #
S013073
Through bolt nut
Chuck sleeve
Ref Part #
R085900
Chuck sleeve
Round chuck complete
Ref Part #
Z8366412
Round chuck complete
Chuck - Round
Ref Part #
F826892
Chuck - Round
Chuck retainer ball
Ref Part #
-
Chuck retainer ball
Steel retainer ball
Ref Part #
-
Steel retainer ball
Retainer sleeve spring
Ref Part #
R086605
Retainer sleeve spring
Hex chuck complete
Ref Part #
Z8368412
Hex chuck complete
Chuck
Ref Part #
F816159
Chuck
Retainer sleeve spring
Ref Part #
F816162
Retainer sleeve spring
Retainer sleeve
Ref Part #
Z8375412
Retainer sleeve
Retainer
Ref Part #
-
Retainer
Retainer plate
Ref Part #
F826683
Retainer plate
Retainer ring
Ref Part #
F826893
Retainer ring
Dust excluder
Ref Part #
F815343
Dust excluder
Muffler complete
Ref Part #
F826972
Muffler complete
Muffler
Ref Part #
-
Muffler
Muffler Screw Set
Ref Part #
Z3631412
Muffler Screw Set
Capscrew
Ref Part #
-
Capscrew
Washer
Ref Part #
-
Washer
Nut
Ref Part #
-
Nut
