Spare Parts for TEX 10 PS - Pick Hammer

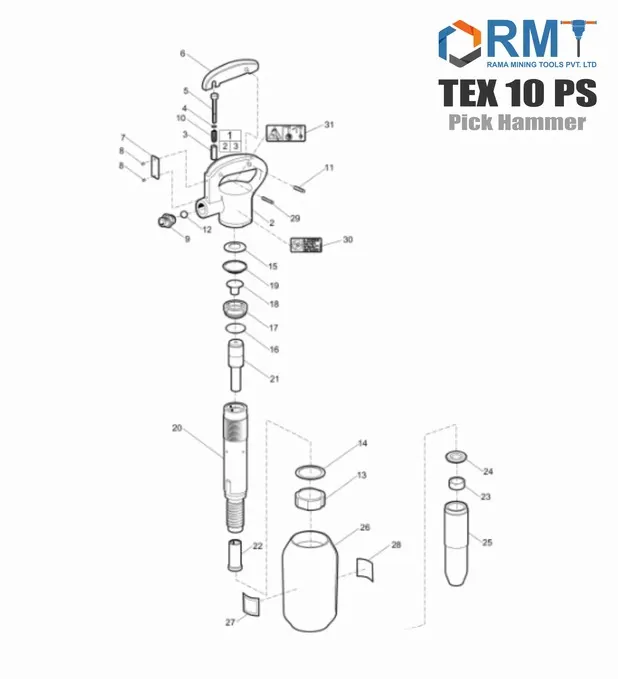

TEX 10 PS - Pick Hammer
TEX 10 PS - Pick Hammer
Handle Complete
Ref Part #
3362 2600 13
Handle Complete
Handle
Ref Part #
-
Handle
Bushing
Ref Part #
3360 3126 61
Bushing
O - Ring
Ref Part #
0663 9136 00
O - Ring
Valve Stem
Ref Part #
3360 1644 85
Valve Stem
Trigger
Ref Part #
3360 1644 86
Trigger
Data Plate
Ref Part #
-
Data Plate
Screw
Ref Part #
0244 4144 00
Screw
Nipple
Ref Part #
9000 0343 00
Nipple
Spring
Ref Part #
3310 1379 00
Spring
Spring Pin
Ref Part #
0108 1357 00
Spring Pin
Ball
Ref Part #
3310 1380 00
Ball
Nut
Ref Part #
3361 8546 10
Nut
Lock Washer
Ref Part #
3362 2644 44
Lock Washer
Disc Spring
Ref Part #
0384 3437 00
Disc Spring
O - Ring
Ref Part #
0663 2101 55
O - Ring
Valve Housing
Ref Part #
3360 9913 22
Valve Housing
Main Valve
Ref Part #
3360 1646 84
Main Valve
Cover
Ref Part #
3362 2600 10
Cover
Cylinder
Ref Part #
3362 2600 06
Cylinder
Piston
Ref Part #
3360 9231 04
Piston
Tool Chuck
Ref Part #
3360 1644 80
Tool Chuck
Buffer
Ref Part #
3360 1645 46
Buffer
Stop Ring
Ref Part #
3362 2643 92
Stop Ring
Cap
Ref Part #
3360 1871 85
Cap
Silencer
Ref Part #
3310 1345 00
Silencer
Label
RMT Part #
Original only
OEM Part #
0690 1356 00
Label
Sound Power Label
RMT Part #
Original only
OEM Part #
-
Sound Power Label
Spring Pin
RMT Part #
Original only
OEM Part #
0108 1298 00
Spring Pin
Safety Label
RMT Part #
Original only
OEM Part #
3310 1602 00
Safety Label
Eject Warning Label
RMT Part #
Original only
OEM Part #
3310 1572 00
Eject Warning Label
