Spare Parts for LH 400 E Hydraulic Rock Breaker

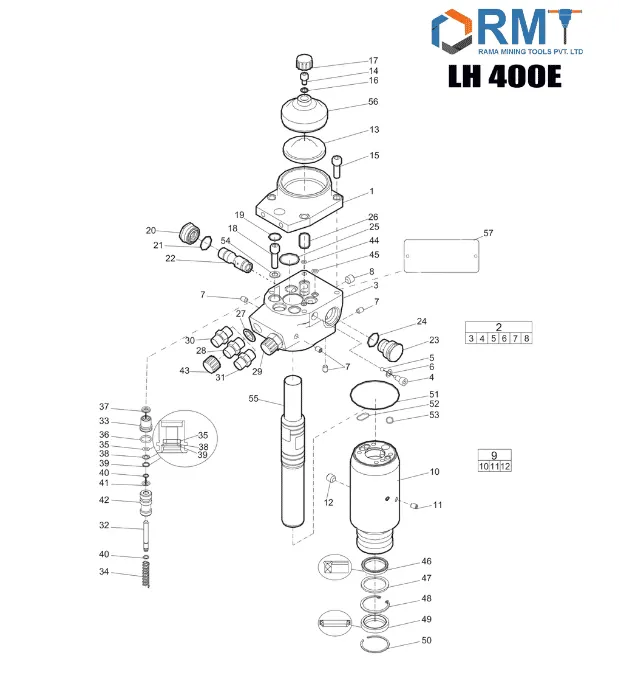

LH 400 E Hydraulic Rock Breaker
LH 400 E Hydraulic Rock Breaker
Accumulator body
Ref Part #
3371 8210 27
Accumulator body
Valve housing, complete
Ref Part #
3371 8210 25
Valve housing, complete
Valve housing
Ref Part #
-
Valve housing
Check valve screw
Ref Part #
3371 8202 62
Check valve screw
Ball
Ref Part #
3371 8207 17
Ball
Seal ring
Ref Part #
3371 8207 18
Seal ring
Fitting
Ref Part #
3371 8147 33
Fitting
Fitting
Ref Part #
3371 8131 41
Fitting
Cylinder, complete
Ref Part #
3371 8210 30
Cylinder, complete
Cylinder
Ref Part #
-
Cylinder
Diaphragm
Ref Part #
3371 8140 52
Diaphragm
Charging screw
Ref Part #
3371 8131 03
Charging screw
Screw
Ref Part #
3371 8177 20
Screw
Seal ring
Ref Part #
3371 8147 09
Seal ring
Protective cap
Ref Part #
3371813710
Protective cap
Screw
Ref Part #
3371 8147 23
Screw
O-ring
Ref Part #
3371 8207 03
O-ring
Spool socket
Ref Part #
3371 8202 67
Spool socket
O-ring
Ref Part #
3371 8207 02
O-ring
Spool
Ref Part #
3371 8202 65
Spool
Guide socket
Ref Part #
3371 8202 66
Guide socket
O-ring
Ref Part #
3371 8207 62
O-ring
O-ring
Ref Part #
3371 8207 04
O-ring
O-ring
Ref Part #
3371 8207 05
O-ring
Seal ring
Ref Part #
3371 8057 14
Seal ring
Nipple
Ref Part #
3371 8057 11
Nipple
Nipple
Ref Part #
3371 8181 20
Nipple
Nipple
Ref Part #
3371 8180 13
Nipple
Trigger rod
Ref Part #
3371 8201 36
Trigger rod
Packing gland
Ref Part #
3371 8141 20
Packing gland
Spring
Ref Part #
3371 8201 37
Spring
O-ring
Ref Part #
3371 8147 00
O-ring
O-ring
Ref Part #
3371 8147 02
O-ring
Seal
Ref Part #
3371 8055 03
Seal
Back-up ring
Ref Part #
3371 8147 01
Back-up ring
Circlip
Ref Part #
3371 8147 12
Circlip
Circlip
Ref Part #
3371 8147 32
Circlip
Shim
Ref Part #
3371 8207 00
Shim
Trigger spool
Ref Part #
3371 8201 08
Trigger spool
Protective cap
Ref Part #
3371 8137 09
Protective cap
O-ring
Ref Part #
3371 8177 57
O-ring
O-ring
Ref Part #
3376 1000 84
O-ring
Seal
Ref Part #
3371 8207 49
Seal
Back-up washer
Ref Part #
3371 8202 60
Back-up washer
Lock ring
3371 8207 50
Lock ring
Wiper
Ref Part #
3371 8207 52
Wiper
Lock ring
Ref Part #
3371 207 51
Lock ring
O-ring
Ref Part #
3371 8207 25
O-ring
O-ring
Ref Part #
3371 8207 48
O-ring
O-ring
Ref Part #
3371 8147 49
O-ring
Back-up washer
Ref Part #
3371 8157 35
Back-up washer
Piston
Ref Part #
3371 8202 48
Piston
Accumulator cover
Ref Part #
3371 8140 66
Accumulator cover
