Spare Parts for LH 190 E - Hydraulic Rock Breaker

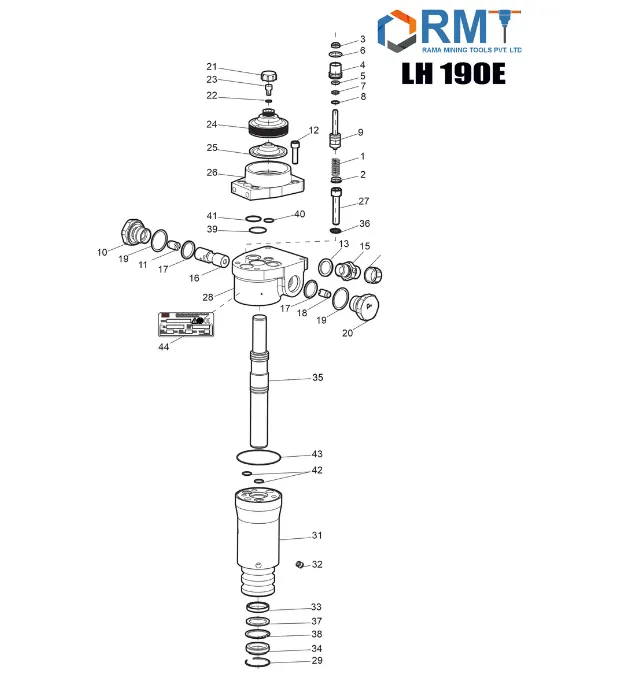

LH 190 E - Hydraulic Rock Breaker
LH 190 E - Hydraulic Rock Breaker
Spring
Ref Part #
3371 8141 63
Spring
Washer
Ref Part #
3371 8147 52
Washer
Seal
Ref Part #
3371 8055 03
Seal
Packing gland
Ref Part #
3371 8141 20
Packing gland
O-ring
Ref Part #
3371 8147 00
O-ring
O-ring
Ref Part #
3371 8147 02
O-ring
Back-up ring
Ref Part #
3371 8147 01
Back-up ring
Circlip
Ref Part #
3371 8147 12
Circlip
Trigger spool with rod
Ref Part #
3371 8200 71
Trigger spool with rod
Guide socket T
Ref Part #
3371 8141 16
Guide socket T
Auxiliary spool T
Ref Part #
3371 8141 15
Auxiliary spool T
Screw
Ref Part #
3371 8147 23
Screw
Seal ring
Ref Part #
3371 8057 14
Seal ring
Protective cap
Ref Part #
3371 8137 09
Protective cap
Nipple
Ref Part #
3371 8057 11
Nipple
Spool
Ref Part #
3371 8141 12
Spool
O-ring
Ref Part #
3371 8147 03
O-ring
Auxiliary spool P
Ref Part #
3371 8141 13
Auxiliary spool P
O-ring
Ref Part #
3371 8147 10
O-ring
Guide socket P
Ref Part #
3371 8141 14
Guide socket P
Protective nut
Ref Part #
3376 1170 71
Protective nut
Seal ring
Ref Part #
3371 8147 09
Seal ring
Charging screw
Ref Part #
3371 8131 03
Charging screw
Accumulator cover
Ref Part #
3371 8140 66
Accumulator cover
Diaphragm
Ref Part #
3371 8140 52
Diaphragm
Accumulator body
Ref Part #
3371 8150 65
Accumulator body
Screw
Ref Part #
3371 8157 20
Screw
Valve housing
Ref Part #
3371 8140 63
Valve housing
Lock ring
Ref Part #
3371 8157 38
Lock ring
Cylinder complete
Ref Part #
3371 8150 66
Cylinder complete
Cylinder
Ref Part #
-
Cylinder
Fitting
Ref Part #
3371 8147 33
Fitting
Seal
Ref Part #
3371 8141 72
Seal
Wiper
Ref Part #
3371 8147 07
Wiper
Piston
Ref Part #
3371 8141 25
Piston
Back-up washer
Ref Part #
3371 8157 35
Back-up washer
Back-up washer
Ref Part #
3371 8141 69
Back-up washer
Circlip
Ref Part #
3371 8147 54
Circlip
O-ring
Ref Part #
3371 8147 48
O-ring
O-ring
Ref Part #
3371 8147 49
O-ring
