Spare Parts for SBL 06 Scabbler

SBL 06 Scabbler
SBL 06 Scabbler
Cap screw | F826516
Ref Part #
F826516
Cap screw | F826516

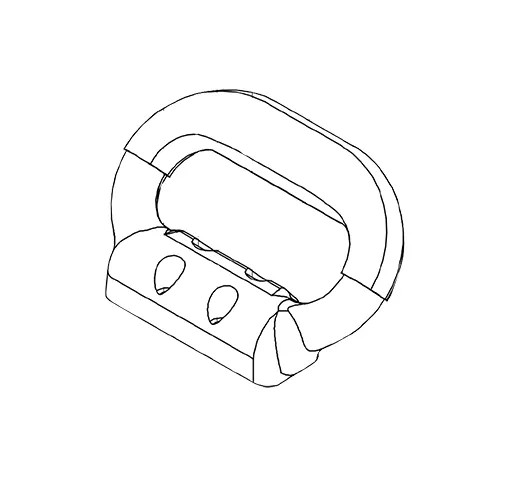

Handle - Cylinder | 3310 1024 66
Ref Part #
3310 1024 66
Handle - Cylinder | 3310 1024 66

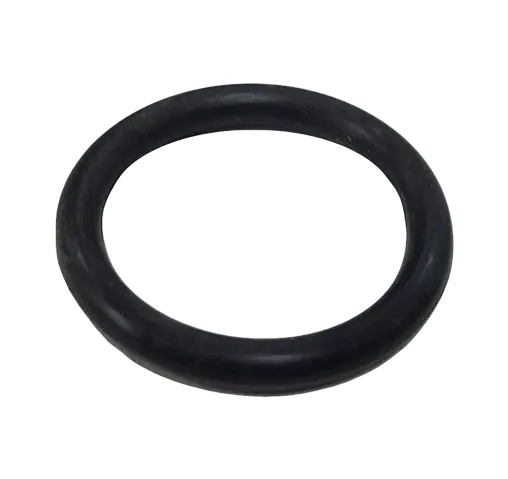

O - Ring | A082759
Ref Part #
A082759
O - Ring | A082759

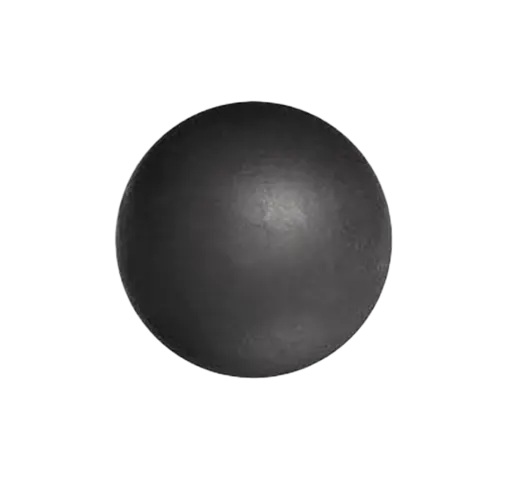

Ball valve | F061776
Ref Part #
F061776
Ball valve | F061776
Cylinder cap | F826706
Ref Part #
F826706
Cylinder cap | F826706
Piston | F064604
Ref Part #
F064604
Piston | F064604
Cylinder, complete | 3310 1024 65
Ref Part #
3310 1024 65
Cylinder, complete | 3310 1024 65
Cylinder bushing | F826808
Ref Part #
F826808
Cylinder bushing | F826808
Cylinder
Ref Part #
--
Cylinder
Locknut | F064909
Ref Part #
F064909
Locknut | F064909
Handle - Bent | F064668
Ref Part #
F064668
Handle - Bent | F064668
Bushing - Reducer | F826506
Ref Part #
F826506
Bushing - Reducer | F826506
Throttle body, complete | 3310 1024 67
Ref Part #
3310 1024 67
Throttle body, complete | 3310 1024 67
Pin - lever | P001921
Ref Part #
P001921
Pin - lever | P001921
Lever - Valve | P001903
Ref Part #
P001903
Lever - Valve | P001903
Body - Throttle valve, complete | 3310 1024 68
Ref Part #
3310 1024 68
Body - Throttle valve, complete | 3310 1024 68
Body - Throttle
Ref Part #
--
Body - Throttle
Throttle valve bushing | P001814
Ref Part #
P001814
Throttle valve bushing | P001814
Valve - Throttle, complete | P087671
Ref Part #
P087671
Valve - Throttle, complete | P087671
Throttle valve
Ref Part #
-
Throttle valve
O - Ring | CA088867
Ref Part #
CA088867
O - Ring | CA088867
Compression ring | P001858
Ref Part #
P001858
Compression ring | P001858
Cap valve screw | P001964
Ref Part #
P001964
Cap valve screw | P001964
Bushing - airinlet | P001995
Ref Part #
P001995
Bushing - airinlet | P001995
Data plate
Ref Part #
--
Data plate
Drive screw | 0244 4144 00
Ref Part #
0244 4144 00
Drive screw | 0244 4144 00
Safety Label | 3310 1602 00
Ref Part #
3310 1602 00
Safety Label | 3310 1602 00
Product decal | 3310 1028 95
Ref Part #
3310 1028 95
Product decal | 3310 1028 95
