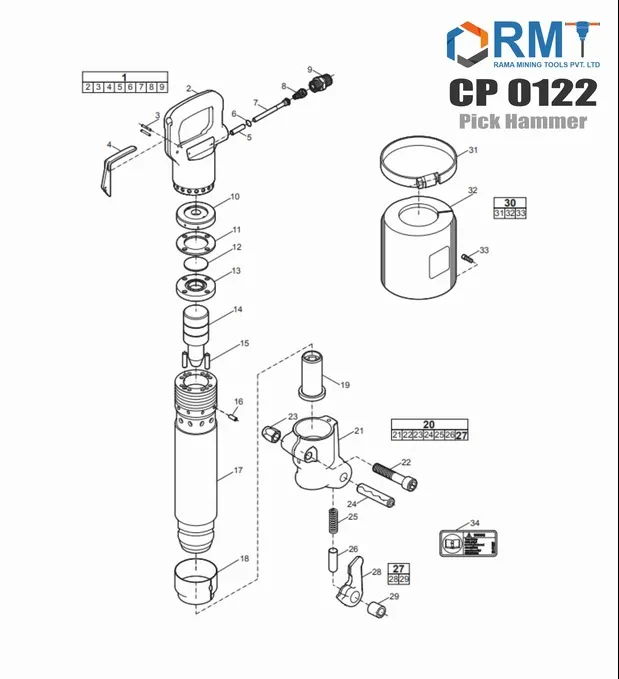

Spare Parts for CP 0122 - Pick Hammer

CP 0122 - Pick Hammer
CP 0122 - Pick Hammer
Handle - complete
Ref Part #
3303 0051 00
Handle - complete
Handle
Ref Part #
-
Handle
Pin - Throttle Lever
Ref Part #
R133 757
Pin - Throttle Lever
Lever - Throttle
Ref Part #
F815 167
Lever - Throttle
Bushing - Throttle Valve
Ref Part #
P144 656
Bushing - Throttle Valve
O - Ring - Throttle Valve
Ref Part #
P083 071
O - Ring - Throttle Valve
Valve - Throttle
Ref Part #
P144 202
Valve - Throttle
Spring Throttle Valve
Ref Part #
C077 054
Spring Throttle Valve
Nipple with gauze
Ref Part #
F035 769
Nipple with gauze
Upper Valve Case Lid
Ref Part #
F012657
Upper Valve Case Lid
Valve Case
Ref Part #
F012 658
Valve Case
Valve
Ref Part #
F012 659
Valve
Lower Valve Case Lid
Ref Part #
F012 656
Lower Valve Case Lid
Piston
Ref Part #
F026 357
Piston
Dowel Pin
Ref Part #
F012 670
Dowel Pin
Handle Lock Pin
Ref Part #
F001 919
Handle Lock Pin
Cylinder
Ref Part #
-
Cylinder
Retainer Locking Ring
Ref Part #
F035 269
Retainer Locking Ring
Exhaust deflector
Ref Part #
F012 747
Exhaust deflector
Tool Bushing
Ref Part #
F814 164
Tool Bushing
Buffer
Ref Part #
H230 4427
Buffer
Retainer
Ref Part #
C880 6427
Retainer
Muffler, complete
Ref Part #
F814 201
Muffler, complete
Hose clamp
Ref Part #
P052 726
Hose clamp
Muffler
Ref Part #
-
Muffler
Screw
Ref Part #
R140 630
Screw
Safety Label
Ref Part #
CA14 4007
Safety Label
