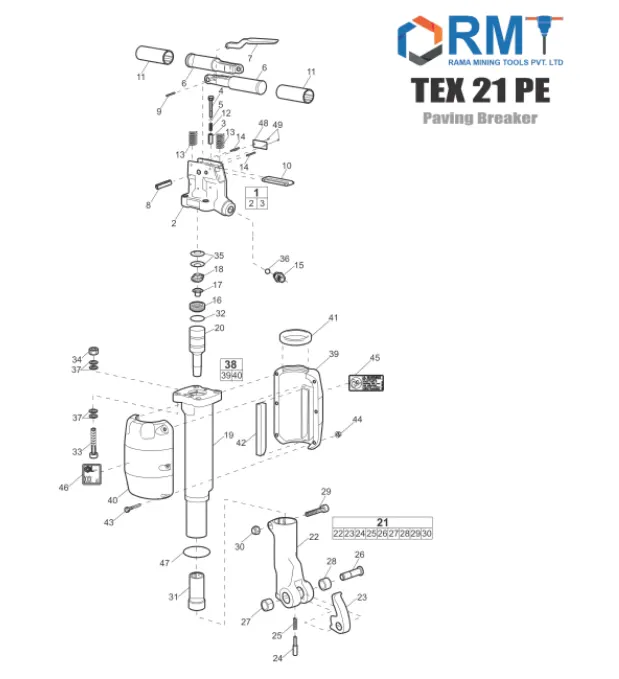

Spare Parts for TEX 21 PE - Pneumatic Breaker

TEX 21 PE - Pneumatic Breaker
TEX 21 PE - Pneumatic Breaker
Backhead Complete
Ref Part #
3363 0843 41
Backhead Complete
Backhead
Ref Part #
--
Backhead
Bushing
Ref Part #
3360 3126 61
Bushing
Valve Stem
Ref Part #
3363 0843 46
Valve Stem
O - Ring
Ref Part #
0663 9136 00
O - Ring
Handle
Ref Part #
3363 0843 42
Handle
Trigger
Ref Part #
3363 0843 44
Trigger
Spring Pin
Ref Part #
0108 1691 76
Spring Pin
Spring Pin
Ref Part #
0108 1328 00
Spring Pin
Cover
Ref Part #
3363 0843 50
Cover
Sleeve
Ref Part #
3360 9802 68
Sleeve
Spring
Ref Part #
3363 0843 52
Spring
Spring
Ref Part #
3363 0843 54
Spring
Spring Pin
Ref Part #
0108 1306 00
Spring Pin
Nipple
Ref Part #
9000 0343 00
Nipple
Valve Housing
Ref Part #
3360 1646 47
Valve Housing
Main Valve
Ref Part #
3360 1646 84
Main Valve
Cover
Ref Part #
3360 1646 33
Cover
Cylinder
Ref Part #
3360 1646 37
Cylinder
Piston
Ref Part #
3360 1646 38
Piston
Fronthead Complete
Ref Part #
3360 0705 92
Fronthead Complete
Fronthead
Ref Part #
3360 1646 36
Fronthead
Tool Retainer
Ref Part #
3360 9949 46
Tool Retainer
Plunger
Ref Part #
3360 3125 25
Plunger
Spring
Ref Part #
3360 1640 37
Spring
Pin
Ref Part #
3360 3125 23
Pin
Bushing Right
Ref Part #
3360 1646 90
Bushing Right
Bushing Left
Ref Part #
3360 1646 89
Bushing Left
Screw
Ref Part #
0211 5161 86
Screw
Lock Nut
Ref Part #
0292 1408 00
Lock Nut
Tool Chuck
Ref Part #
3360 1645 97
Tool Chuck
O - Ring
Ref Part #
0663 2112 19
O - Ring
Screw
Ref Part #
0211 5161 85
Screw
Nut
Ref Part #
0268 4108 00
Nut
Disk Spring
Ref Part #
0384 3437 00
Disk Spring
Ball
Ref Part #
3310 1380 00
Ball
Lock Washer
Ref Part #
3315 0195 08
Lock Washer
Silencer Complete
Ref Part #
3310 1344 00
Silencer Complete
Silencer (Front)
Ref Part #
--
Silencer (Front)
Silencer (Rear)
Ref Part #
--
Silencer (Rear)
O - Ring
Ref Part #
0663 2115 14
O - Ring
Flange Screw
Ref Part #
0147 1976 05
Flange Screw
Flange Nut
Ref Part #
9232 0207 50
Flange Nut
Safety Label
Ref Part #
3310 1602 00
Safety Label
Noise level label
Ref Part #
--
Noise level label
O - Ring
Ref Part #
0663 2115 95
O - Ring
Data plate
Ref Part #
--
Data plate
Screw
Ref Part #
0244 4144 00
Screw
