Spare Parts for TEX 15 P - Rivet Buster

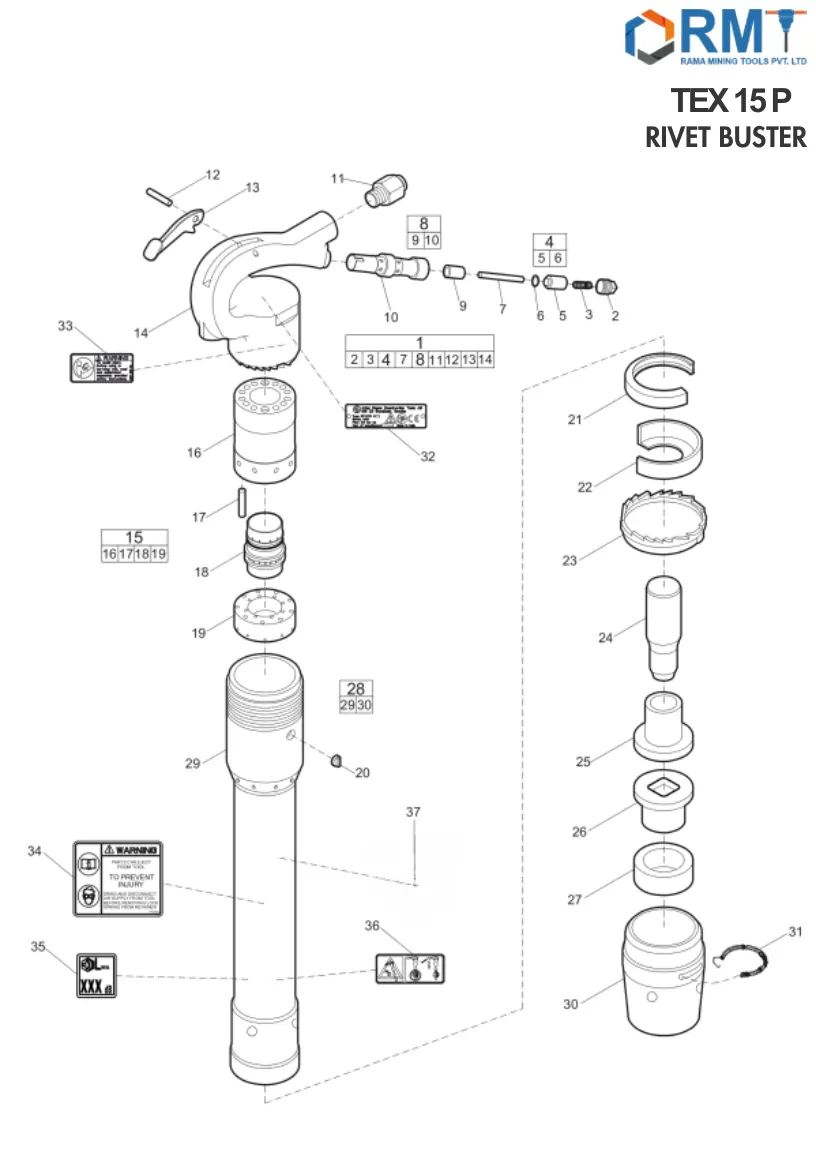

TEX 15 P - Rivet Buster
TEX 15 P - Rivet Buster
Handle complete
Ref Part #
3310 1024 79
Handle complete
Plug - Throttle valve | P001873
Ref Part #
P001873
Plug - Throttle valve | P001873
Spring - Throttle valve | P001853
Ref Part #
P001853
Spring - Throttle valve | P001853
Valve - Throttle, complete | P001799
Ref Part #
P001799
Valve - Throttle, complete | P001799
Valve - Throttle
Ref Part #
-
Valve - Throttle
O - Ring | P083071
Ref Part #
P083071
O - Ring | P083071
Pin - Push | P004834
Ref Part #
P004834
Pin - Push | P004834

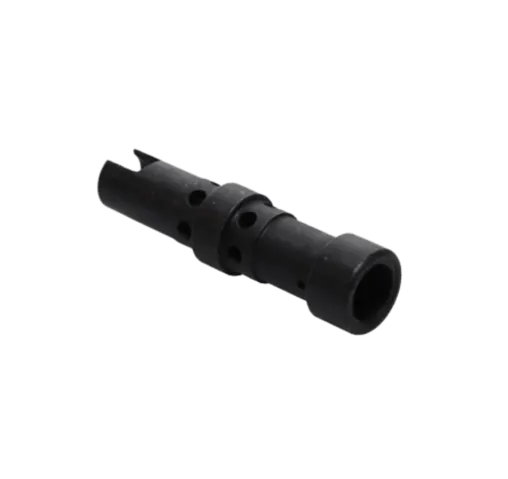

Tube - Throttle, complete | P007325
Ref Part #
P007325
Tube - Throttle, complete | P007325
Bushing | P004839
Ref Part #
P004839
Bushing | P004839

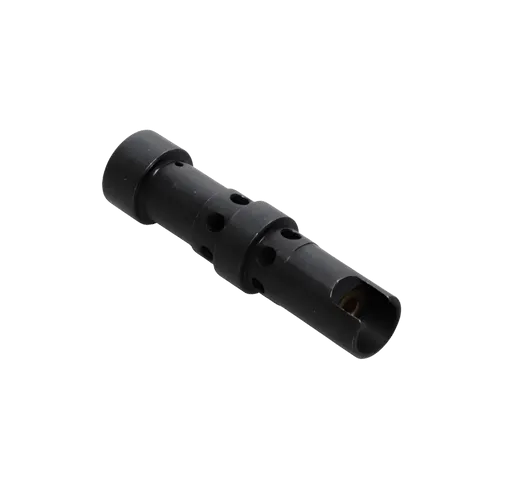

Tube - Throttle
Ref Part #
--
Tube - Throttle
Bushing - Air inlet | P001995
Ref Part #
P001995
Bushing - Air inlet | P001995
Pin - Lever | P001915
Ref Part #
P001915
Pin - Lever | P001915
Lever - Throttle | P001982
Ref Part #
P001982
Lever - Throttle | P001982

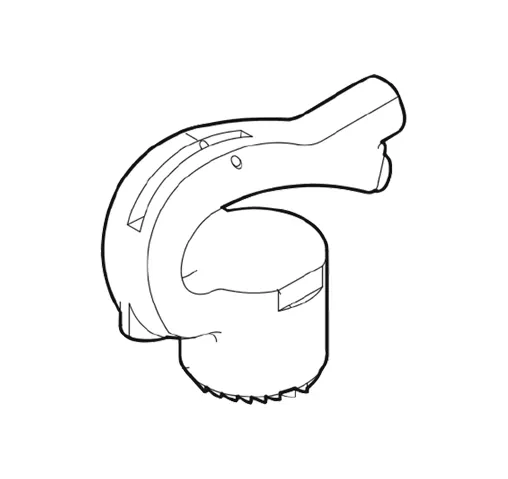

Handle
Ref Part #
-
Handle
Valve complete | P007385
Ref Part #
P007385
Valve complete | P007385
Case-valve | P006319
Ref Part #
P006319
Case-valve | P006319
Dowel | 3303005086
Ref Part #
3303005086
Dowel | 3303005086
Valve | P001538
Ref Part #
P001538
Valve | P001538
Lid-valve case | P006320
Ref Part #
P006320
Lid-valve case | P006320
Key-lock sleeve | P001430
Ref Part #
P001430
Key-lock sleeve | P001430
Lock sleeve spring clip | P001355
Ref Part #
P001355
Lock sleeve spring clip | P001355
Exhaust deflector | P001389
Ref Part #
P001389
Exhaust deflector | P001389

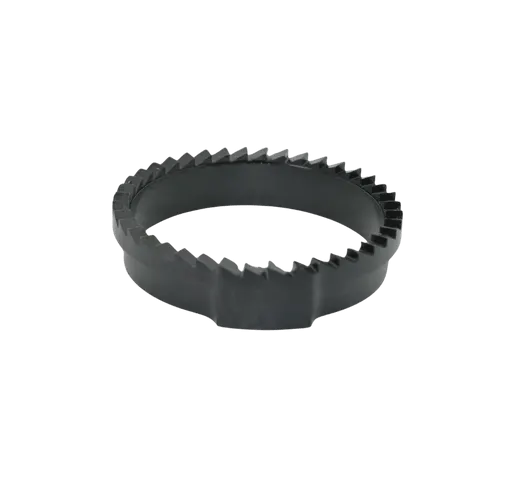

Collar-lock | P001399
Ref Part #
P001399
Collar-lock | P001399
Piston | 3303005094
Ref Part #
3303005094
Piston | 3303005094
Sleeve upper | P156988
Ref Part #
P156988
Sleeve upper | P156988
Lower sleeve | P072333
Ref Part #
P072333
Lower sleeve | P072333
Bumper | 3303005103
Ref Part #
3303005103
Bumper | 3303005103
Cylinder, complete | 3303005380
Ref Part #
3303005380
Cylinder, complete | 3303005380
Cylinder
Ref Part #
-
Cylinder

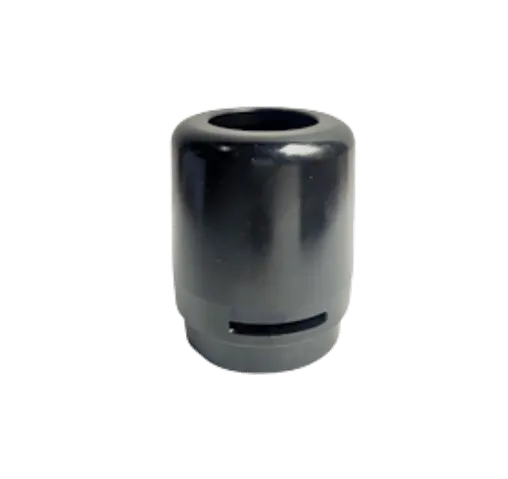

Retainer | 3303005340
Ref Part #
3303005340
Retainer | 3303005340
Spring-lock | P073942
Ref Part #
P073942
Spring-lock | P073942
