Spare Parts for RMT 73 - Chipper

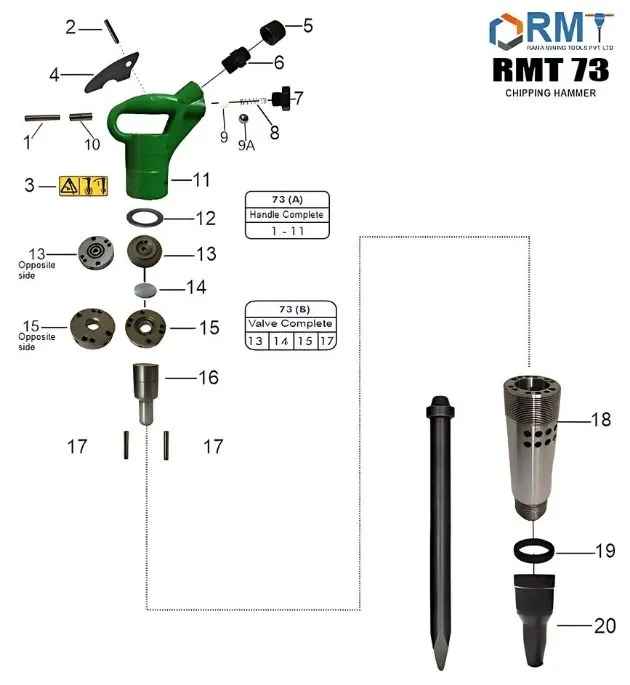

RMT 73 - Chipper
RMT 73 - Chipper
Push Pin (Valve Pusher)
RMT Part #
73 01
Ref Part #
D6325 - 006060
Push Pin (Valve Pusher)
Throttle Lever Pin
RMT Part #
73 02
Ref Part #
-
Throttle Lever Pin
Warning Sticker
RMT Part #
73 03
Ref Part #
-
Warning Sticker
Throttle Lever
RMT Part #
73 04
Ref Part #
400033
Throttle Lever
Cap of Air Inlet 3/4"
RMT Part #
73 05
Ref Part #
013339
Cap of Air Inlet 3/4"
Air Inlet 3/4"
RMT Part #
73 06
Ref Part #
401035
Air Inlet 3/4"
Stop Plug 1/2"
RMT Part #
73 07
Ref Part #
400036
Stop Plug 1/2"
Push Spring of Ball
RMT Part #
73 08
Ref Part #
400185
Push Spring of Ball
Ball - Admission (PU)
RMT Part #
73 09
Ref Part #
-
Ball - Admission (PU)
Ball - Admission (Metal) Opt
RMT Part #
73 9A
Ref Part #
000007
Ball - Admission (Metal) Opt
Guide Bushing
RMT Part #
73 10
Ref Part #
400037
Guide Bushing
Handle (Bare)
RMT Part #
73 11
Ref Part #
470422
Handle (Bare)
Handle Retention Washer
RMT Part #
73 12
Ref Part #
400042
Handle Retention Washer
Distributor Plate (Upper)
RMT Part #
73 13
Ref Part #
400038
Distributor Plate (Upper)
Valve - Aluminum (Pallet)
RMT Part #
73 14
Ref Part #
400027
Valve - Aluminum (Pallet)
Distributor Box (Lower)
RMT Part #
73 15
Ref Part #
400040
Distributor Box (Lower)
Piston
RMT Part #
73 16
Ref Part #
400044
Piston
Dowel Pin
RMT Part #
73 17
Ref Part #
400041
Dowel Pin
Cylinder
RMT Part #
73 18
Ref Part #
400043
Cylinder
Rubber Washer of Retainer & Cylinder
RMT Part #
73 19
Ref Part #
400048
Rubber Washer of Retainer & Cylinder
Retainer
RMT Part #
73 20
Ref Part #
438212
Retainer
Handle Complete (1 - 11)
RMT Part #
73 A
Ref Part #
493192
Handle Complete (1 - 11)
Valve Complete (13 - 15,17)
RMT Part #
73 B
Ref Part #
-
Valve Complete (13 - 15,17)
